5-4
Component Parts – Removal & Replacement Section 5

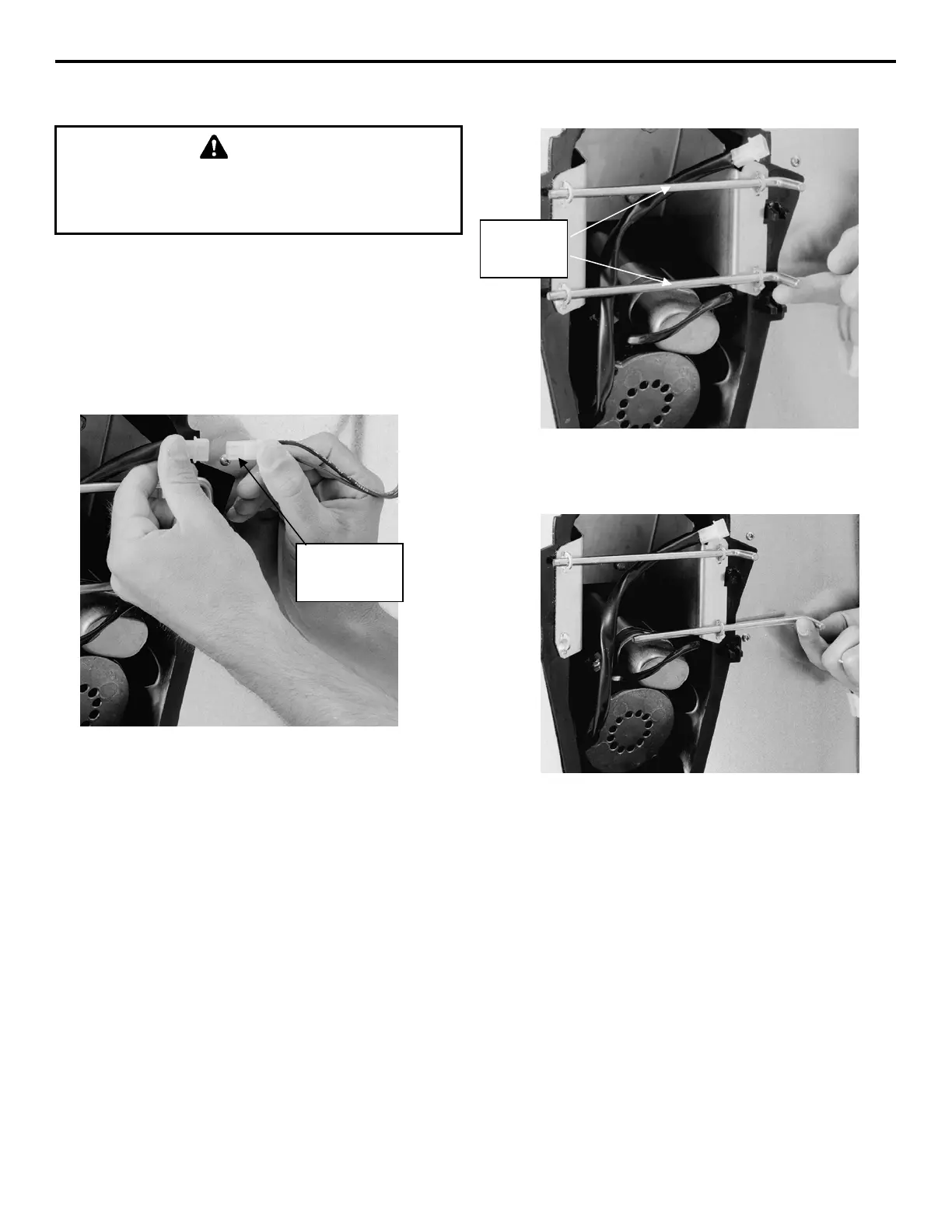

Removal of the Gearmotor
WARNING
Unplug unit before servicing or cleaning.
Electric Shock Hazard.
1 Remove the front panel from dispenser. (See
pages 4-1 and 4-2.)
2 Remove paddle wheel pin, agitator, and paddle
wheel. (See pages 4-5 and 4-6.)
3 Unplug the gearmotor wire.
4 Turn the two removal pins toward you as shown
in photo.
5 Pull removal pins out to the right.
Removal
pins
Gearmotor
wire
To Next Page
