102 Part Number 000007661 6/13

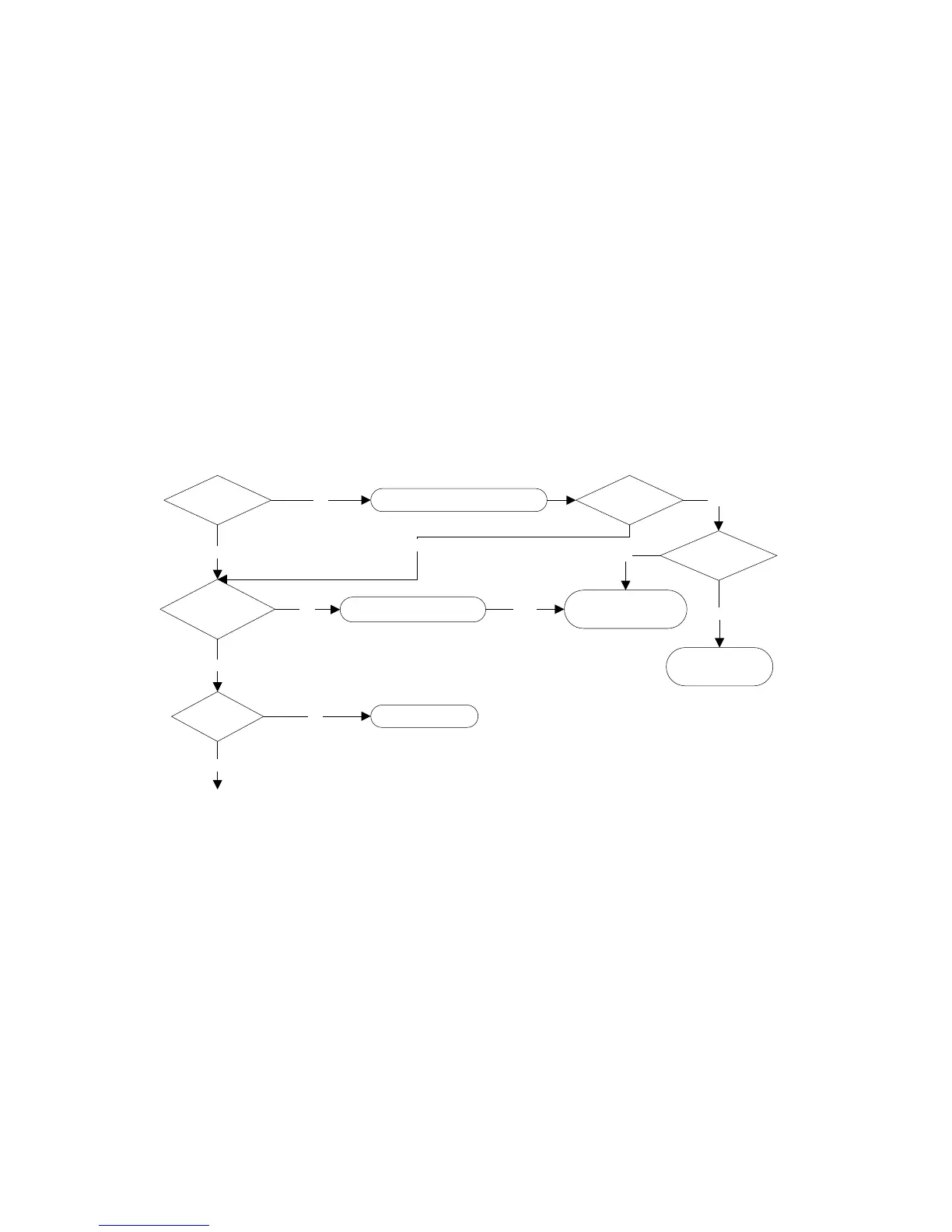

ELECTRICAL DIAGNOSTIC FLOWCHART
Power Supplied
to Ice Machine?
Toggle Switch In
ON Position?
Move Switch To ON Position
Restore Power, Reset BreakerNO
NO
YES
Electrical Flowchart –RF23005)6 Air & Water
Switch
Illuminated?
NO
YES
Replace Switch
Immediately
Trips?
Yes
Ohm Compressor
Crankcase Heater
And Toggle Switch
Yes
No
Toggle Switch In
Off Position?
Isolate And Ohm Each
Component - Then Each
Wire If Required
Yes
No
Trips
