2

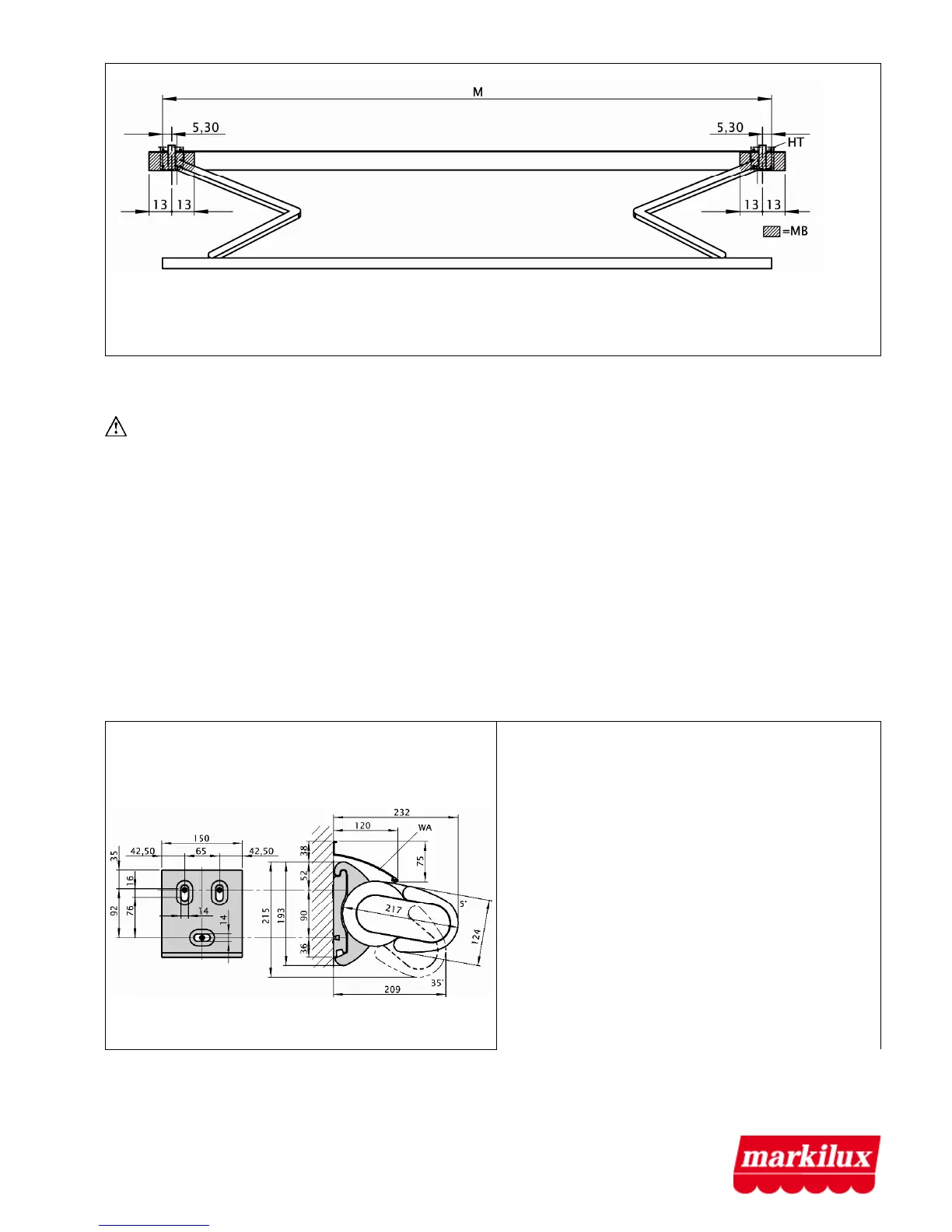

2 Folding arms
M = Awning width
MB = Mounting area bracket (concentric bracket depending on size)
HT = bracket
Di-
mensions in cm
3. Mounting systems
Attention!:
Basically the following is applicable for all mounting systems:
1. The mounting material manufacturers (e.g. Fischer, Hilti, Upat, etc.) offer different mounting systems
according to the undersurface. The corresponding withdrawal and/or shearing forces from our sales
documents have to be taken into consideration. If the conditions for the mounting are met according to
DIN EN 13561, the wind resistance class 2 for the mounting can be confirmed to the user.
2. Mounting material is not supplied automatically, as different subsurfaces (e.g. concrete, lime sand
stone, autoclaved aerated concrete etc) require different types of mounting material.
3. IMPORTANT: Mounting brackets have to be aligned with each other! When subsurfaces are uneven, the
clearances are to be checked using a cord pulley and if required compensated accordingly. Due to the
horizontal mounting of the folding-arm awning and the perpendicular fit of the mounting brackets, the
smooth functioning of the folding-arm awning is guaranteed.
3.1 Wall mount
mm
1. Determine mounting height. Mark position of
brackets (see also adjusting range at bracket).
2. Consider mounting material and type of mount-
ing according to undersurface (mounting plate
A or B).
3. Mark the drilled holes and mount the mounting
brackets with the corresponding mounting plate
according to the undersurface. Align the mount-
ing brackets horizontally!
