1. 16 OHM OUTPUT
ORI20 and ORI50 head
Connect a single 16 OHM speaker cabinet
using this socket.
ORI20 combo
Your Celestion V type 10” speaker is
connected here.
ORI50 combo
Your Celestion Midnight 60 12” speaker is
connected here.
2 & 3. 8 OHM OUTPUT
Connect an 8 OHM cabinet using socket
#3, or connect a pair of 16 OHM speaker
cabinets to sockets #2 and #3.
Note: before connecting and
disconnecting speaker loads, always
ensure that the amplier is switched off.
4. DI-OUTPUT
Connect your amplier to an external
recording device or sound desk using this
output socket with added loudspeaker
emulation.
5. FOOT SWITCH
Connect a 2-way foot switch
(PEDL-90016) to control the gain boost
and turn the effects loop on and off.
6. EFFECTS LOOP SEND
Sends your signal to your effects or
outboard processor.
7. EFFECTS LOOP RETURN
Returns your signal from your effects or
outboard processor.
8. MAINS INLET
Connect your amplier to the supplied
mains lead using this socket.
4.0

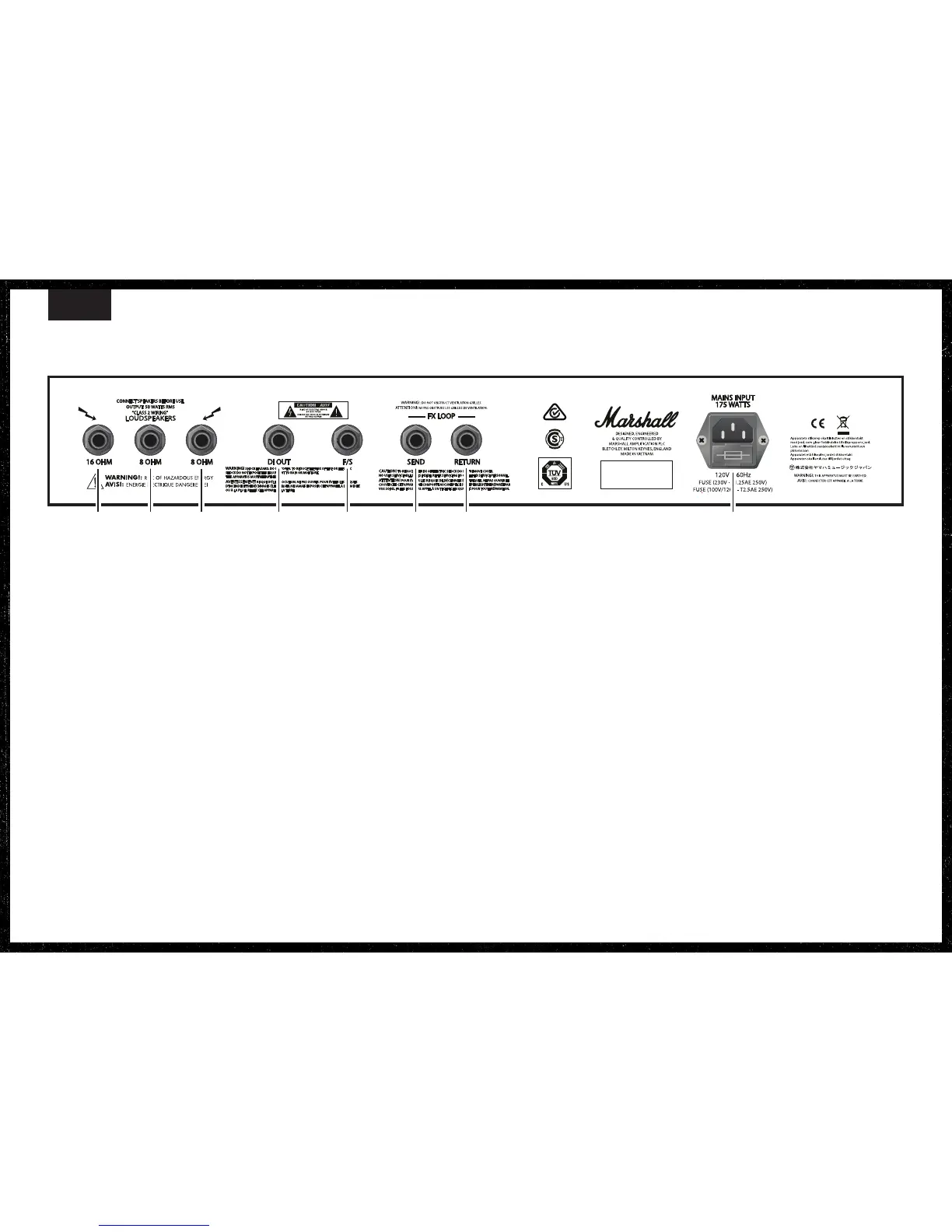

REAR PANEL FUNCTIONS
ENGLISH
7
654321 8
