5
Part
Description
Quantity
A
T
emperature Gauge
1
B
Lid Handle
1
C
Smoke Stack
1
D
Lid
1
E
W
arming Rack
1
F
Cooking Grid
3
G
Charcoal Pan
1
H
Left Side Shelf
1
I
Bottom Bowl
1
J
Charcoal Pan Handle
2
K
Cooking Grid Handle
1
L
Front Shelf
1
M
Leg Brace
2
N
Upper Cart Frame
2
O
Left Leg
2
Part
Description
Quantity
P
Foot*
2
Q
Bottom Mesh
1
R
Wheel Cap
2
S
Axle
1
T
Wheel
2
U
Right Leg
2
V
Damper
1
* Pre-assembled
M6x12
Bolt
Qty:1
1
M8
Screw
Qty:2
M6x20
Bolt
Qty:2
M6x45
Bolt
Qty:18
Ø16x6.2
W
asher
Qty:2
Ø20x10.5
W
asher
Qty:2
M6
Nut
Qty:17
Ø6
Lock W
asher
Qty:2
AA
BB
CC
DD
EE
FF
GG

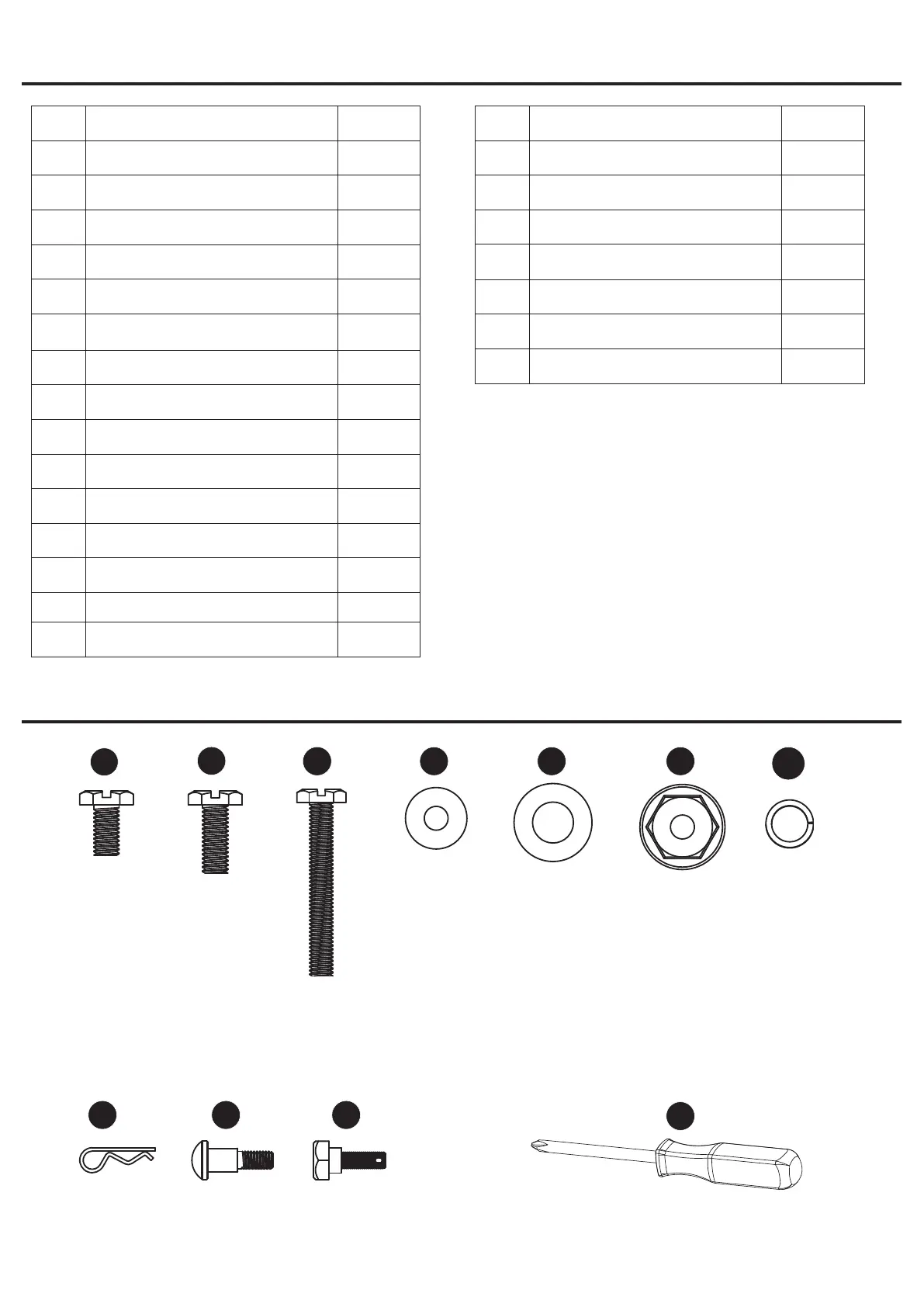

PACKAGE CONTENTS
HARDWARE CONTENTS
HH
II
JJ
Ø1.4x30
Cotter Pin
Qty:4
M6
Screw
Qty:3
#2 Philips Head
Screwdriver
Qty:1
KK
4
6
Table of Contents
