Master Forge CBC23023L User Manual

6

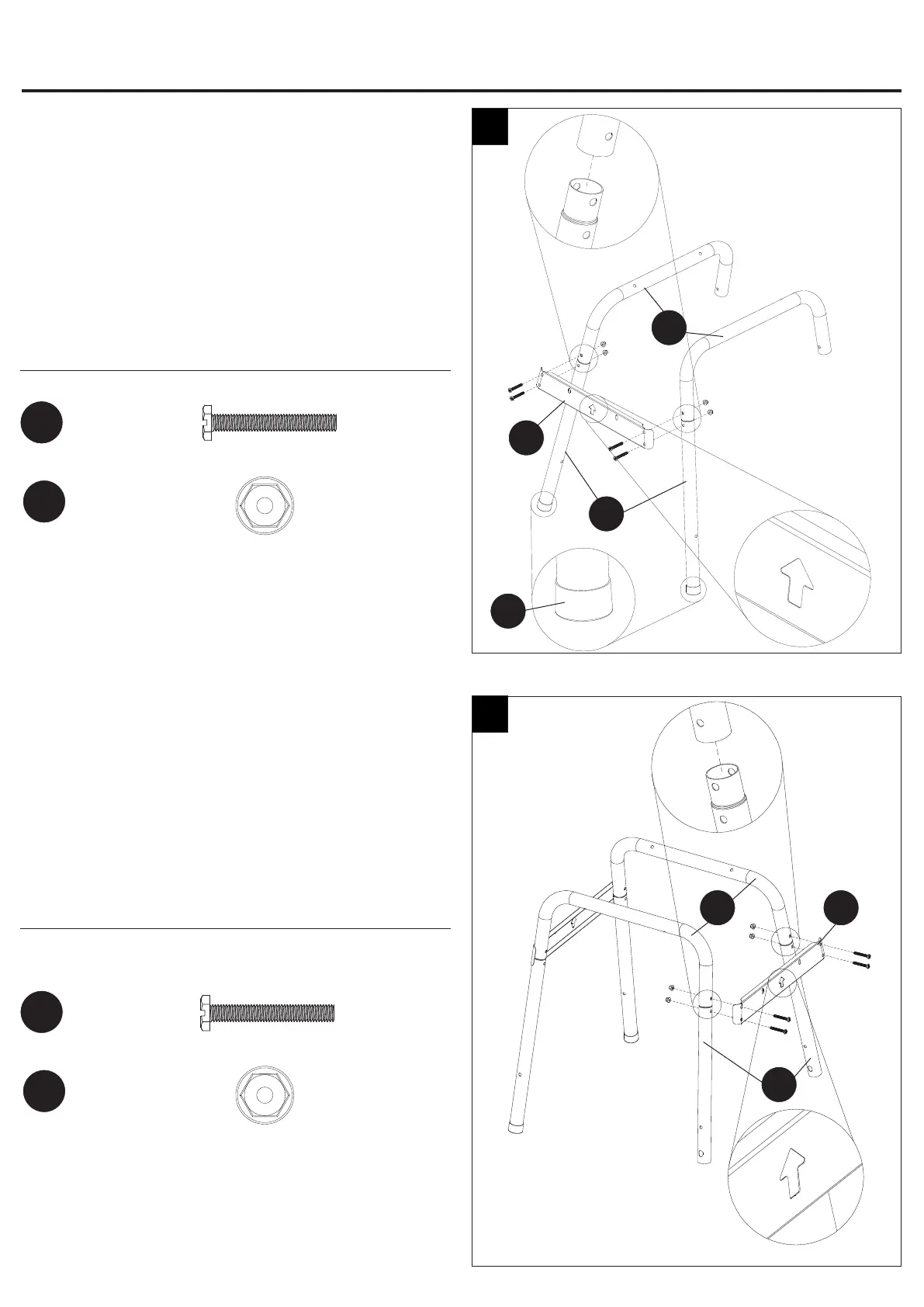

Step 1: Attach Upper Cart Frame, Left Legs and
Leg Brace
Align the holes in the upper cart frames (N), left legs
(O) and leg brace (M). Then attach them together with
four M6x45 bolts (CC) and four M6 nuts (FF) show in
Fig.1.
Note: Install the leg brace according to the upward
arrow.
Hardware Used
Step 2: Attach Right Legs and Leg Brace
Align the holes in the upper cart frames (N), right legs
(U) and leg brace (M). Then attach them together with
four M6x45 bolts (CC) and four M6 nuts (FF) show in
Fig.2.
Note: Install the leg brace according to the upward
arrow.
Hardware Used
1
2
M6x45
Bolt
CC
x 4
M6x45
Bolt
CC
x 4
First
First
ASSEMBLY INSTRUCTIONS
FF
FF
O
U
M
P
M
N
N
M6
Nut
x 4
M6
Nut
x 4
Second
Second
