6

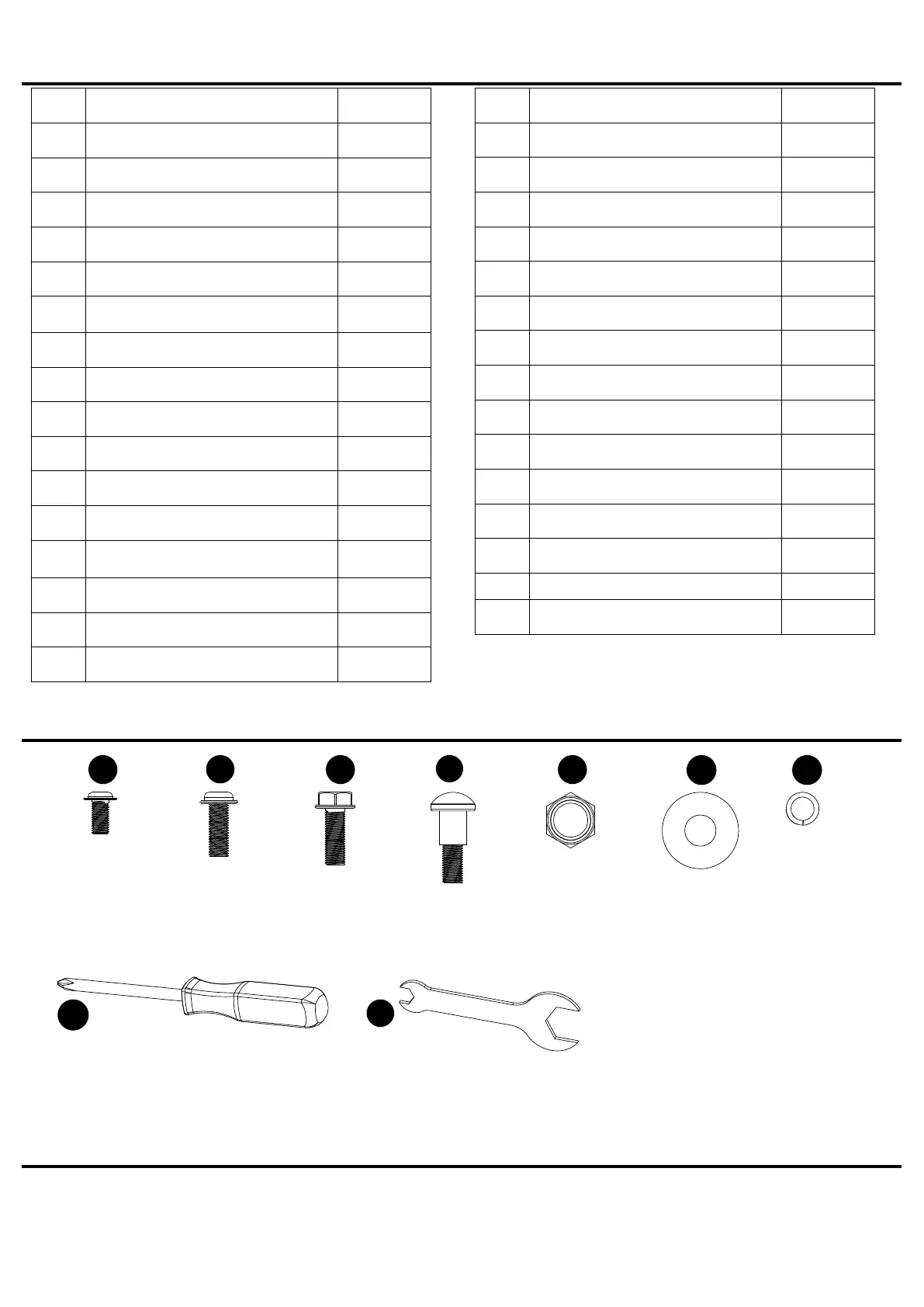

Part Description Quantity
A Warming Rack 1
B Cooking Grid 3
C Heat Plate 4
D Lid Handle* 1
E Temperature Gauge 1
F Lid* 1
G Grill Body Assembly* 1
H Main Burner* 4
I Grease Tray* 1
J Left Side Shelf 1
K Control Knob
L Lighting Rod* 1
M Regulator/Hose Assembly* 1
N Right Side Shelf 1
O Side Burner Grid 1
P Side Burner 1
Part Description Quantity
Q Grease Cup 1
R Side Cart Frame 2
S Rear Leg 2
T Front Leg 2
U Cart Frame Support A 1
V Upper Cart Frame 1
W Rear Cart Frame Support 1
X LP Gas Tank Retainer Wire 1
Y Left Leg Seat 1
Z Cart Frame Support B 1
AA Front Panel 1
AB Right Leg Seat 1
AC Axle 1
AD Wheel 2
AE Lower Cart Frame 1
* Pre-assembled
M4x10
Screw
Qty:4
M6x16
Screw
Qty:18
M6x16
Bolt
Qty:12
M6x22
Bolt
Qty:3
M10
Nut
Qty:2
Ø16
Washer
Qty:4
Ø6
Lock Washer
Qty:4
AA
BB
CC
DD
EE
FF GG
#2 Philips Head
Screwdriver
Qty:1
M6-M10
Wrench
Qty:2
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the
product.
Estimated assembly time: 45 minutes by two people
.
Toos required for assemly: Wrench and Philips screwdriver (included).
PACKAGE CONTENTS
HARDWARE CONTENTS
Preparation
HH
II
To Next Page
