Page 10
J.
Rotate the actuator 90°, bring the chain terminal up to
the bracket and insert the pin into the opening on the
bracket. Insert the rapid release hook into the bracket.
K.
Check that the exit on the chain is perfectly aligned
with the bracket. If the chain is not aligned with the
bracket, loosen the fixing screws and reposition the
bracket correctly.
L.
Check all electrical connections with the diagram on the
label attached to the lead.
Figure 9
M.
Carry out a complete check of opening and closure of the window. Once the
closure phase has been completed, check that the window frame is completely
closed by checking the pressure on the weather strips.
N.
On re-entry the actuator limit switch functions automatically. The device exerts a
traction force of over 300 N to guarantee perfect sealing up of the weather strips.

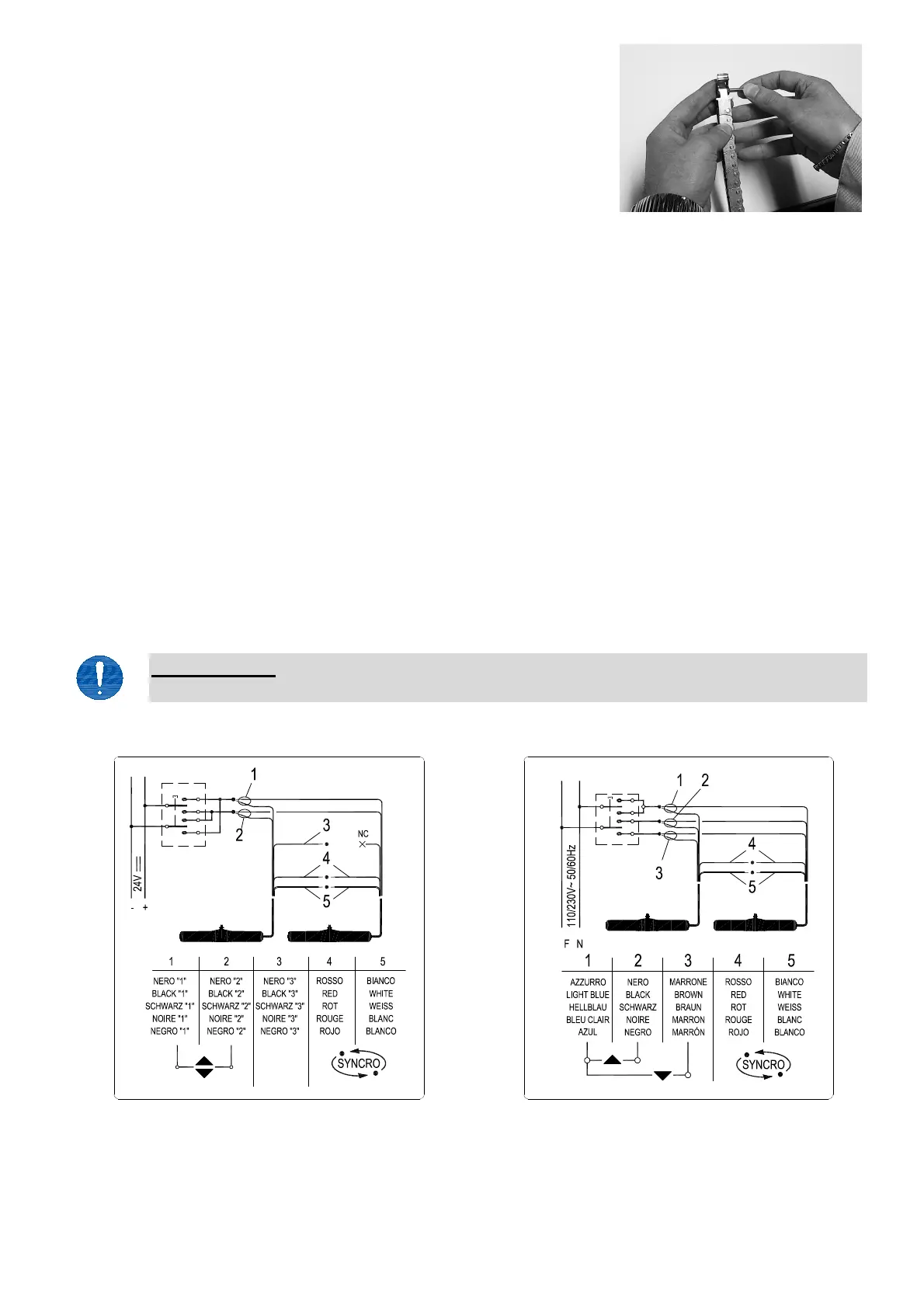

9. Electrical connections
Cable supplied together with actuator is 2,5 m (±5%) long and it is calculated in
accordance with safety rules. See table on page 7 for conductor section indications.
Electrical connection of cables white and red has to be done with a loose
connector of proper dimensions (clamp is on equipment). Fundamental
importance has a steady connection, with a good electrical contact because
passing tension is very low.
IMPORTANT: in 24V actuators, wire Black “3” if not used must be
insulated and never connected.
For harness, please follow these diagrams.
