DIGITAL PLUNGE ROUTER - 054-6902-0DIGITAL PLUNGE ROUTER - 054-6902-0
11 12

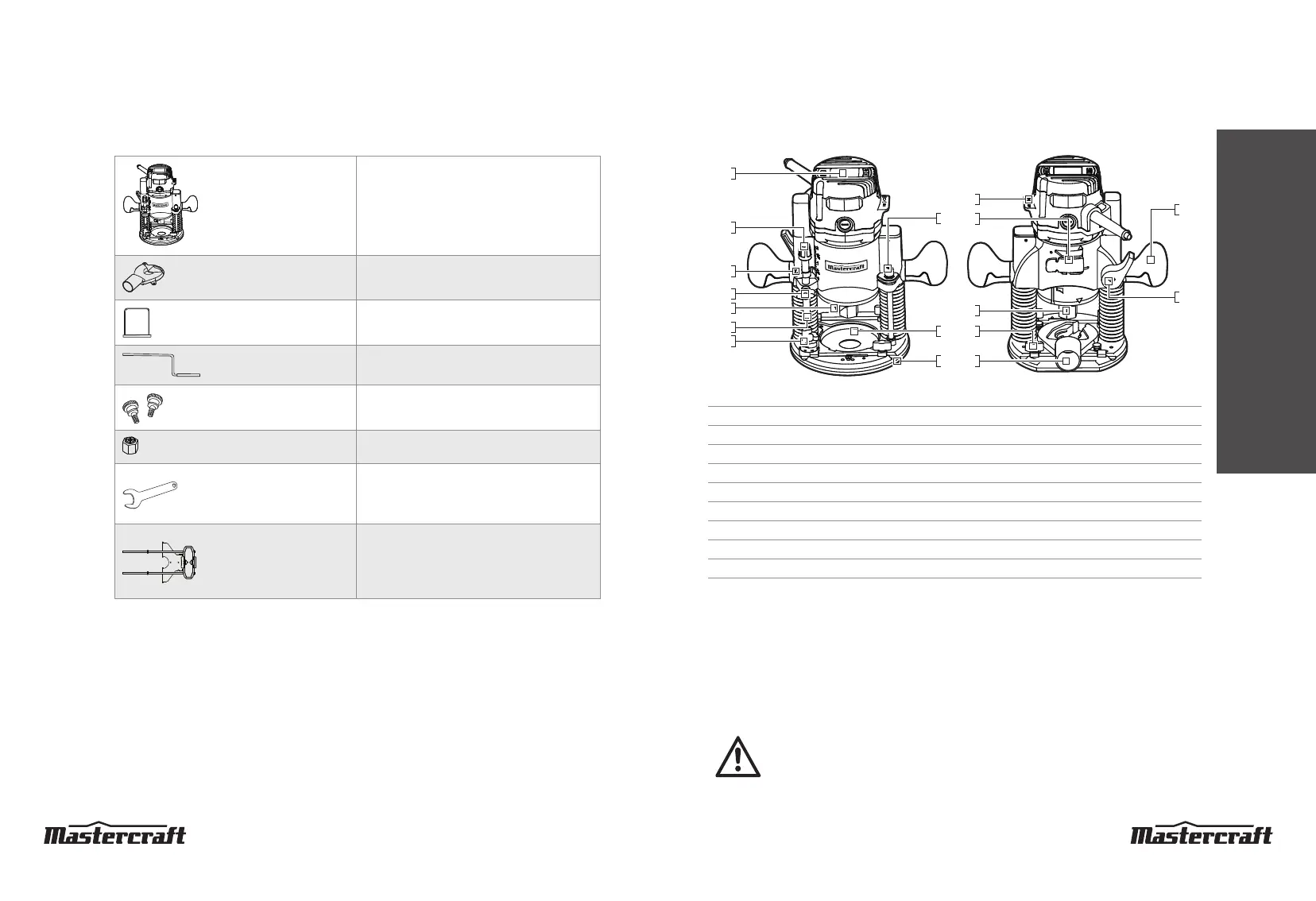

Know your digital plunge router
13
11
15
3
1
4
5
7
9
10
17
12
14
2
6
8
16
No. Description No. Description
1 Digital display 10 Base plate
2 Micro adjustment knob 11 On/Off toggle switch
3 Depth indicator 12 Key/Slot (motor mounting strip to base)
4 Depth-rod locking knob 13 Collet nut
5 Spindle lock 14 Wing nut
6 Micro adjusting screw 15 Vacuum port
7 Depth-stop turret 16 Ergonomic Handles
8 Cutting-depth adjusting rod 17 Plunge-depth locking lever
9 Chip shield
Before attempting to use this digital plunge router, become familiar with all of its operating features and
safety requirements. For optimum performance and safety, read the following operating instructions
carefully before using the digital plunge router.
Your digital plunge router has a precision-built electric motor and it should only be connected to a
120-volt, 60-Hz AC only power supply (normal household current). Do not operate on direct current
(DC). This large voltage drop will cause a loss of power and the motor will overheat. If the router does
not operate when plugged into a correct 120-volt, 60-Hz AC only outlet, check the power supply. This
router has an 6-ft., 2-wire power cord (no adapter needed).
WARNING!
Do not allow familiarity with the digital plunge router to cause a lack of alertness. A fraction
of a second of carelessness is enough to cause severe injury.
Package contents:
Plunge base and digital router motor with 1/2"
collet/nut
Vacuum port
Chip shield
Depth-adjustment wrench
2 screws (for attaching vacuum port)
1/4" collet/nut
Collet/nut wrench
Edge guide with
quick release
SAFETY GUIDELINES
DESCRIPTION
