Matrix G1-GM30 User Manual

17

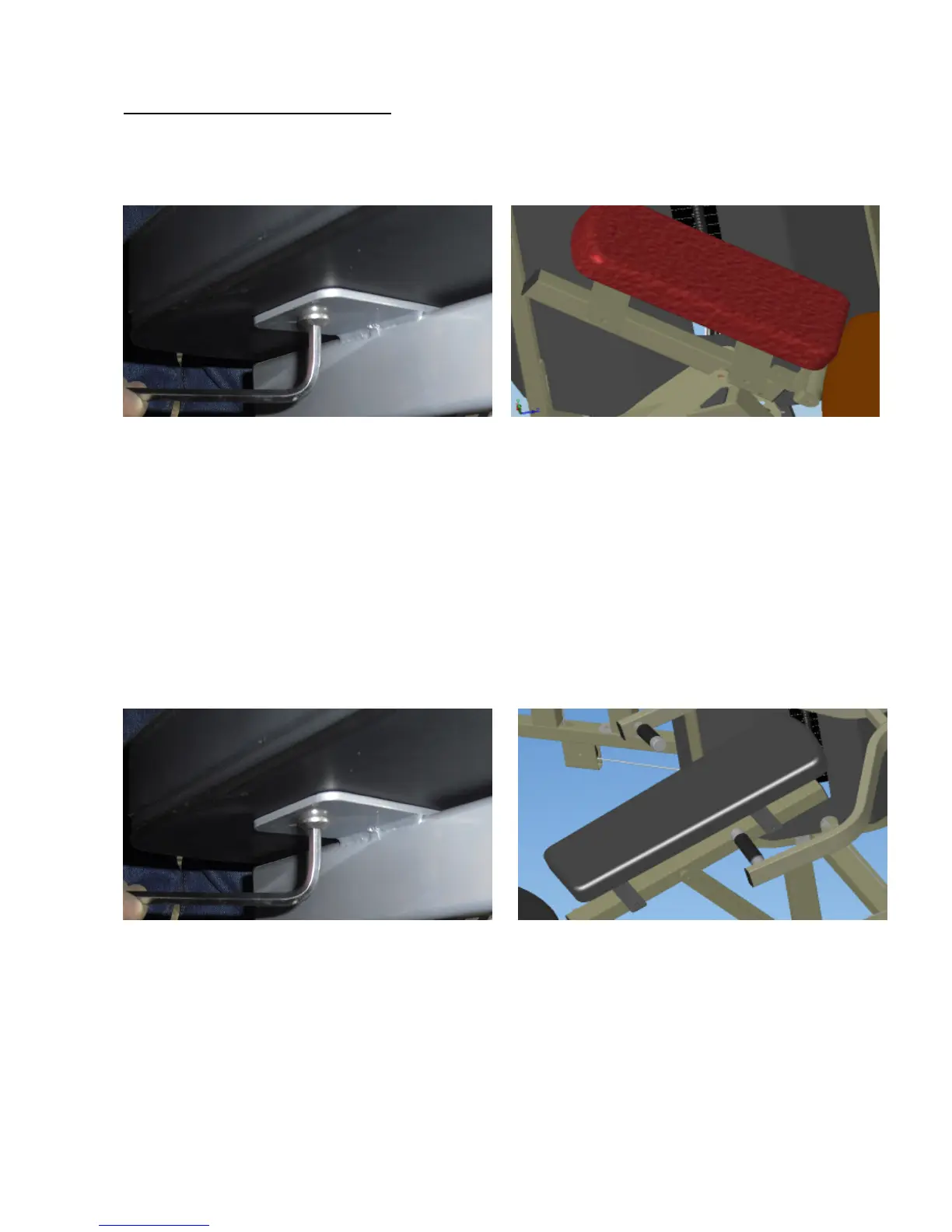

4.3 BACK PAD REPLACEMENT
1) Use an 8MM L-Shaped Allen Wrench to take off 4 bolts from the old seat pad (Figure A)
2) Replace new pad and fix the 4 bolts (Figure B).
Figure A Figure B
1) Use an 8MM L-Shaped Allen Wrench to take off 4 bolts from the old seat pad (Figure A)
2) Replace new pad and fix the 4 bolts (Figure B).
Figure A Figure B

Matrix G1-GM30 Specifications

General

Brand	Matrix
Model	G1-GM30
Category	Fitness Equipment
Language	English

Summary

CHAPTER 1: SERIAL NUMBER LOCATION

1.1 SERIAL NUMBER LOCATION

The serial number is located at the bottom of the weight stack frame.

CHAPTER 2: ASSEMBLY INSTRUCTIONS

2.1 G1MG30 3-Stack Multi-Gym Assembly Instructions

Unpacking and general assembly information for the G1MG30 3-Stack Multi-Gym.

CHAPTER 3: TROUBLESHOOTING

3.1 TROUBLESHOOTING – CABLE ISSUES

Addresses possible causes and solutions for loose cable issues.

CHAPTER 4: PART REPLACEMENT INSTRUCTIONS

4.1 HAND GRIP FOAM REPLACEMENT

Instructions for replacing the foam on the handlebars.

4.2 SEAT PAD REPLACEMENT

Instructions for replacing the seat pad using an 8MM Allen Wrench.

4.3 BACK PAD REPLACEMENT

Instructions for replacing the back pad using an 8MM Allen Wrench.

4.4 ROUND PAD ADJUSTMENT PIN REPLACEMENT

Steps to replace the round pad adjustment pin using C ring pliers.

4.5 SEAT ADJUSTMENT HANDLE REPLACEMENT

Instructions to replace the seat adjustment handle pin using a 24MM wrench.

4.6 BACK ADJUSTMENT HANDLE REPLACEMENT

Instructions to replace the back adjustment handle pin using a 24MM wrench.

4.7 ROUND ADJUSTMENT HANDLE REPLACEMENT

Instructions for replacing the round adjustment handle pin.

4.8 ARM ADJUSTMENT HANDLE REPLACEMENT

Instructions to replace the arm adjustment handle pin using a 24MM wrench.

4.9 SEAT SLEEVE REPLACEMENT

Steps to replace the seat sleeve and tube bushing.
