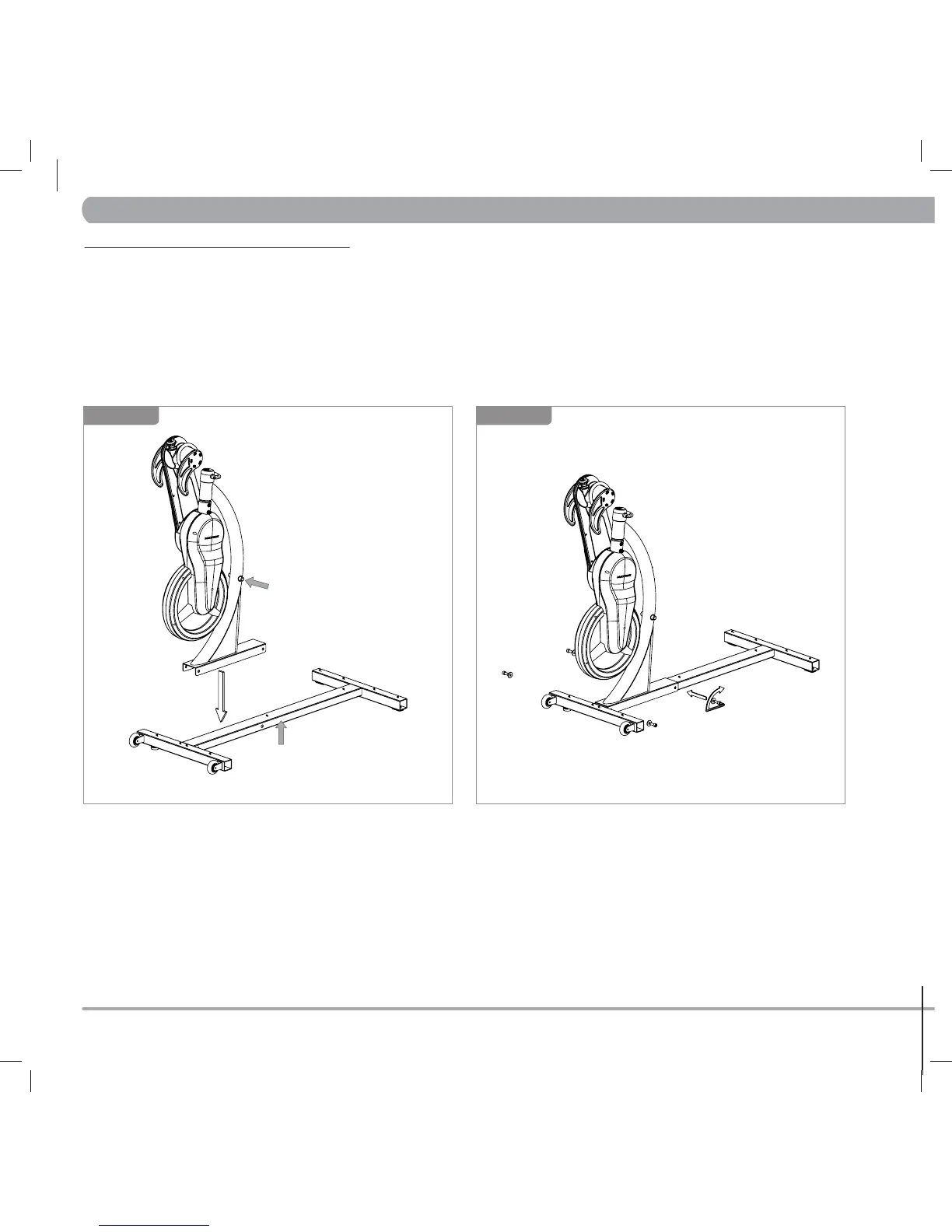

2.3 ASSEMBLY STEPS
Place DRIVE FRAME on BASE FRAME so the bolt holes line up.
IMPORTANT: Due to the size and weight of the drive frame, the
manufacturer recommends using two people to lift and place the drive
frame on the base.
• ATTENTION
Prior to assembling the KRANKcycle™, unpack all of the contents of the box and make sure that all necessary components are present. Review the
contents of the hardware package for completeness. Contact your local distributor or go to www.matrixfitness.com to report any missing items.
DRIVE FRAME
BASE FRAME
STEP 1
Attach the DRIVE FRAME to the BASE FRAME using 8mm ALLEN KEY WRENCH
and item 1-FLAT WASHER and item 2-SOCKET HEAD CAP SCREW.
STEP 2
Krankcycle_091021.indd 5 10/22/09 8:31 AM
