MOTOR REPLACEMENT (Cont'd)
2. T70/T75 ONLY
1) Disconnect power cord.

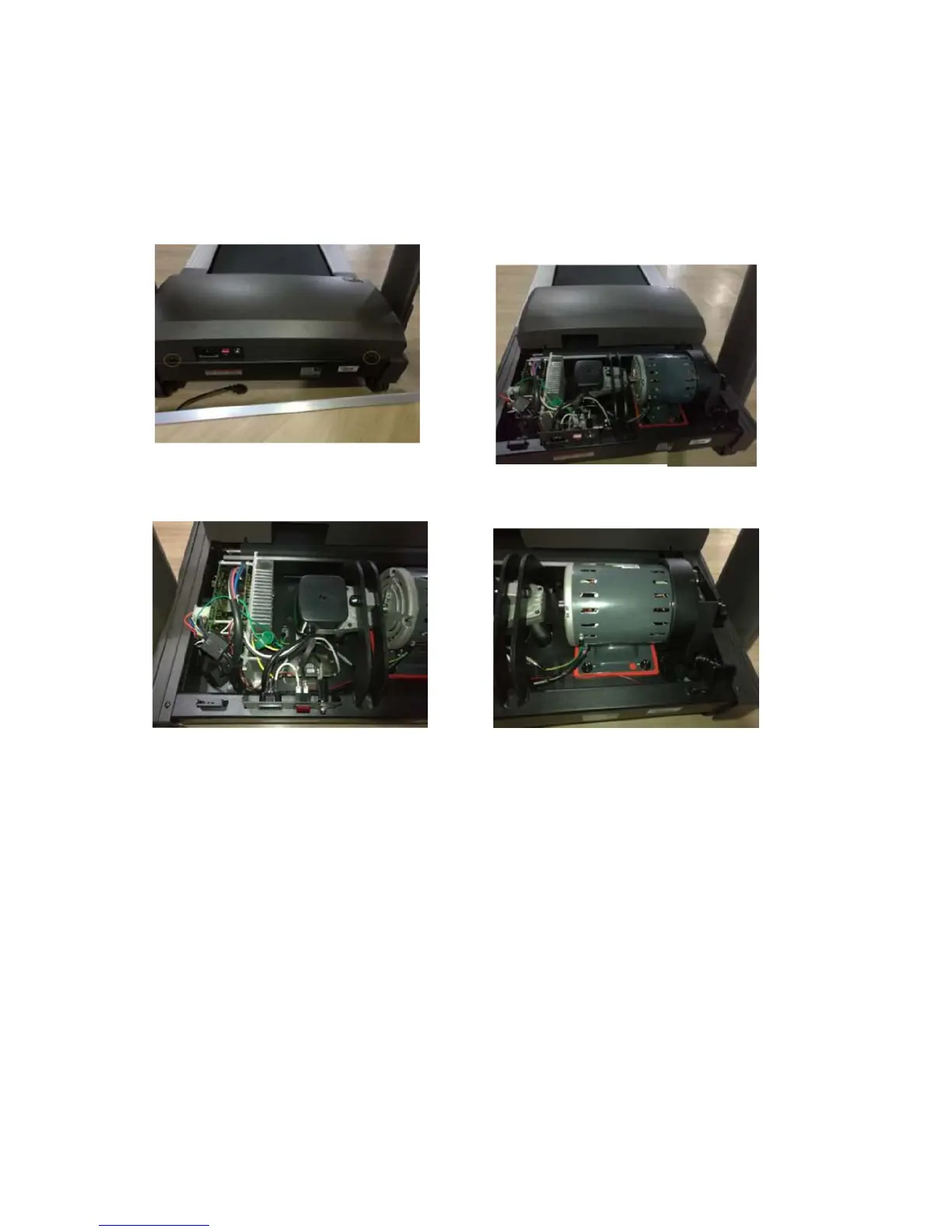

2) Remove the 2 screws holding the motor cover to the frame (Fig-1).
3) Note. The cover is secured to the frame with Velcro so you will have to pull up
Fig-1
3) Disconnect motor wires and grounds, cut any wire ties as needed.
Fig-3
4) Remove spring from the belt tensioner. Re move drive belt from motor pulley. 5)
Remove 4 bolts securing motor and remove motor from drive compartment.
with some force (Fig-2)
Fig-2
Fig-4
6) Revers e steps to install motor. replace any wire ties that were removed.
Note: when installing the drive bet, rotate by hand several rotations, make sure it is aligned with the front
roller pulley.
7) Test at various speeds
