4.02
TI013G0008

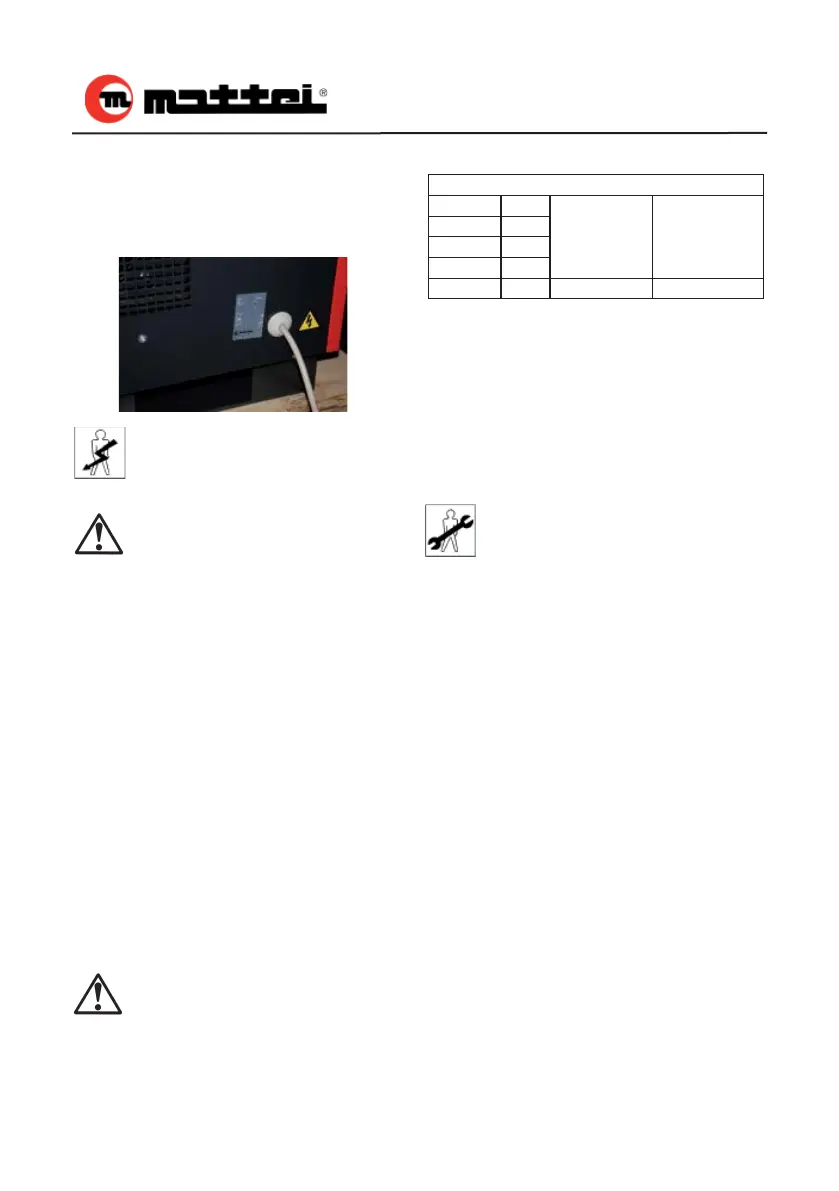

Connection to the air distribution
system
Compressed air distribution
Only qualifi ed staff should carry
out the connection to the air distri-
bution network and in compliance
with the regulations in force.
The distribution of air aims at bringing
compressed air to utilities, with minimum
pressure loss hence reducing any energy
waste.
To avoid any kind of waste, check all the
distribution equipment pipings and all ac-
cessories at regular intervals.
Filters, regulators, and other accessories
must undergo suitable maintenance.
The section of piping connecting to the
equipment must be fl exible and with a dia-
meter not less than the one leaving the ma-
chine.
An isolation valve is also required to remo-
ve the machine from the air network in case
of maintenance.
It is recommended that a hose with an air
nozzle be installed near the machine to al-
low for regular cleaning of the radiator,intake
fi lter and other parts of the machine. The in-
take air contains a certain amount of water
indicated as relative humidity.
on the compressor easier, leave at least 1 m
clearance from all other sides.
Electrical connection
Only qualifi ed personnel should
make the electrical connections, in
compliance with current regulations.
WARNING!!!
For safe maintenance of all
compressor components,
the customer should install a
disconnect switch and circuit breakerof
suitable size as near as possible to the
machine.
The characteristics of the electrical motor
start should be taken into consideration
when choosing the disconnect switch and
circuit breaker.
The size of the power cables between line
disconnect switch and the control board of
the compressor should be made using the
values given on the technical sheet of sec-
tion “SECTION DATA “.
For further details, use the specifi c electri-
cal diagram supplied with the machine or
the general one attached to this Manual.
WARNING !!!
It is to be noted that the machi-
ne should ALWAYS be properly
grounded.
Transportation and handling -
Installation
CompressorSupply
208Vac 60Hz
230Vac 60Hz
460Vac 60Hz
575Vac 60Hz
230Vac 60Hz
SinglePhase
(1Ph+Ground)
ThreePhase (3Ph+Ground)
