13
Louvered Hood
Good
Angled Hood
Box Hood
Better
Exhaust hoods:
Elbows:
Recommended Styles:
Recommended Styles:
■ 45° elbows provide better airow than 90° elbows.
Clamps:
■ Use clamps to seal all joints.
■ Exhaust vent must not be connected or secured with screws
or other fastening devices that extend into interior of duct
and catch lint. Do not use duct tape.
■ Must be at least 12" (305 mm) from ground or any object that
may obstruct exhaust (such as owers, rocks, bushes, or
snow).
Acceptable Style:

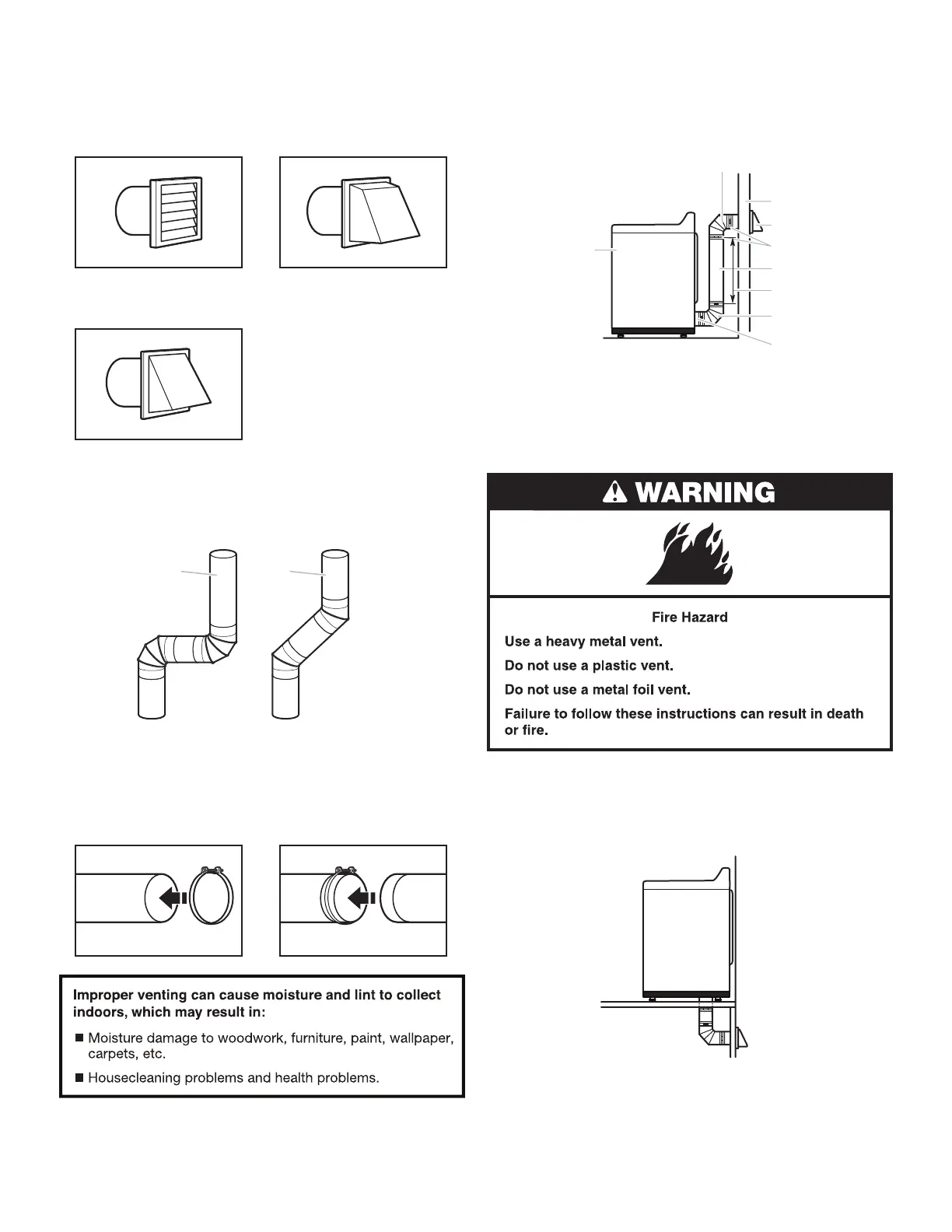

PLAN VENT SYSTEM
Recommended exhaust installations
Typical installations vent the dryer from the rear of the dryer.
Other installations are possible.
B
C
D
E
F
G
H
A
A. Dryer
B. Elbow
C. Wall
D. Exhaust hood
E. Clamps
F. Rigid metal or exible metal vent
G. Vent length necessary to connect elbows
H. Exhaust outlet
Optional exhaust installations:
■ Exhaust Cover Kit (to cover unused exhaust holes):
Part Number W10186596 - all models
■ Bottom Exhaust Kit- Part Number 8212503
