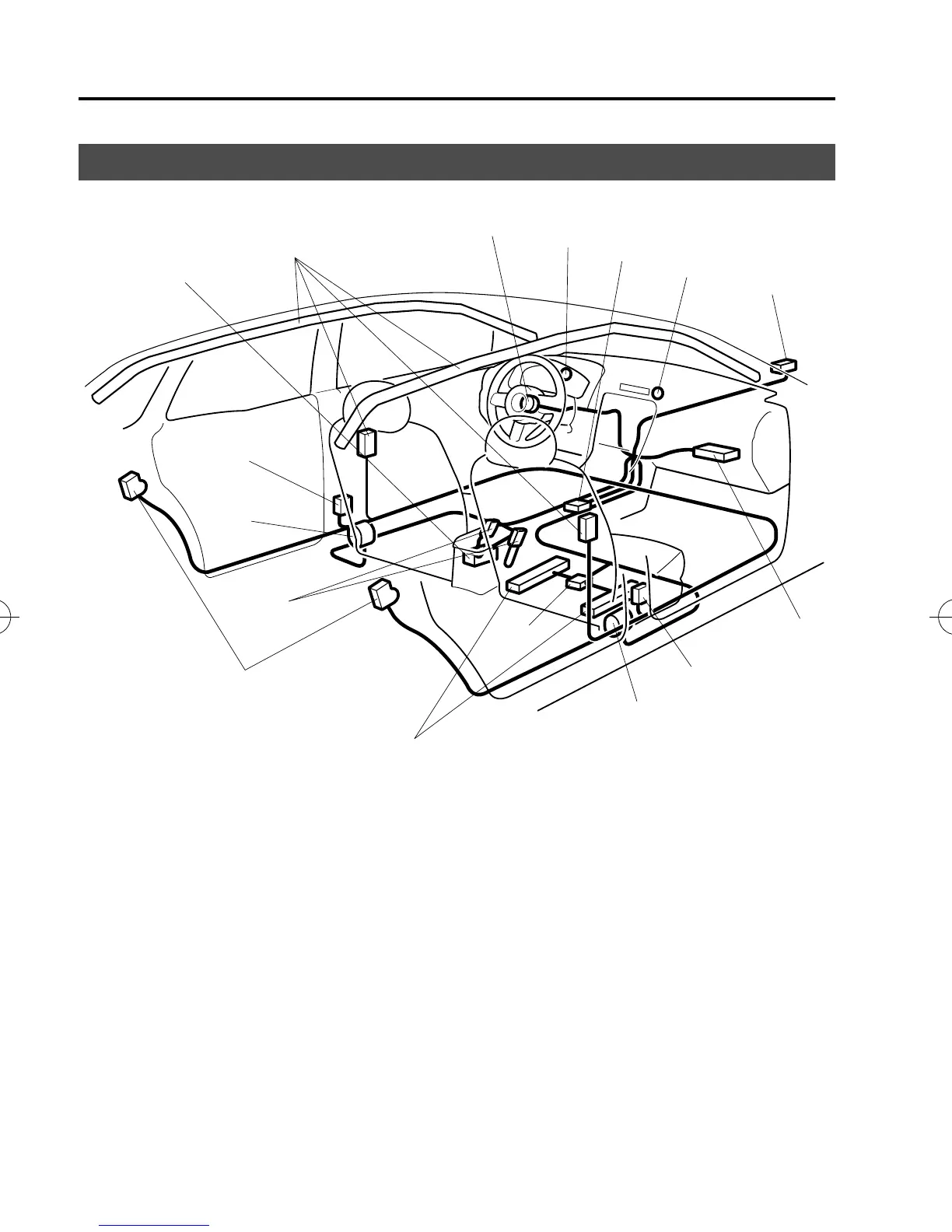

Supplemental Restraint System Components
(1)
(11)
(12)
(7)
(6)
(9)
(9)
(5)
(4)
(3)
(2)
(3)
(10)
(8)
(8)
(8)
(1) Driver seat slide position sensor (page 2-60)
(2) Side and curtain inflators and air bags
(3) Driver/Front passenger dual stage inflators and air bags
(4) Air bag/front seat belt pretensioner system warning light (page 2-56)
(5) Crash and roll-over sensors, and diagnostic module (SAS unit)
(6) Front passenger air bag deactivati on indicator light (page 2-60)
(7) Front air bag sensor
(8) Side crash sensor
(9) Front seat belt pretensioner and load limiting systems (page 2-19)
(10) Front passenger seat weight sensors (page 2-60)
(11) Front passenger seat weight sensor control module
(12) Driver and front passen ger seat belt buckle switches (page 2-64)
