Automatic Transaxle Fluid
(ATF)
í
qInspecting Automatic Transaxle
Fluid Level
The automatic transaxle fluid level should
be inspected regularly. Measure it as
described below.
CAUTION
Always check the automatic
transaxle fluid level according to the
following procedure. If the procedure
is not done correctly, the automatic
transaxle fluid level cannot be
measured accurately which could
lead to automatic transaxle damage.
1. Park on a level surface and set the
parking brake firmly.
2. Make sure there is no ATF leakage
from the ATF hose or the housing.
3. Shift the shift lever to the park position
(P), start the engine and warm it up.
CAUTION
Do not shift the shift lever while the
engine is warming up. If the ATF level
is extremely low, the automatic
transaxle could be damaged.
4. While the engine is still idling, pull out
the dipstick and wipe it clean, and then
reinsert it.
5. Check the ATF level. If the ATF level
does not reach 5 mm (0.2 in) from the
end of the dipstick, consult an
Authorized Mazda Dealer to have the
vehicle inspected.
CAUTION
If there is no ATF adhering to the
dipstick even after the engine has
been warmed up, do not drive the
vehicle. Otherwise, the automatic
transaxle could be damaged.
6. With the brake pedal depressed, shift
the shift lever from the park position
(P) to drive position (D) at intervals of
several seconds, and then shift to the
park position (P) again.
7. Drive 5 km (4 mile) or more in a city.
8. Park on a level surface, shift the shift
lever to the park position (P) and set
the parking brake firmly.
9. While the engine is still idling, pull out
the dipstick and wipe it clean, and then
reinsert it.

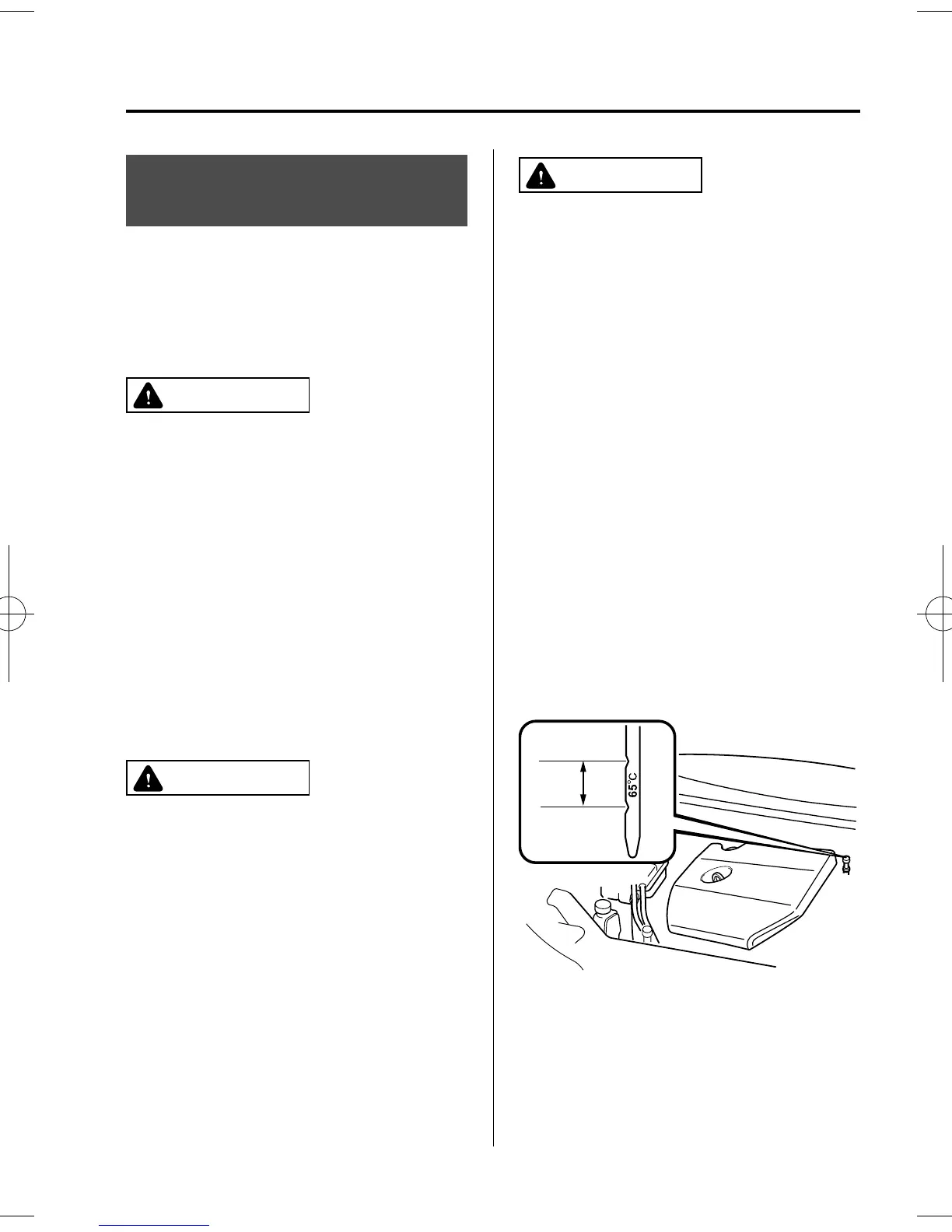

10. Check the ATF level. The proper fluid
level indi cated on the dipstick should
be as follows.
Full
OK
Low
Maintenance and Care
Owner Maintenance
8-25
í
Some models.
