12

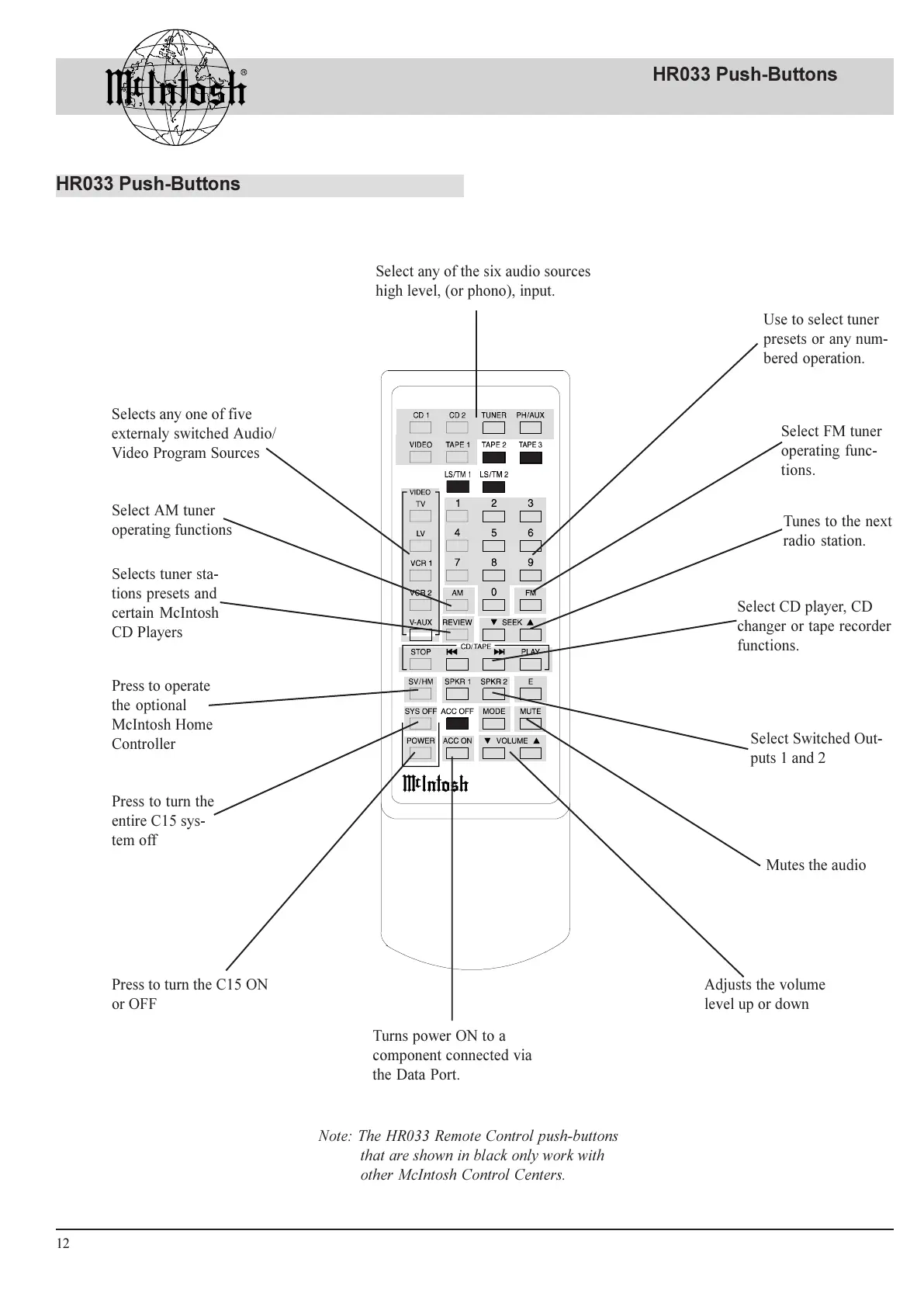

HR033 Push-Buttons
HR033 Push-Buttons
Select any of the six audio sources
high level, (or phono), input.
Selects any one of five
externaly switched Audio/
Video Program Sources
Turns power ON to a
component connected via
the Data Port.
Adjusts the volume
level up or down
Selects tuner sta-
tions presets and
certain McIntosh
CD Players
Select CD player, CD
changer or tape recorder
functions.
Press to operate
the optional
McIntosh Home
Controller
Press to turn the
entire C15 sys-
tem off
Press to turn the C15 ON
or OFF
Use to select tuner
presets or any num-
bered operation.
Select FM tuner
operating func-
tions.
Select AM tuner
operating functions
Select Switched Out-
puts 1 and 2
Mutes the audio
Tunes to the next
radio station.
Note: The HR033 Remote Control push-buttons
that are shown in black only work with
other McIntosh Control Centers.
