McIntosh C15 User Manual

6

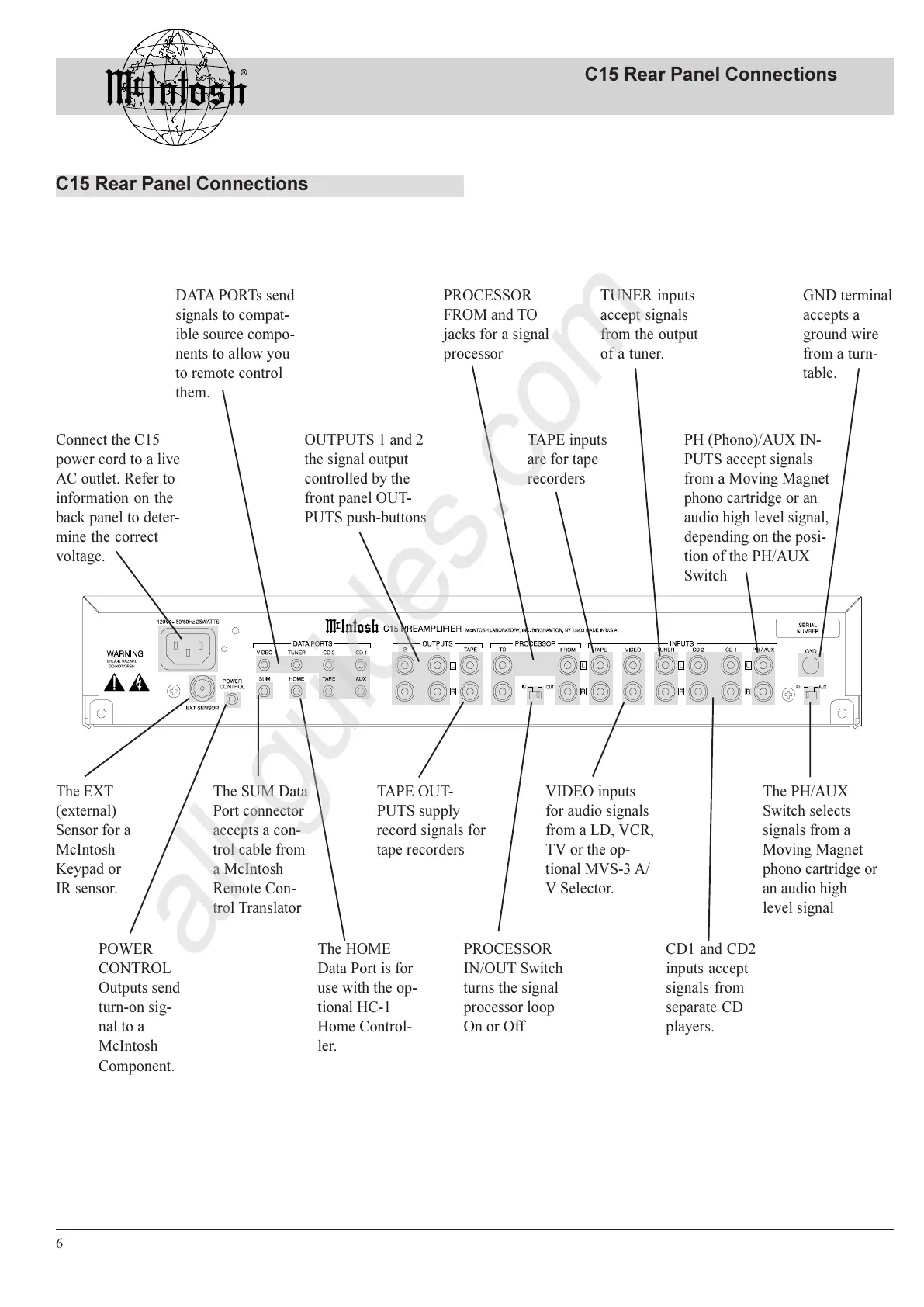

C15 Rear Panel Connections
C15 Rear Panel Connections
Connect the C15
power cord to a live
AC outlet. Refer to
information on the
back panel to deter-
mine the correct
voltage.
The EXT
(external)
Sensor for a
McIntosh
Keypad or
IR sensor.
DATA PORTs send
signals to compat-
ible source compo-
nents to allow you
to remote control
them.
POWER
CONTROL
Outputs send
turn-on sig-
nal to a
McIntosh
Component.
CD1 and CD2
inputs accept
signals from
separate CD
players.
The HOME
Data Port is for
use with the op-
tional HC-1
Home Control-
ler.
OUTPUTS 1 and 2
the signal output
controlled by the
front panel OUT-
PUTS push-buttons
PROCESSOR
FROM and TO
jacks for a signal
processor
The PH/AUX
Switch selects
signals from a
Moving Magnet
phono cartridge or
an audio high
level signal
TUNER inputs
accept signals
from the output
of a tuner.
TAPE inputs
are for tape
recorders
The SUM Data
Port connector
accepts a con-
trol cable from
a McIntosh
Remote Con-
trol Translator
GND terminal
accepts a
ground wire
from a turn-
table.
VIDEO inputs
for audio signals
from a LD, VCR,
TV or the op-
tional MVS-3 A/
V Selector.
TAPE OUT-
PUTS supply
record signals for
tape recorders
PROCESSOR
IN/OUT Switch
turns the signal
processor loop
On or Off
PH (Phono)/AUX IN-
PUTS accept signals
from a Moving Magnet
phono cartridge or an
audio high level signal,
depending on the posi-
tion of the PH/AUX
Switch
