Installation
The MC202 can be placed upright on a table or shelf,
standing on its four feet. It also can be custom installed in a
piece of furniture or cabinet of your choice. The four feet
may be removed from the bottom of the MC202 when it is
custom installed as outlined below. The four feet together
with the mounting screws should be retained for possible
future use if the MC202 is removed from the custom instal-
lation and used free standing. It also can be custom in-
stalled in a piece of furniture or cabinet of your choice The
required panel cut-
out, ventilation cut-
out and unit dimen-
sions are shown.
Always provide
adequate ventilation
for your MC202.
Cool operation en-
sures the longest
possible operating
life for any elec-
tronic instrument.
Do not install the
MC202 directly
above a heat gener-
ating component
such as a high pow-
ered amplifier. If all
the components are
installed in a single
cabinet, a quiet run-
ning ventilation fan
can be a definite
asset in maintaining
all the system com-
ponents at the
coolest possible op-
erating temperature.
A custom cabi-
net installation
should provide the
following minimum
spacing dimensions
for cool operation.
Allow at least 6
inches (15.24 cm)
above the top, 2
inches (3.81cm) be-
low the bottom and
Installation
4-
7/8
"
12.38cm
17 -
1/16
"
43.34cm

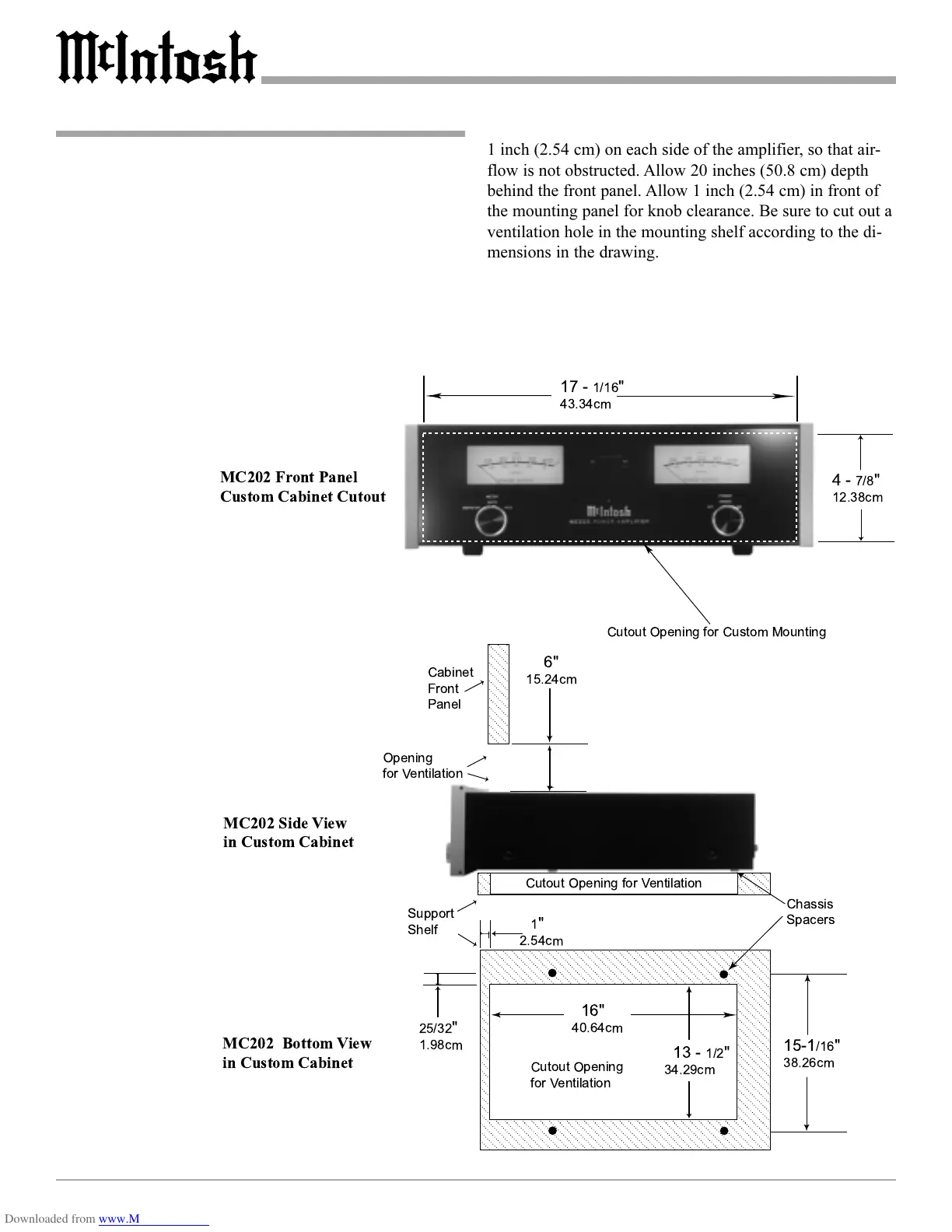

Cutout Opening for Custom Mounting
MC202 Front Panel
Custom Cabinet Cutout
6"
15.24cm
16"
40.64cm
13 -
1/2
"
34.29cm
15-1
/16
"
38.26cm
25/32
"
1.98cm
Cutout Opening
for Ventilation
Cutout Opening for Ventilation
Support
Shelf
Cabinet
Front
Panel
Chassis
Spacers
Opening
for Ventilation
MC202 Side View
in Custom Cabinet
MC202 Bottom View
in Custom Cabinet
1
"
2.54cm
1 inch (2.54 cm) on each side of the amplifier, so that air-
flow is not obstructed. Allow 20 inches (50.8 cm) depth
behind the front panel. Allow 1 inch (2.54 cm) in front of
the mounting panel for knob clearance. Be sure to cut out a
ventilation hole in the mounting shelf according to the di-
mensions in the drawing.
