McIntosh MC205 User Manual

7

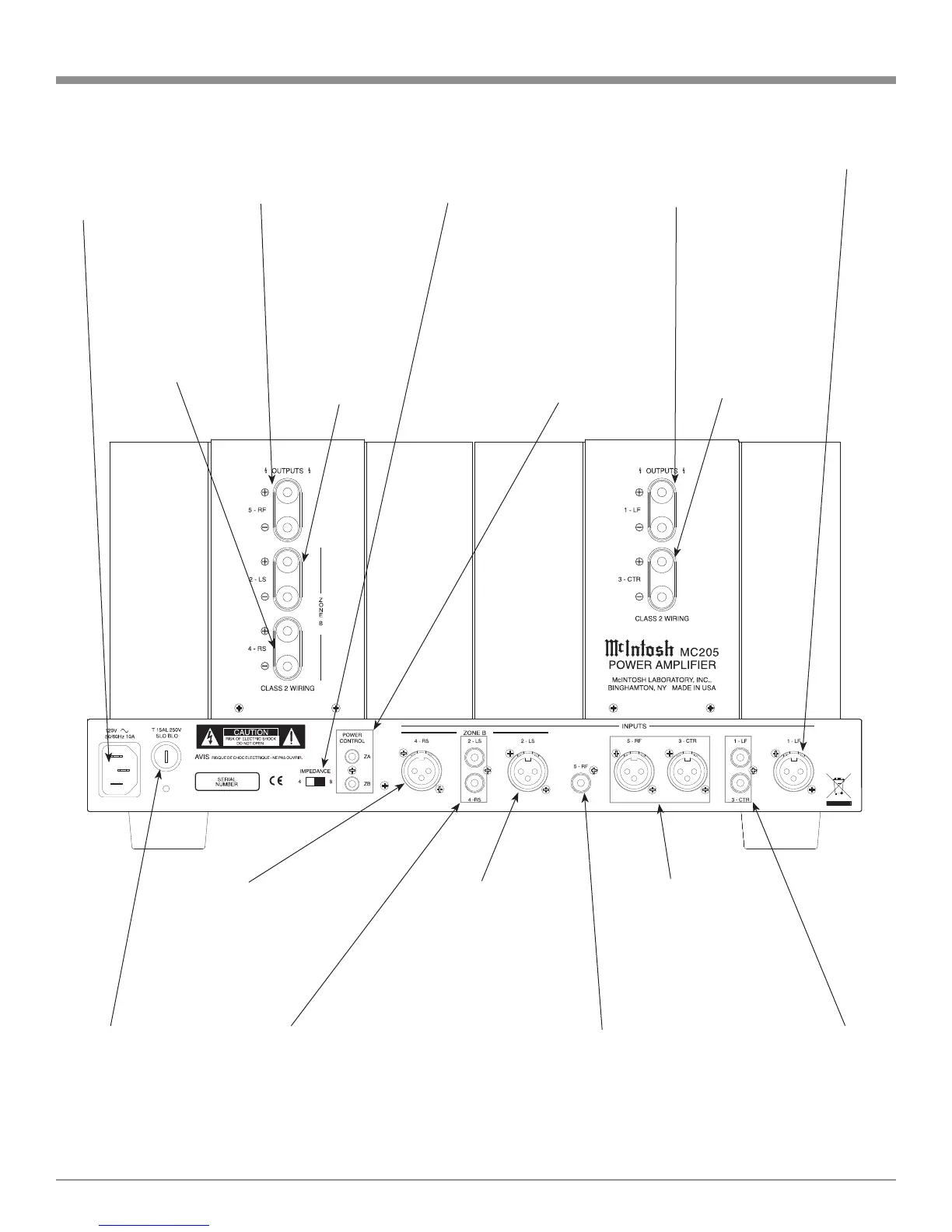

Rear Panel Connections
Connect the MC205
power cord to a live AC
outlet. Refer to the rear
panel to determine the
correct voltage
Main Fuse, refer
to the rear panel
for the correct fuse
size and rating
Selects the impedance
(4 or 8 ohms) of the
Loudspeakers connect-
ed to the MC205
POWER CONTROL ZA receives
turn On/Off signals from a McIn
-
tosh component for Zone A (Chan-
nels 1- 5). ZB receives turn On/Off
signals from a McIntosh component
for Zone B (Channels 2 and 4).
Unbalanced INPUT Channel 5
(Right Front)
OUTPUT Connections
for a 4 ohm or 8 ohm
Loudspeaker for Chan
-
nel 4 (Right Surround)
or ZONE B Right
Channel
OUTPUT Connections
for a 4 ohm or 8 ohm
Loudspeaker for Chan
-
nel 5 (Right Front)
OUTPUT Connections
for a 4 ohm or 8 ohm
Loudspeaker for Chan
-
nel 3 (Center Front)
OUTPUT Connec
-
tions for a 4 ohm or
8 ohm Loudspeaker
for Channel 2 (Left
Surround) or ZONE
B Left Channel
OUTPUT Connections
for a 4 ohm or 8 ohm
Loudspeaker for Chan
-
nel 1 (Left Front)
Balanced INPUT Channel 4
(Right Surround) or ZONE
B Right Channel
Unbalanced INPUTs Channel
2 (Left Surround) and Channel
4 (Right Surround) or ZONE B
Left and Right Channels
Balanced INPUT Channel 2
(Left Surround) or ZONE B
Left Channel
Balanced INPUTS Channel
5 (Right Front) and Channel
3 (Center Front)
Unbalanced INPUTs Channel
1 (Left Front) and Channel 3
(Center Front)
Balanced INPUT
Channel 1 (Left
Front)

McIntosh MC205 Specifications

General

Damping factor	140
Amplifier class	-
Frequency range	10 - 100000 Hz
RMS rated power	1000 W
Output impedance	8 Ω
Audio output channels	5.0 channels
Peak power per channel	200 W
Signal-to-Noise Ratio (SNR)	112 dB
Total Harmonic Distortion (THD)	0.005 %
XLR in	Yes
Audio (L/R) out	10
Line inputs (RCA)	5
Speakers connectivity type	Binding post
Purpose	Home
Product color	Black
Connectivity technology	Wired
Maximum current	10 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Package weight	51800 g

Weight and Dimensions

Depth	533 mm
Width	444.5 mm
Height	239.7 mm
Weight	44200 g
