UNBALANCED INPUTS
for audio cables from a
preamplifier or control
center audio outputs

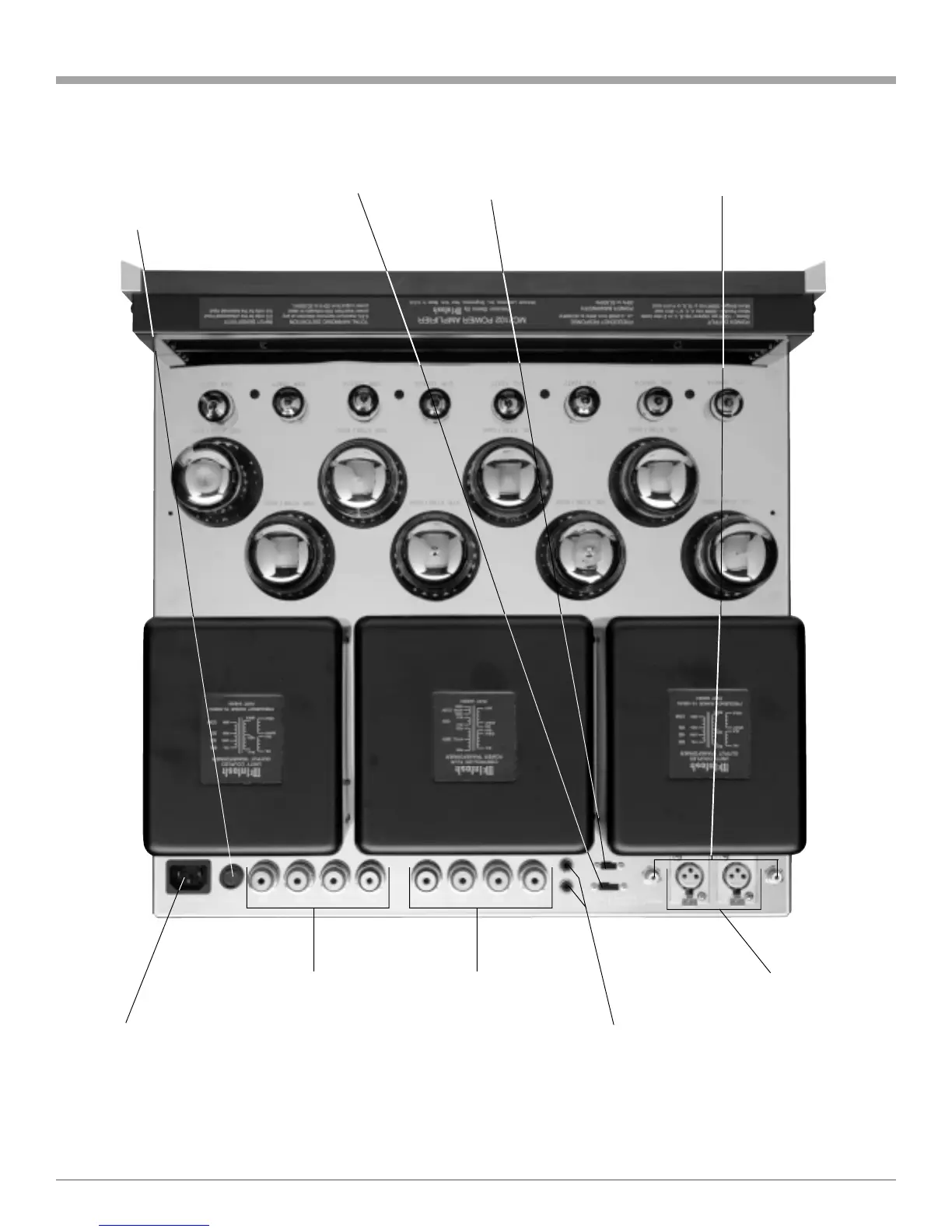

MC2102 Top Rear Panel Connections and Switchs
Connect the MC2102
power cord to a live
AC outlet. Refer to
information on the
back panel to deter-
mine the correct volt-
age
BALANCED INPUTS
for audio cables from a
preamplifier or control
center audio outputs
POWER CONTROL IN
receives turn On/Off signals
from a McIntosh component
and the
POWER CONTROL OUT
sends that turn On/Off signal to
the next McIntosh component
MODE switch selects
STEREO, PARAL-
LEL or BRIDGE
MONO Modes of
operation
Main Fuse holder,
refer to information
on the back panel
of your MC2102 to
determine the cor-
rect fuse size and
rating
RIGHT OUTPUT
Connections for
loudspeakers
LEFT OUTPUT
Connections for
loudspeakers
MODE switch selects
between the BAL-
ANCED or UNBAL-
ANCED INPUTS
