Wiring Diagrams
Electrical Wiring Diagram
Electrical wiring connection must be done according to the wiring diagram on the unit. Refer to Figure 7 to
Figure 18.
The unit must be GROUNDED to the earth system of the building.
All field wiring must be installed in accordance with the national wiring regulation and Fire Department
regulation.

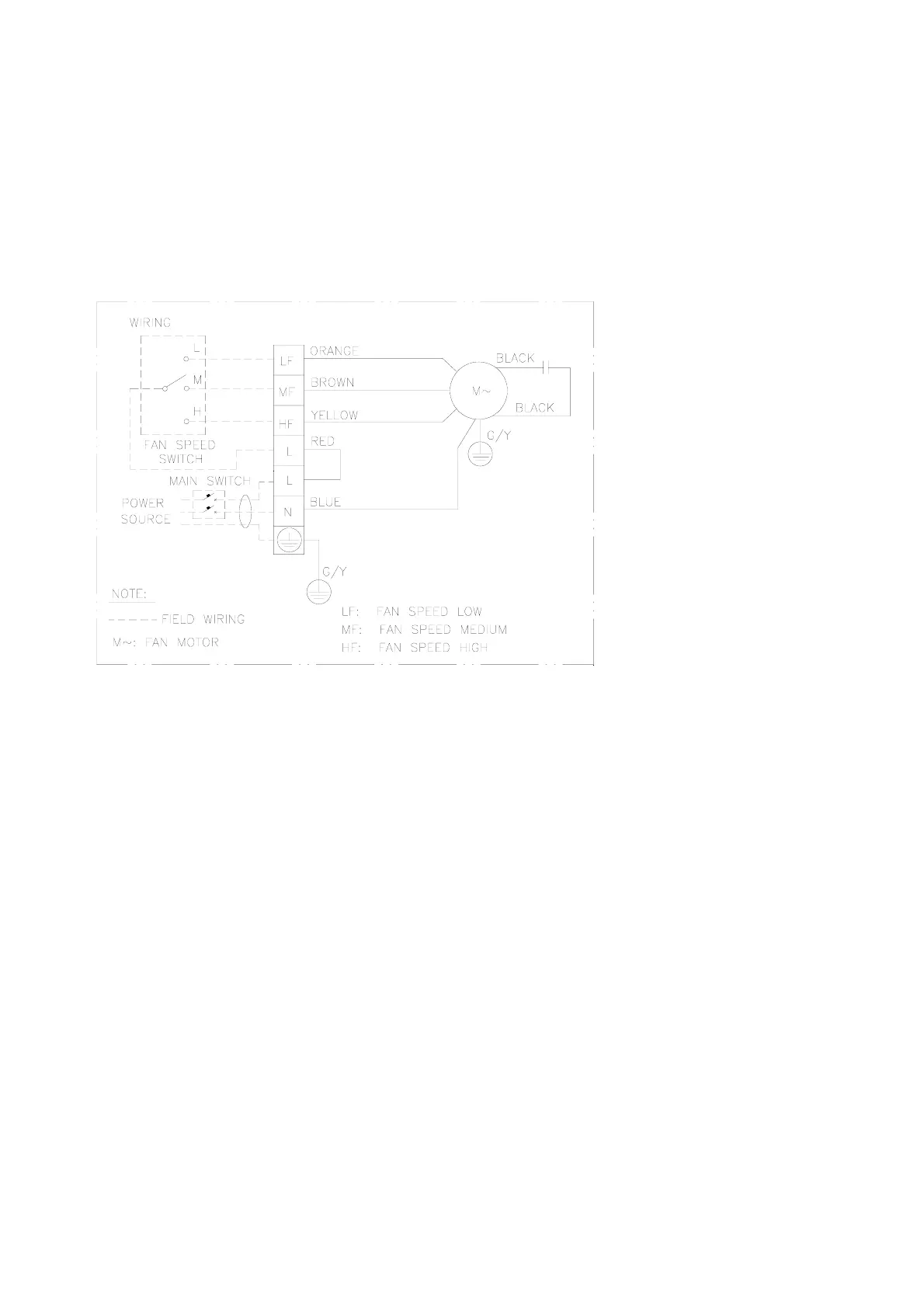

For Models: MCW200C MCW300C MCW400C MCW600C (0Pa and 30Pa)
Figure 7
Figure 7
Page 29
