254
Controls in detail
Soft top

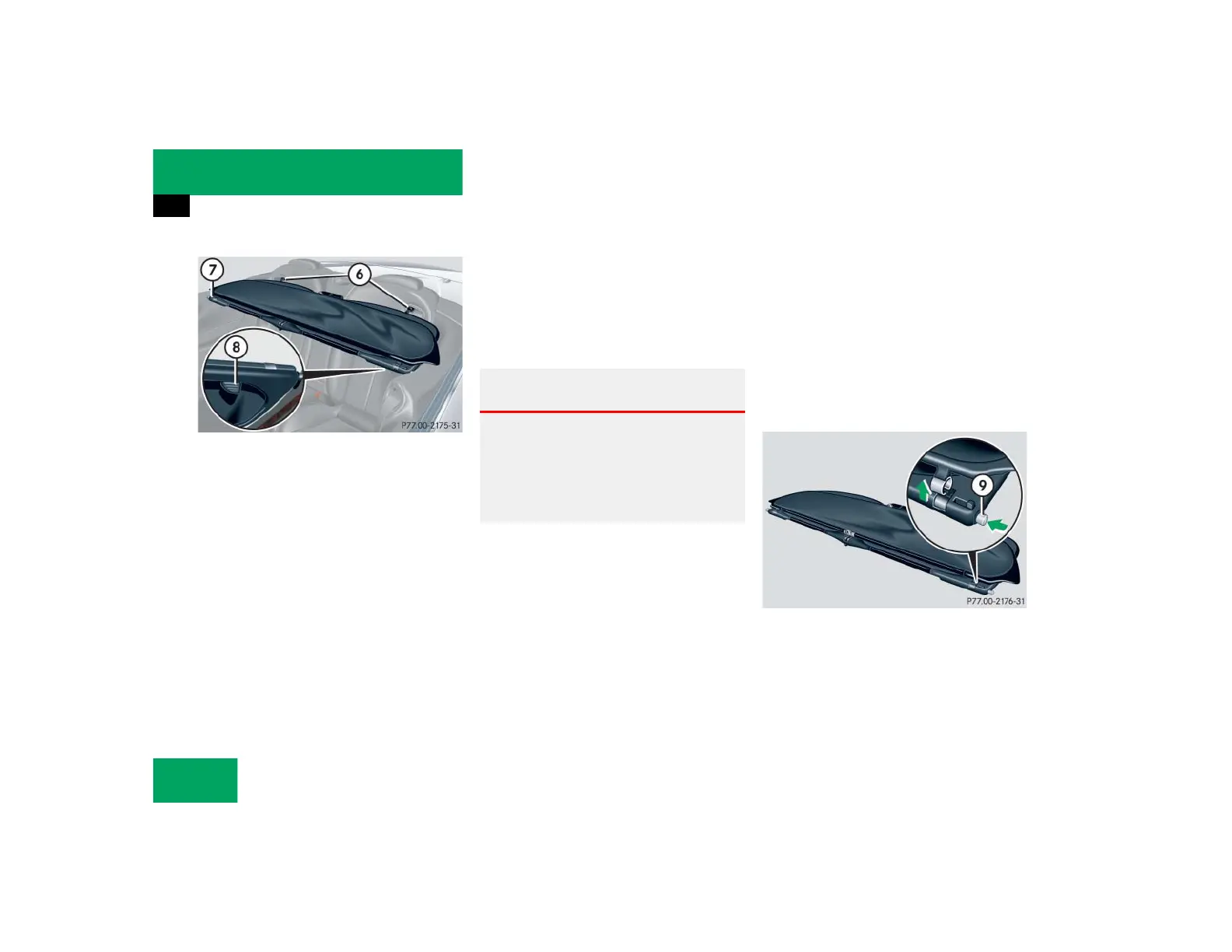

6 Retaining lugs
7 Mounting fixture on right side
8 Catch
왘 Fold retaining lugs 6 out.
왘 Slide pre-assembled wind screen into
mounting fixture on right side 7 using
retaining pin on right side. Simulta-
neously, retaining lugs 6 should slide
into seat belt passage in rear bench
seat.
왘 Pull catch 8 back and guide left re-
taining pin into mounting fixture on left
side.
왘 Fold upper section of wind screen up
toward head restraints until it stops.
Removing
왘 Fold upper section of wind screen back
down.
왘 Pull catch 8 back and pull wind
screen out toward front of vehicle. Be
careful not to damage interior trim with
guide tabs.
왘 Fold retaining lugs 6 back.
9 Catch
왘 Press catch 9 and fold upper and low-
er sections back.
왘 Place the wind screen back into the
bag.
Warning! G
Check for secure locking by pulling up on
the wind screen.
To prevent personal injury, remove wind
screen if rear seats are to be occupied by
passengers.
컄컄
