414
Practical hints
Where will I find...?
Removing the vehicle tool kit
왘 Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.

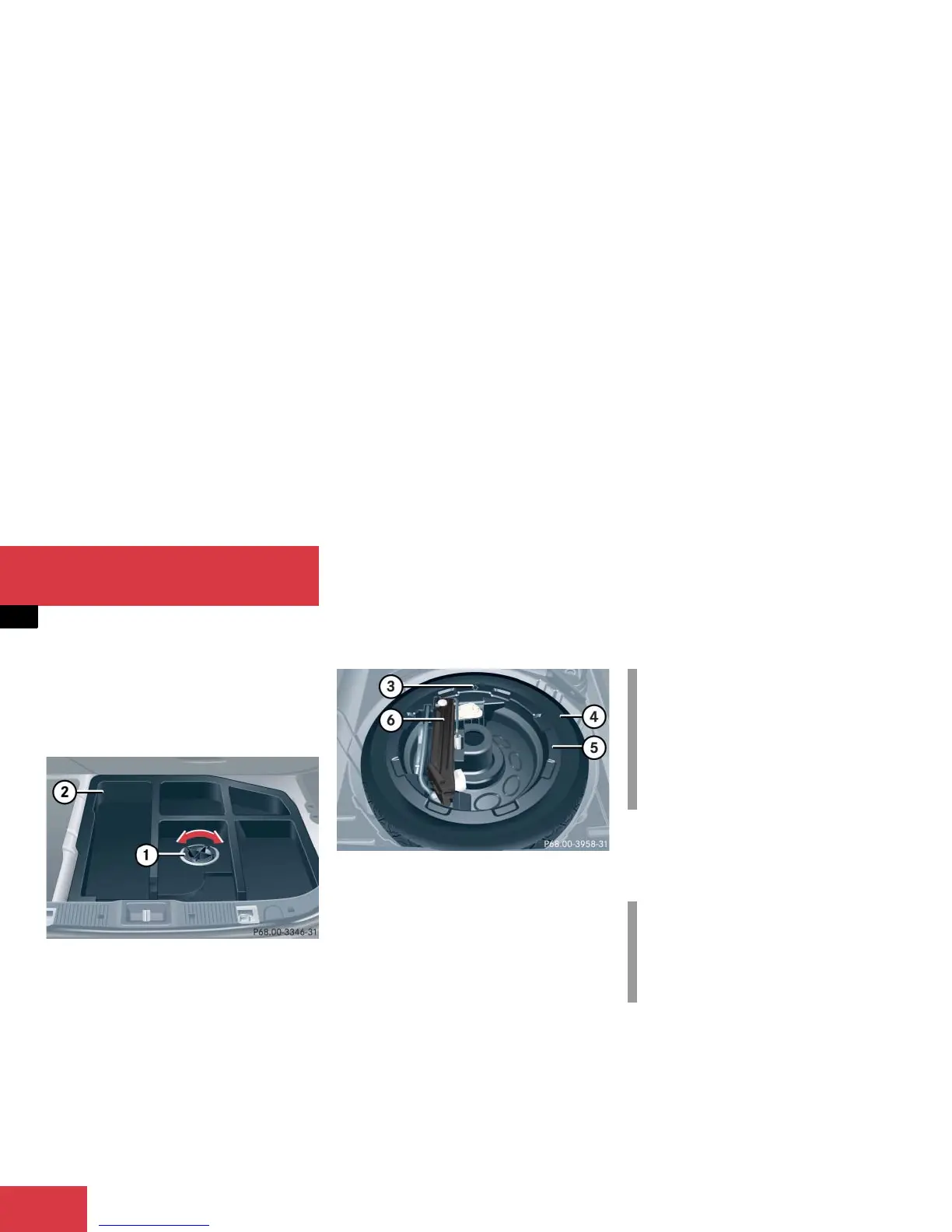

1 Retaining screw
2 Storage well casing
왘 Loosen retaining screw 1 in the mid-
dle of storage well casing 2 by turning
it counterclockwise.
왘 Remove storage well casing 2.
3 Arrow
4 Minispare wheel
5 Vehicle tool kit storage well casing
6 Vehicle tool kit
왘 Remove vehicle tool kit 6.
Storing the vehicle tool kit
왘 Place vehicle tool kit 6 in vehicle tool
kit storage well casing 5.
왘 Place storage well casing 2 over the
vehicle tool kit storage well casing 5
and turn retaining screw 1 clockwise
as far it will go to secure the Minispare
wheel.
왘 Disengage trunk floor handle in upper
edge of trunk and lower trunk floor cov-
er.
i
Arrow 3 on vehicle tool kit storage
well casing 5 must point in the direc-
tion of travel. Otherwise you cannot
place the storage well casing 2 on top
and secure the Minispare wheel with
retaining screw 1.
!
To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before
closing the trunk.
