Controls in detail
Loading
Installing blind
왘 For installation behind second-row
seats, install the blind extensions
(
컄 page 307).
왘 Remove the covers from the mounts in
side trim.
왘 Press on cover at its lower edge as
indicated by arrow.
The mount cover’s upper edge flips
up.
왘 Remove mount cover by pulling
its upper edge out of side trim in
direction of arrow.
왘 Place left side of blind 2 (컄 page 306)
in left mount.
왘 Position right side of blind 2
(
컄 page 306) over right mount.
왘 Press release button 1 (컄 page 306)
and guide blind 2 (
컄 page 306) into
mount.
Extending blind

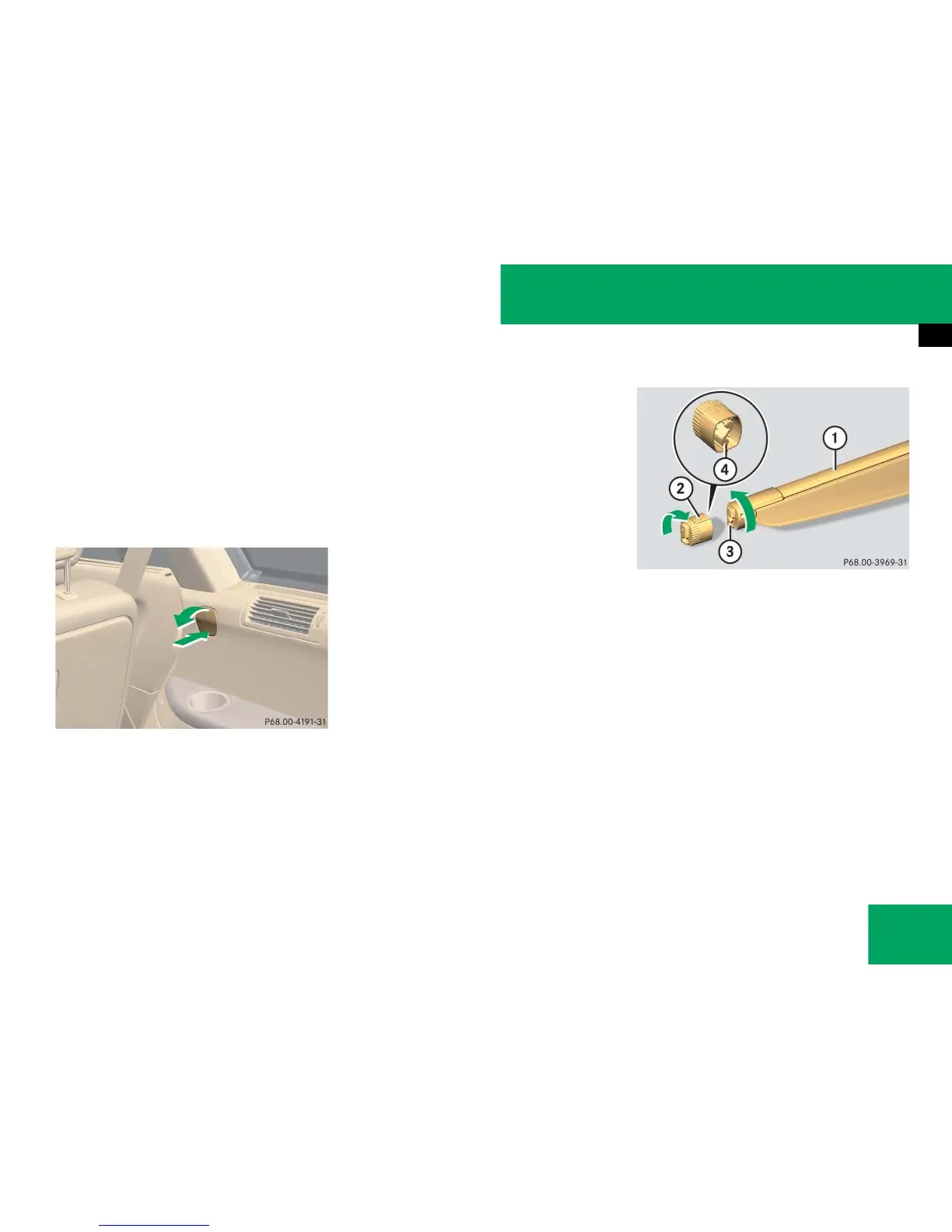

1 Blind
2 Extension
3 Guidings
4 Guide pins
왘 Position extension 2 over blind 1.
Guide pins 4 must point directly at
guidings 3.
왘 Turn extension 2 and blind 1 in op-
posite directions as indicated by the ar-
rows.
Guide pins 4 must engage in
guidings 3.
!
For installation behind third-row seats,
the blind extensions must not be installed.
Otherwise, the blind could be damaged.
i
To avoid loss of the mount covers, keep
them in a safe place while not in use, e.g. the
glove box.
i
The cargo compartment cover blind has two
extensions which are connected to the cargo
compartment cover blind by cords.
The cargo compartment cover blind must be
extended for installation behind the second-row
seats.
