Practical hints
Fuses

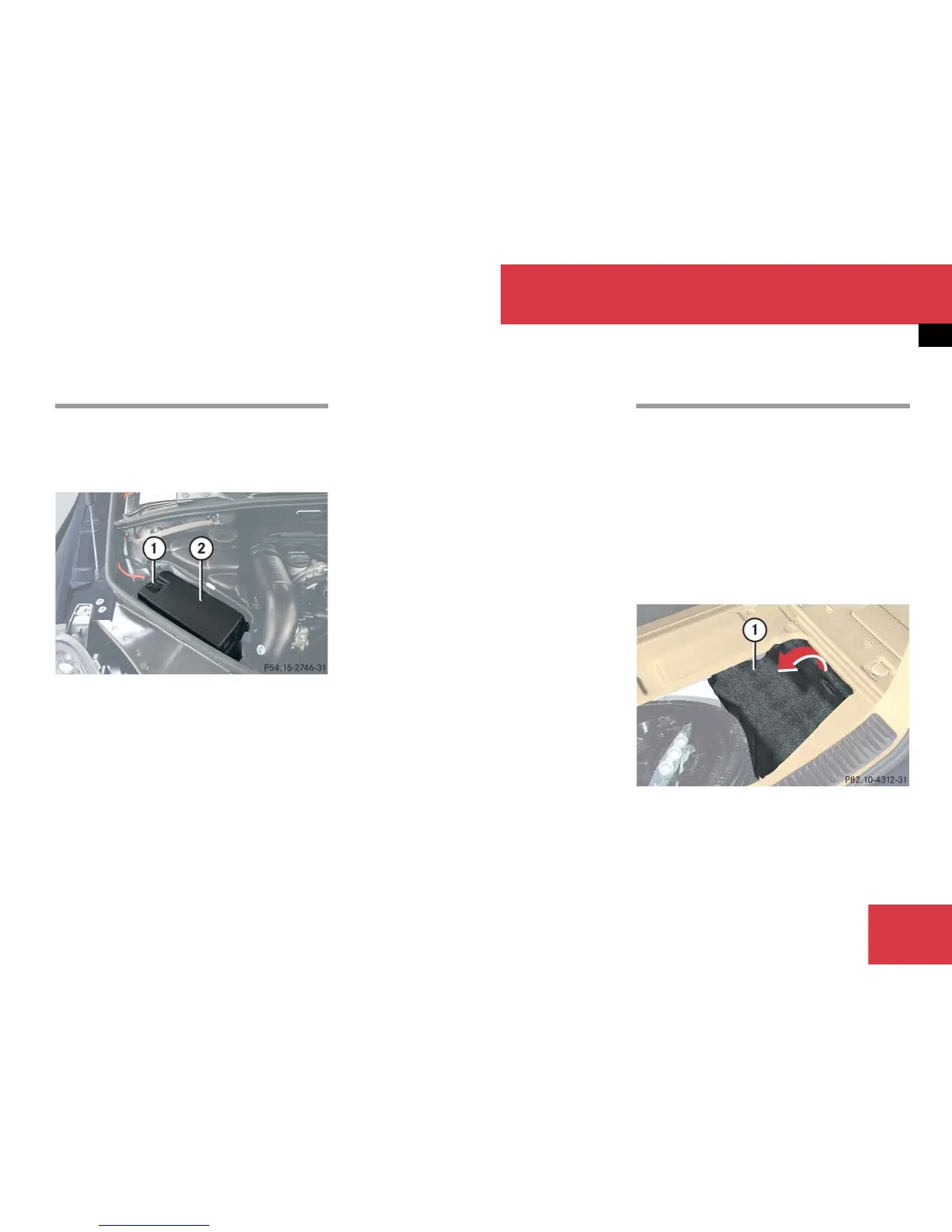

Fuse box in engine compartment
The main fuse box is located on the pas-
senger side of the engine compartment.
왘 Open the hood (컄 page 364).
1 Clamp
2 Main fuse box cover
왘 Release clamp 1.
왘 Lift fuse box cover 2 up.
왘 Install fuse box cover in reverse order.
왘 Close the hood after checking or re-
placing fuses (
컄 page 366).
Fuse box in cargo compartment
The fuse box is located under the cargo
compartment cover on the right-hand side
of the spare wheel well.
왘 Open the tailgate (컄 page 123).
왘 Lift the cargo compartment cover
(
컄 page 472).
왘 Secure cargo compartment cover with
strap (
컄 page 473).
1 Cover
왘 Fold cover 1 to the left as indicated by
the arrow.
!
The fuse box cover must be installed
properly to prevent moisture and/or dirt from
entering the fuse box and possibly impairing fuse
operation.
