Controls in detail
Loading
ì•« With the cargo compartment expanded
in part (
컄 page 301), use holders
behind C-pillars 2 and the cargo
tie-down rings in the third-row footwell
(
컄 page 300).
ì•« With the cargo compartment fully
expanded (
컄 page 302), use holders
behind B-pillars 1 and the cargo
tie-down rings in the second-row
footwell (
컄 page 300).
왘 Open the zipper on the partition net
package.
왘 Roll out the partition net.
왘 Unfold the partition net.
The partition net bars must audibly en-
gage.
Installing the partition net

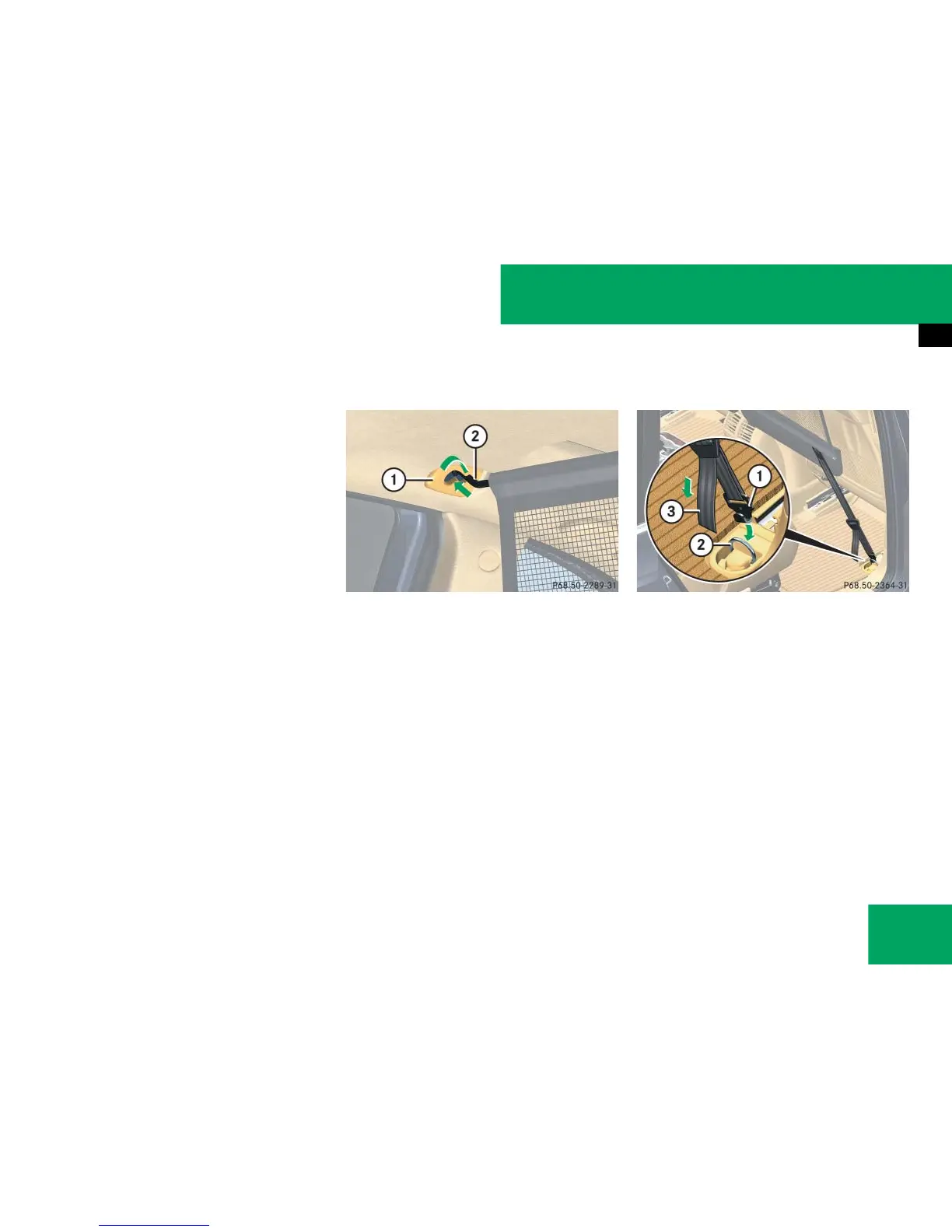

Partition net installed behind the B-pillar
1 Holder
2 Partition net bar
왘 Hang partition net bar 2 on holder 1
as indicated by the arrow.
왘 Push partition net bar 2 forward into
holder 1 in direction of arrow.
Pulling the partition net tight
Belt hook attached in the second-row
footwell
1 Belt hook
2 Cargo tie-down ring
3 Tightening belt
왘 Hook belt hook 1 into cargo tie-down
ring 2 in direction of arrow.
왘 Pull tightening belt 3 by the loose end
in direction of arrow until the partition
net is pulled tight.
왘 After driving a short distance, make
sure the partition net is still tight and, if
necessary, pull it tight again.
