CPM-QE/ RCM
HARMAN BECKER AUTOMOTIVE SYSTEMS GMBH 2018-05-30 16:03:00
CONFIDENTIAL / ALL RIGHTS RESERVED Regulatory Compliance Management
Manual Hermes page 12 of 18

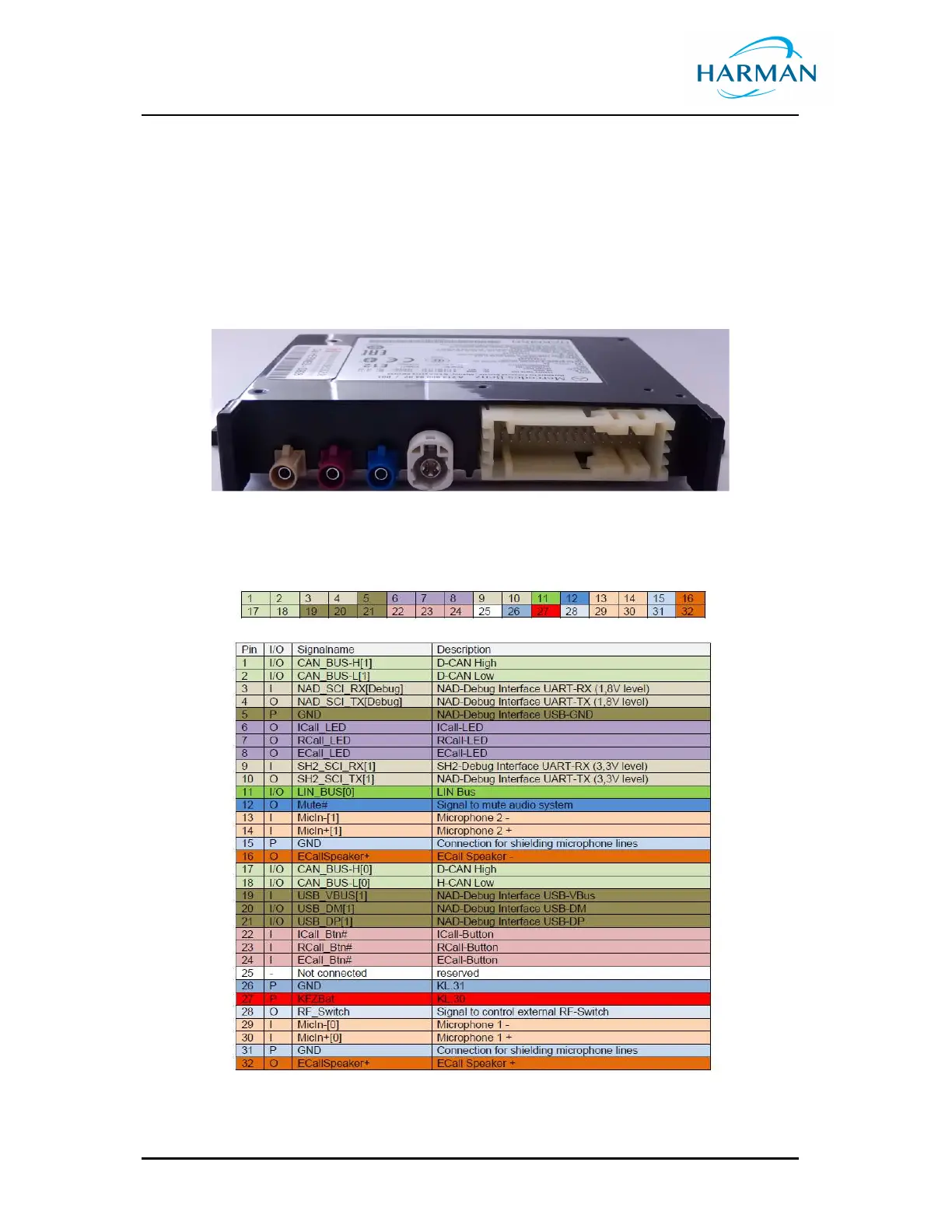

3.1.8 Connectors
The following picture shows the different Hermes connectors.
3.1.8.1 Hermes
The pinning of the Systemconnector is as following:
Systemconnector
GNSS
USB
LTE1
main antenna
LTE2
diversity antenna
