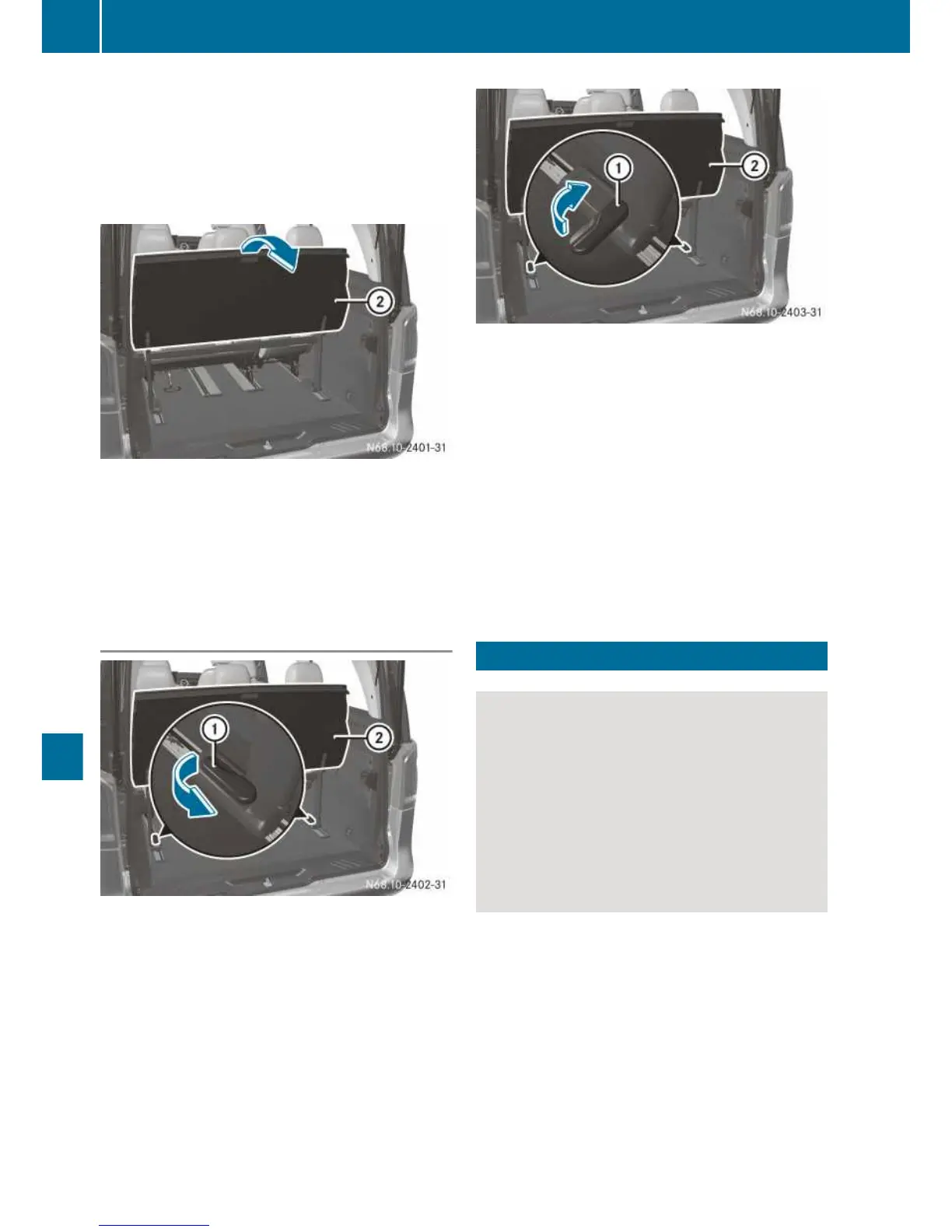

X
To fold up to a 70° angle: pull handle : in
the direction of the arrow.
The luggage compartment partition is
released.
X
Swing luggage compartment partition ;
upwards.
Make sure that the luggage compartment parti-
tion is always folded down when the vehicle is
moving.
X
To fold down: pull luggage compartment par-
tition ; down until it engages.
Luggage compartment partition ; is locked.
Removing/fitting
X
To remove: fold up luggage compartment
partition ; (Y page 333).
X
Swing lever : inwards.
Luggage compartment partition ; pops out.
X
Remove luggage compartment partition ;.
If possible, fit the luggage compartment parti-
tion with the help of a second person.
X
To fit: place luggage compartment parti-
tion ; into the vehicle at an angle.
X
Rotate luggage compartment partition ; in
the vehicle and insert it into the guide rails.
The guide rails have triangular markings at the
place to be inserted which must be at the
same height as levers :.
X
Swing lever : outwards.
Luggage compartment partition ; engages.
X
Fold luggage compartment partition ; down.
Carrier systems
G
WARNING
When a load is transported on the roof, the
vehicle's centre of gravity rises and the han-
dling changes. If you exceed the maximum
roof load, the handling as well as steering and
braking characteristics are severely affected.
There is a risk of an accident.
Always observe the maximum roof load and
adapt your driving style.
You will find information about the maximum
roof load under "Lashing points and carrier sys-
tems" (Y page 395).
!
Make sure that:
R
the screws for the roof carrier are tightened
to a maximum torque of 10 Nm in the threa-
ded holes provided and
R
there is a minimum bolt penetration of
4 turns.
Only fit roof carriers and rear racks that have
been approved or recommended for
334
Carrier systems
Transporting loads with the vehicle
