• Belt surfaces roughened.
• Signs of wear on edges or outer surfaces of belt.
Checking Power Trim Fluid
1. Tilt outboard to the full up position.
2. Rotate the tilt support bracket down.
3. Lower outboard until tilt support bracket rests on pedestal.
4. Remove the power trim fill cap. The fill cap only requires 1/4
turn to remove.

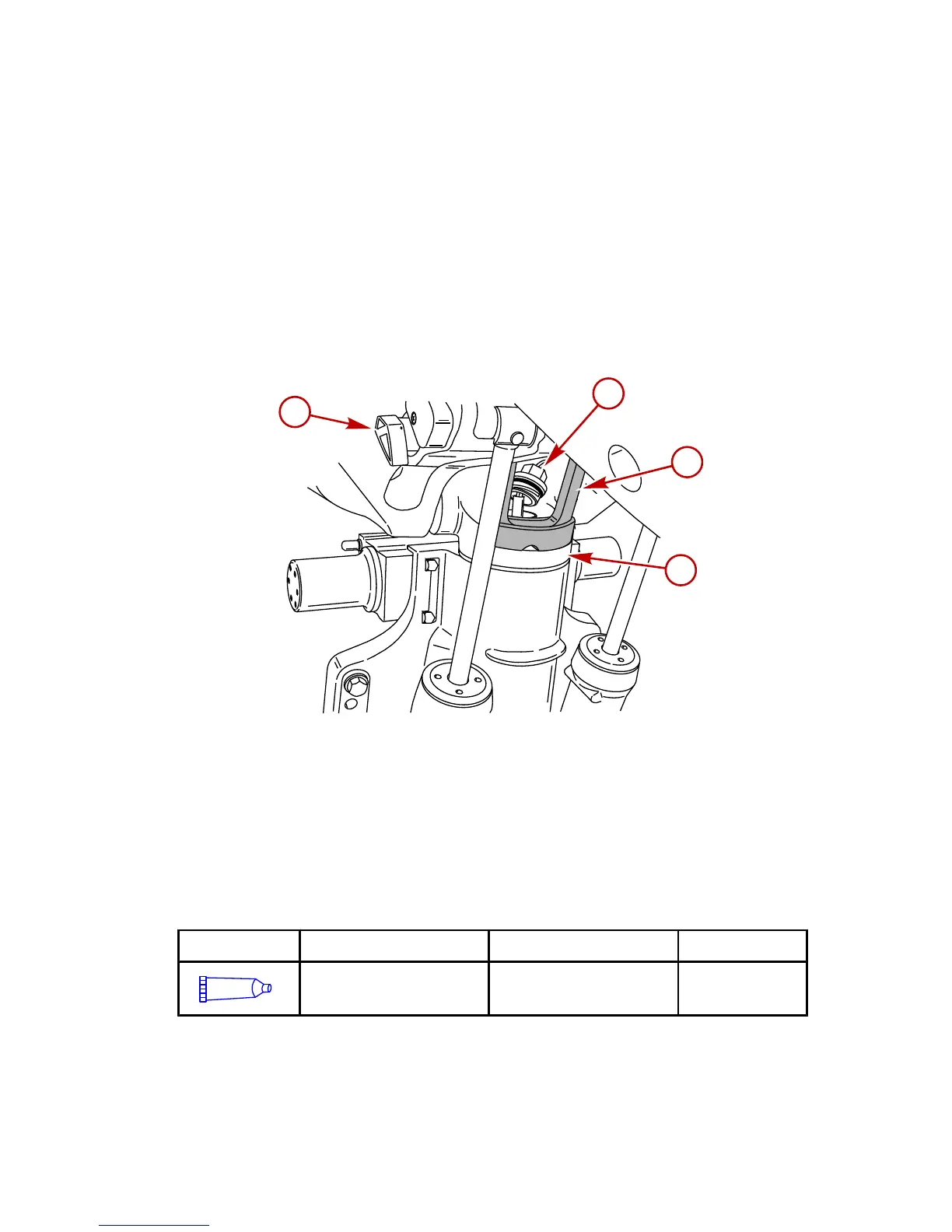

ob01526
a
d
b
c
a - Tilt support lever
b - Power trim fill cap
c - Tilt support bracket
d - Pedestal
5. The fluid level should be approximately 25 mm (1 in.) from the
top of the fill neck. Add Quicksilver or Mercury Precision
Lubricants Power Trim & Steering Fluid. If not available, use
automotive automatic transmission fluid (ATF).
Tube Ref No. Description Where Used Part No.
114
Power Trim and
Steering Fluid
Power trim system 92-802880A1
6. Reinstall the power trim fill cap. Tighten fill cap 1/4 turn. Cap
will snap in place. Do not tighten beyond this point.
