Section 5 - Storage
90-8M0113857
eng
DECEMBER 2015
Page 73

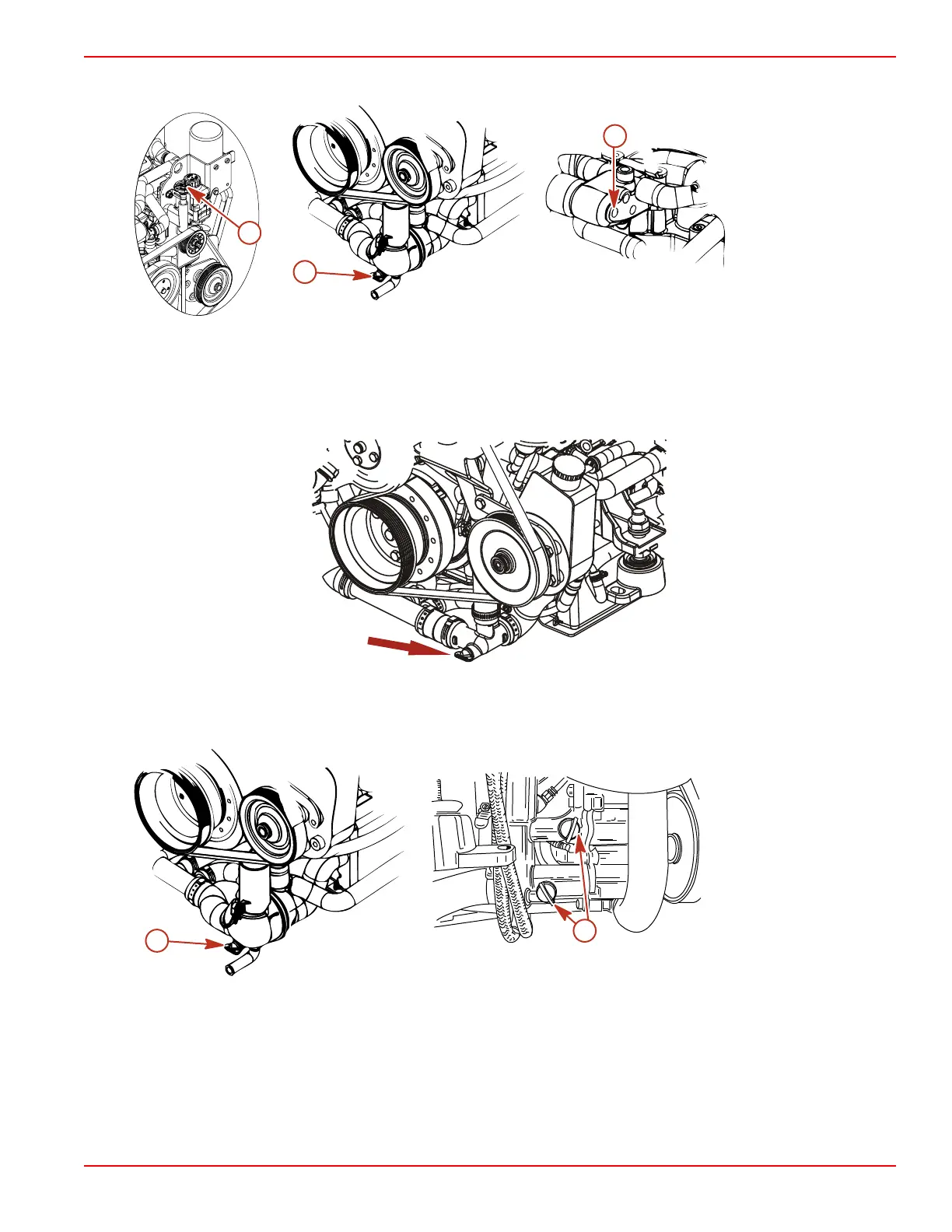

Manual Single-Point Drain System, Seawater cooled models
Non-ECT shown, ECT similar
a -
Blue handle
b -
Blue drain plug location
4.3 ECT Single-Point Drain System with Plug
45951
Blue drain plug
Three-Point Manual Drain System, Seawater cooled
Note two plugs on
seawater pump
a -
Blue drain plug
b
a
b
6128
a
a
6126
80
82
