75, 90 and 115 (4-STROKE) INSTALLATION MANUAL
Page 7 of 18
Electrical, Hoses, and Control Cables
IMPORTANT: Warning Horn Requirement – The remote control or key switch
assembly must be wired with a warning horn. This warning horn is used with the
engine warning system.
Front Cowl Grommet
Pull up the cowl seal and remove the cover from the bottom cowl.

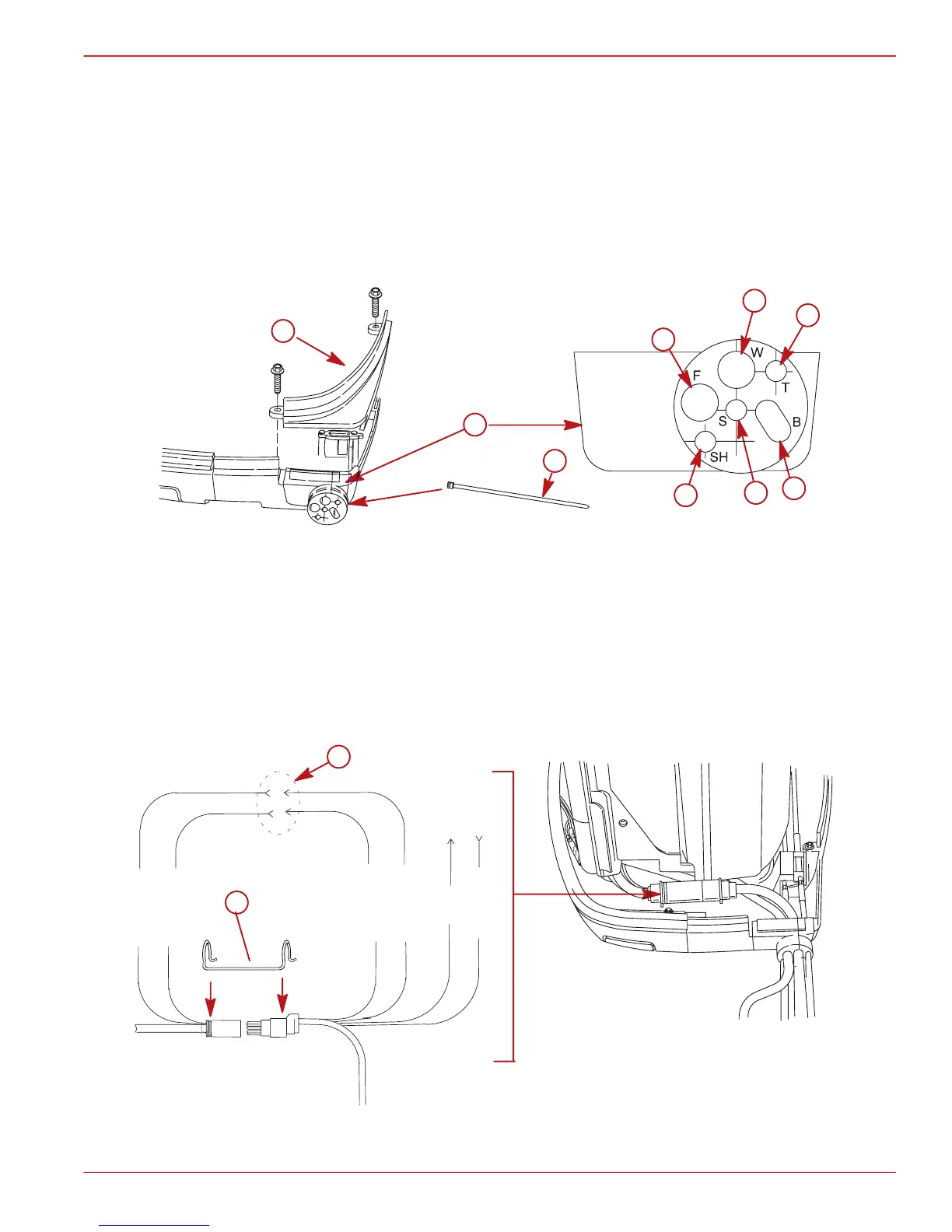

Route the hoses, wiring and cables through the correct openings in the rubber grommet as
shown.
a
b
c
d
e
f
g
h
i
a-Cover
b-Rubber Grommet
c-Fuel Hose Opening
d-Remote Wiring Harness Opening
e-Throttle Cable Opening
f-Battery Cables Opening
g-Shift Cable Opening
h-Speedometer Tube
i-Sta-Strap (Included in Parts Bag) – Tie
Around Grommet After Components
are Installed
Remote Wiring Harness
Route wiring harness through the rubber grommet. Connect wiring. Push the retainer over
the exposed ends of the connectors. This will hold the connectors together.
b
BLU/WHT
GRN/WHT
BRN/WHT
TAN
BLU/WHT
GRN/WHT
a
a-Power Trim Connections
b-Retainer – Push Over Connector Ends
To Next Page
