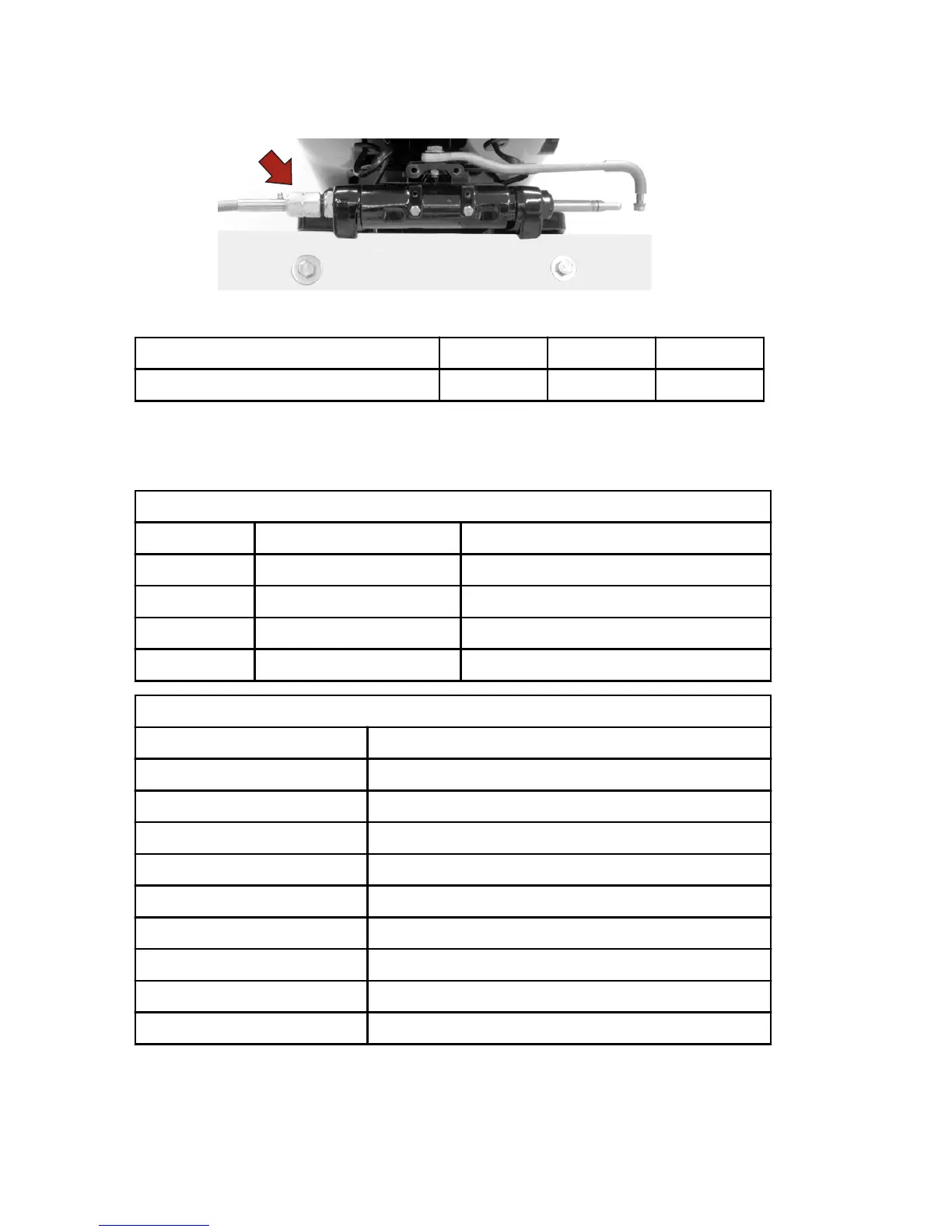

3. Tighten the nut to the specified torque.

47708

Description Nm lb‑in. lb‑ft

Nut 47.5 35

Fastening the Outboard to the Transom

MOUNTING BOLTS

Outboard Transom Mounting Hardware ‑ Supplied with Outboard

Part Number Part Name Description

67755‑1 Outboard mounting bolt ½‑20 x 4.50 in. long (2.25 in. thread)

826711‑17 Nylon insert locknut ½‑20

28421 Flat washer 1.50 in. diameter

54012 Flat washer 0.875 in. diameter

Available Outboard Mounting Bolts

Part Number Description

67755005 ½‑20 x 2.50 in. long (1.25 in. thread)

67755006 ½‑20 x 3.50 in. long (1.25 in. thread)

814259 ½‑20 x 4.00 in. long (2.25 in. thread)

67755‑1 ½‑20 x 4.50 in. long (2.25 in. thread)

8M0033366 ½‑20 x 5.00 in. long (3.25 in. thread)

67755‑003 ½‑20 x 5.50 in. long (3.25 in. thread)

67755‑2 ½‑20 x 6.50 in. long (2.75 in. thread)

8M0028080 ½‑20 x 7.50 in. long (2.75 in. thread)

8M0032860 ½‑20 x 8.00 in. long (2.75 in. thread)
