Mercury 80 User Manual

Open the fuse holder and look at the silver colored band inside the fuse. If the
band is broken, replace the fuse. Replace fuse with a new fuse with the same
rating.

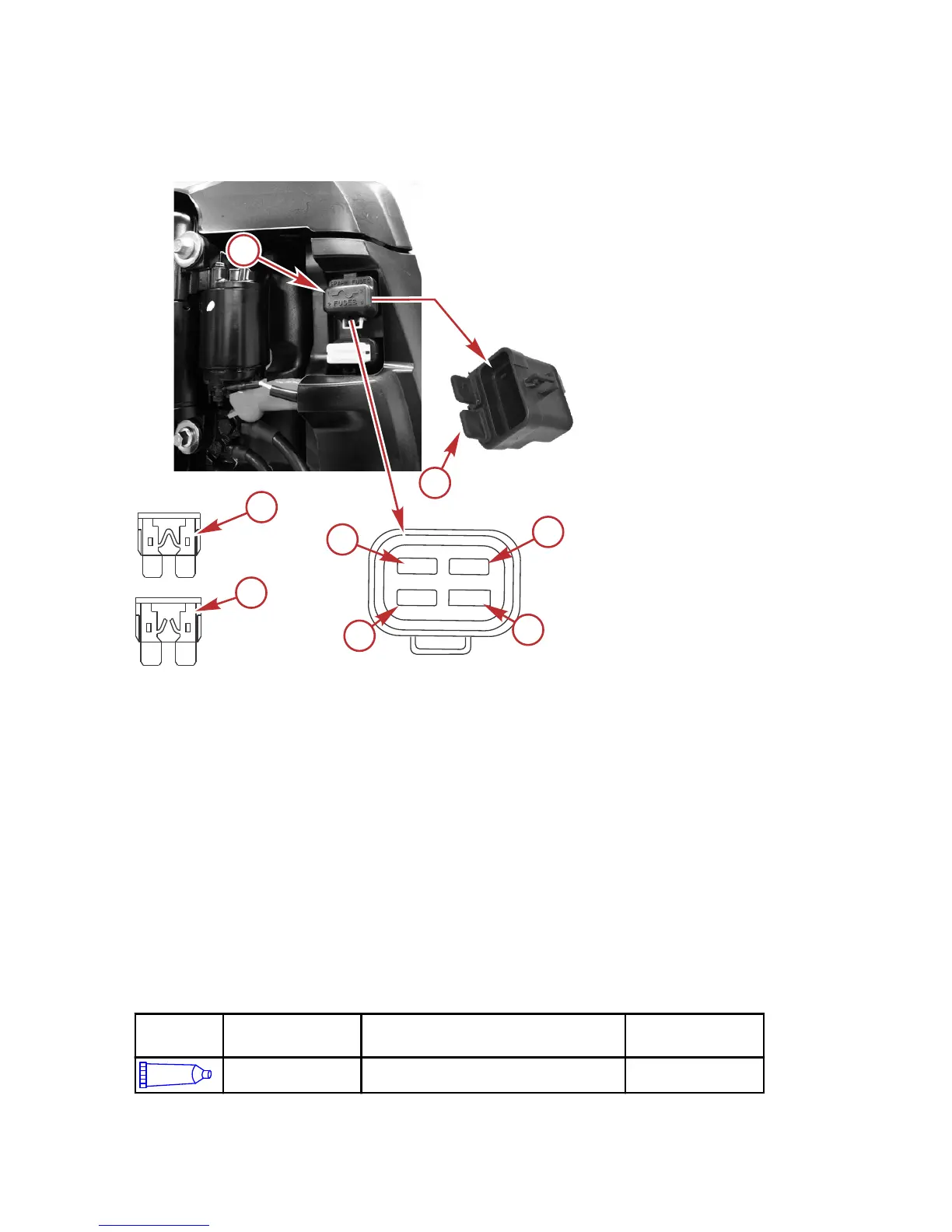

a - Cover
b - Spare fuse holders
c - Fuse 3 ‑ HELM 15 amp ‑ 14 pin remote control harness/cowl trim
switch
d - Fuse 4 ‑ IGN. 20 amp ‑ ignition system
e - Fuse 2 ‑ FUEL 20 amp ‑ fuel delivery
f - Fuse 1 ‑ DIAG. 2 amp ‑ diagnostics/vessel (accessory) harness
g - Good fuse
h - Blown fuse
Lubrication Points
1. Lubricate the following with Extreme Grease or 2‑4‑C with PTFE.
Tube Ref
No.
Description Where Used Part No.
Extreme Grease Propeller shaft 8M0071842
20
20
2
15
a
b
c
d
e
f
g
h
53784
MAINTENANCE
80 eng
