Getting to Know Your Power Package
Page 16 90-860174050 JUNE 2005

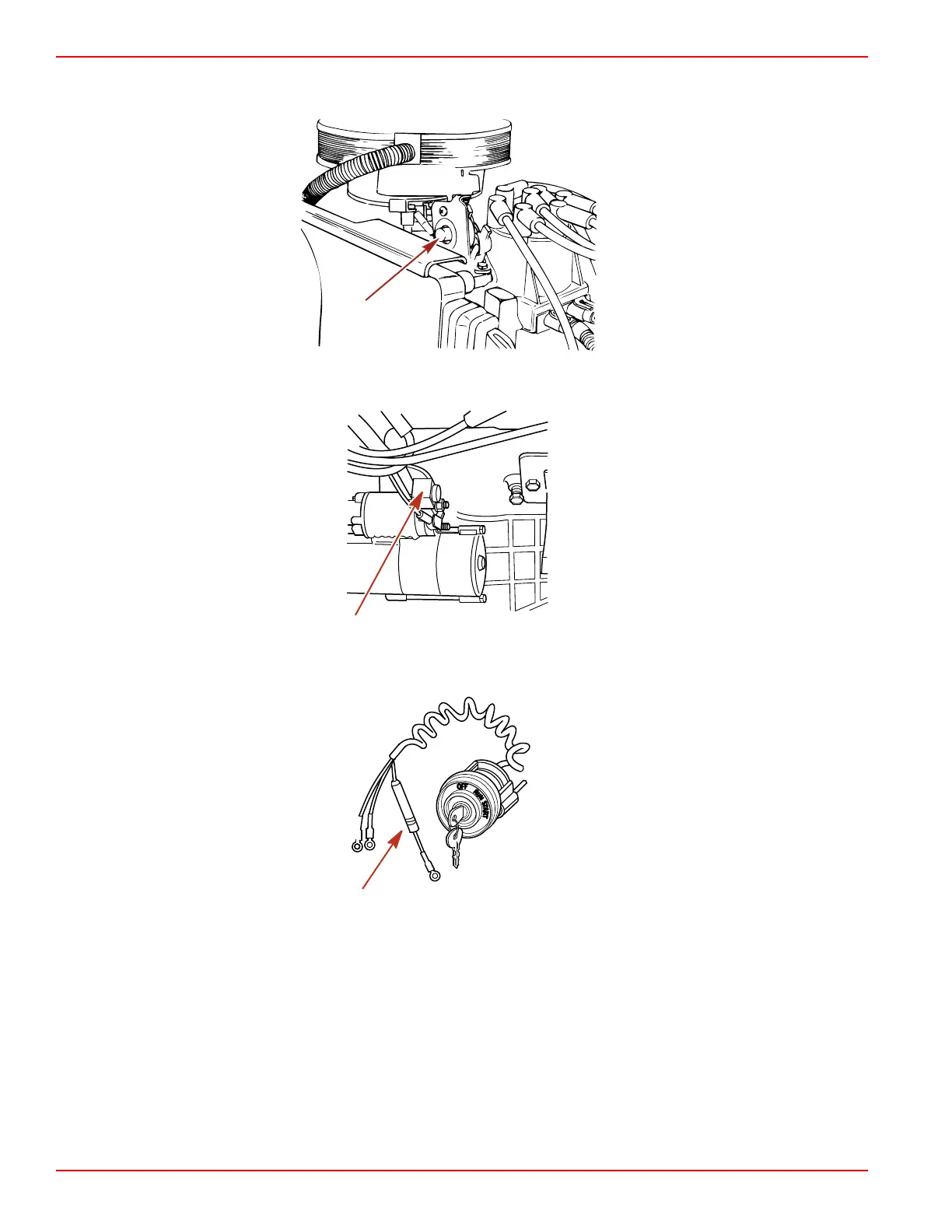

1. A circuit breaker provides protection for engine wiring harness and the instrumentation
power lead. Reset by pushing the red "RESET" button in.
2. A 90 amp fuse is located on the large post of the starter solenoid. This fuse is designed
to protect the engine wiring harness if an electrical overload occurs.
mc74907-1
3. A 20 amp fuse may be located in the ignition switch "I" terminal lead to protect the
electrical system. Check for blown fuse if the ignition key is turned to the "START"
position and nothing happens (and circuit breaker is not tripped).
mc70525-1
