Getting to Know Your Power Package
90-860174050 JUNE 2005 Page 15

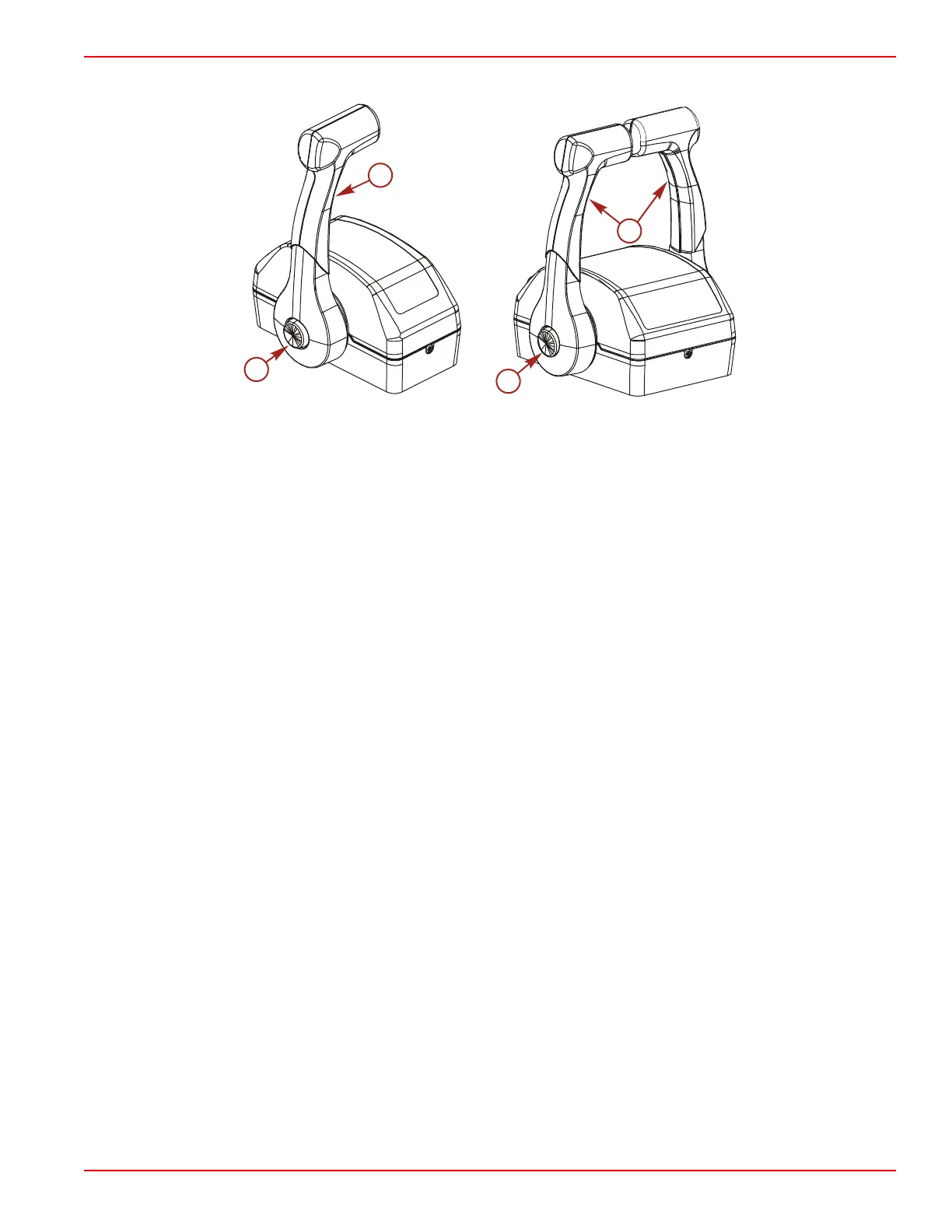

Console Mount Features
a - Throttle Only Button b - Control Handle
Throttle Only Button ‑ Allows engine throttle advancement without shifting the engine. This
is done by disengaging the shift mechanism from the control handle. The throttle only
button can be depressed only when the remote control handle is in the neutral position.
Control Handles ‑ Operation of the the shift and throttle are controlled by the movement of
the control handle. Push the control handle forward from neutral with a quick firm motion
to the first detent for forward gear and continue pushing forward to increase speed. Pull
the control handle back from neutral with a quick firm motion to the first detent for reverse
gear and continue pushing back to increase speed.
Control Handle Tension Adjustment Screw ‑ (not visible) This screw is used to adjust the
effort required to move the remote control handle. Refer to instructions provided with
remote control for complete adjustment instructions.
Electrical System Overload Protection
If an electrical overload occurs, a fuse will blow or the circuit breaker will trip open. The
cause must be found and corrected before replacing the fuse or resetting the circuit
breaker.
NOTE: In an emergency, when the engine must be operated and the cause for the high
current draw cannot be located and corrected, turn off or disconnect all accessories
connected to the engine and instrumentation wiring. Reset the circuit breaker. If the breaker
remains open, the electrical overload has not been eliminated. Further checks must be
made on the electrical system. Contact your authorized dealer.
