3. Press the lever down.

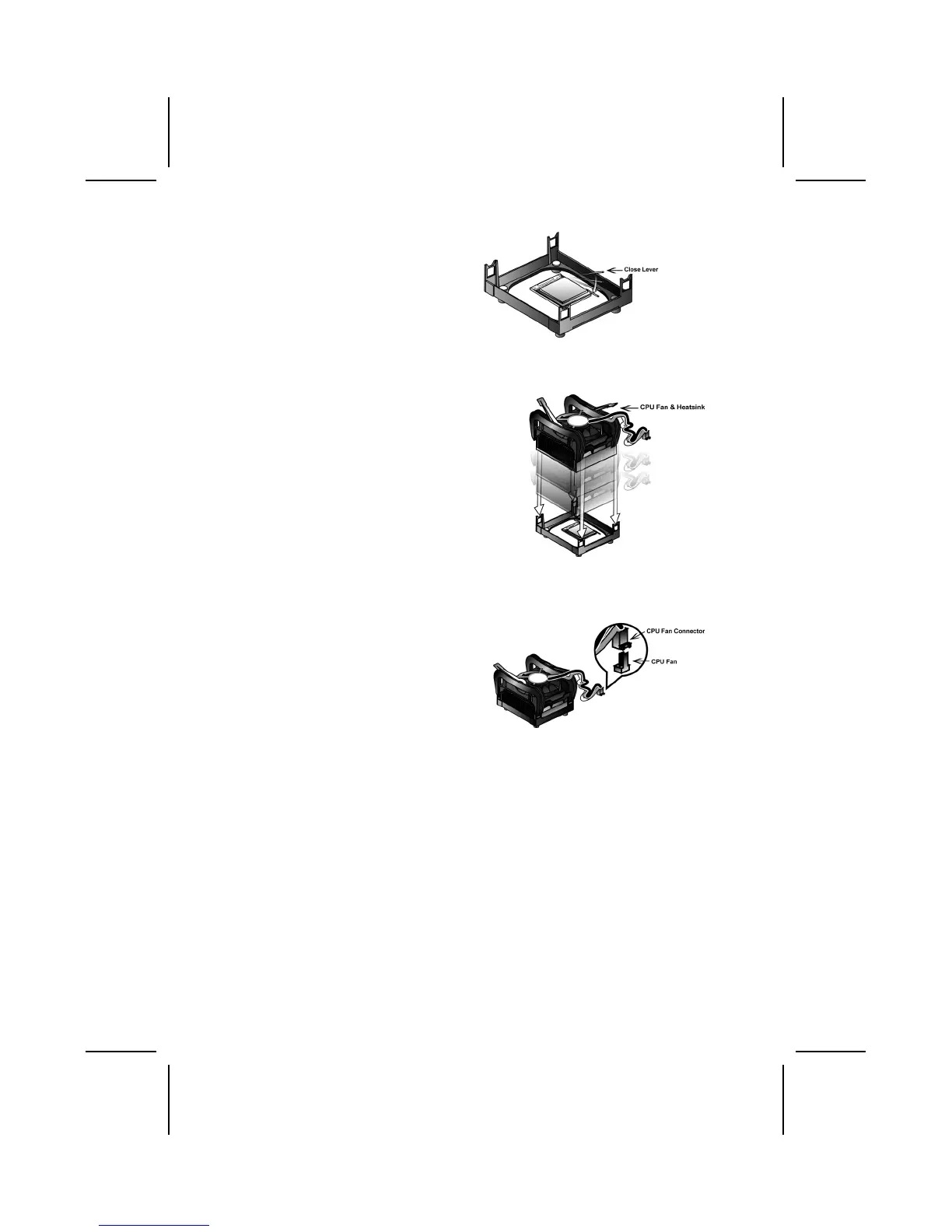

4. Apply thermal grease on top of the CPU.
5. Put the CPU Fan down
on the retention module
and snap the four reten-
tion legs of the cooling
fan into place.
6. Flip the levers over to lock the heat sink in place.
7. Connect the CPU Cool-
ing Fan power cable to
the CPUFAN1 connec-
tor. This completes the
installation.
Notes:
To achieve better airflow rates and heat dissipation, we suggest that you
use a high quality fan with 4800 rpm at least.
CPU fan and heatsink installation procedures may vary with the type of CPU
fan/heatsink supplied. The form and size of fan/heatsink may also vary.
