Section 2 - Initial Screens and Setup Wizard
Page 40 90-8M0109374 eng JUNE 2016

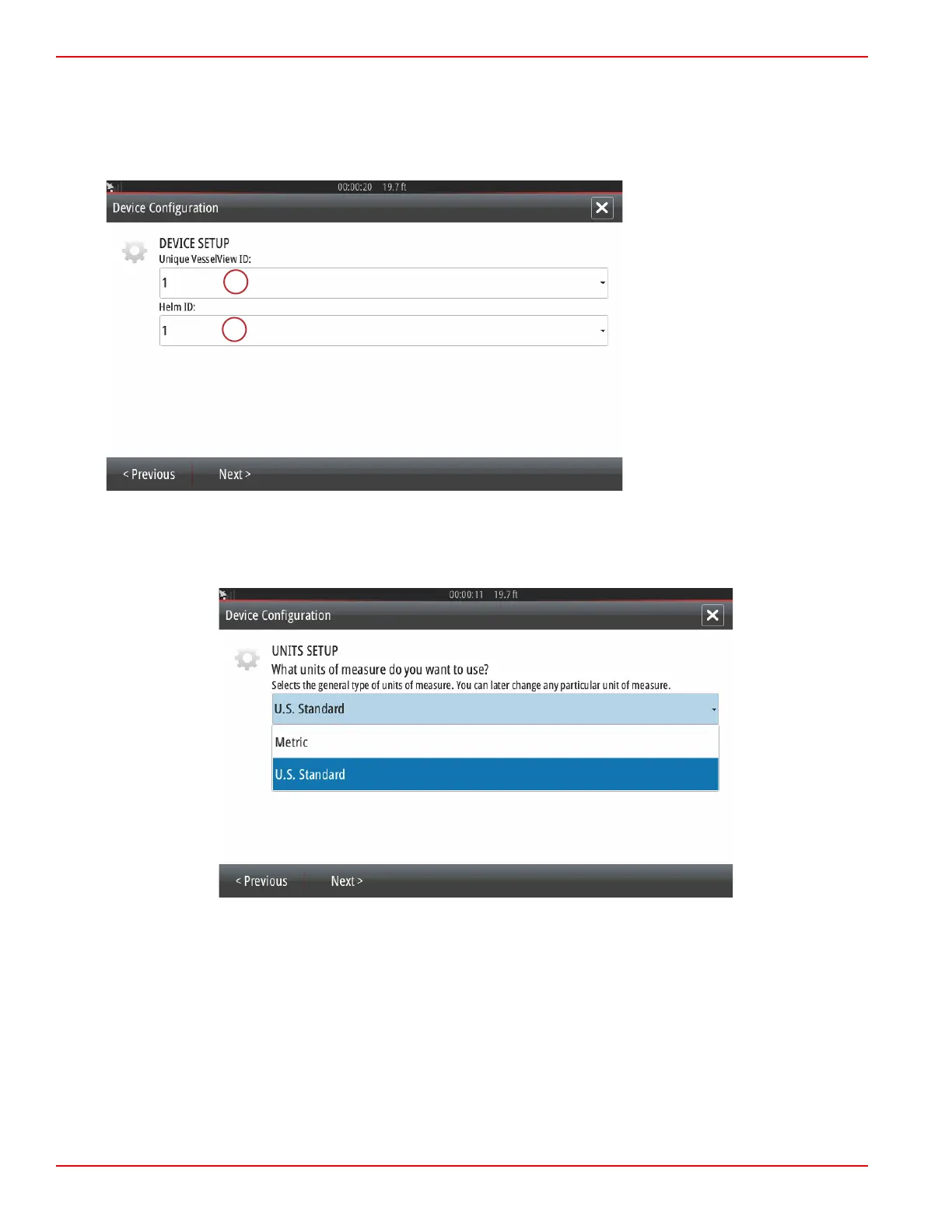

Device Setup
In the Device Setup screen, use the rotary knob or touch the menu fields to select the proper options. If using multiple
VesselView devices, be sure to assign unique numbers to each unit, to avoid data problems. Helm numbers should match the
location of the individual VesselView unit. It is common to make the main helm 1 and the secondary helm 2. Select Next to
continue.
a - VesselView identification field
b - Helm identification field
Units Setup
Select the units of measure that VesselView will display on‑screen data; speed, distance, and volumes. Particular units of
measure can be changed later.
Tank Configuration
In the tank setup screen, tank type, capacity, and tank name can be assigned for up to 8 tanks. The % column will display the
live tank volume. Selecting the refresh button will query the tank sensors and refresh the readings.
The unmonitored tank is a tank that does not have a sensor associated with it.
