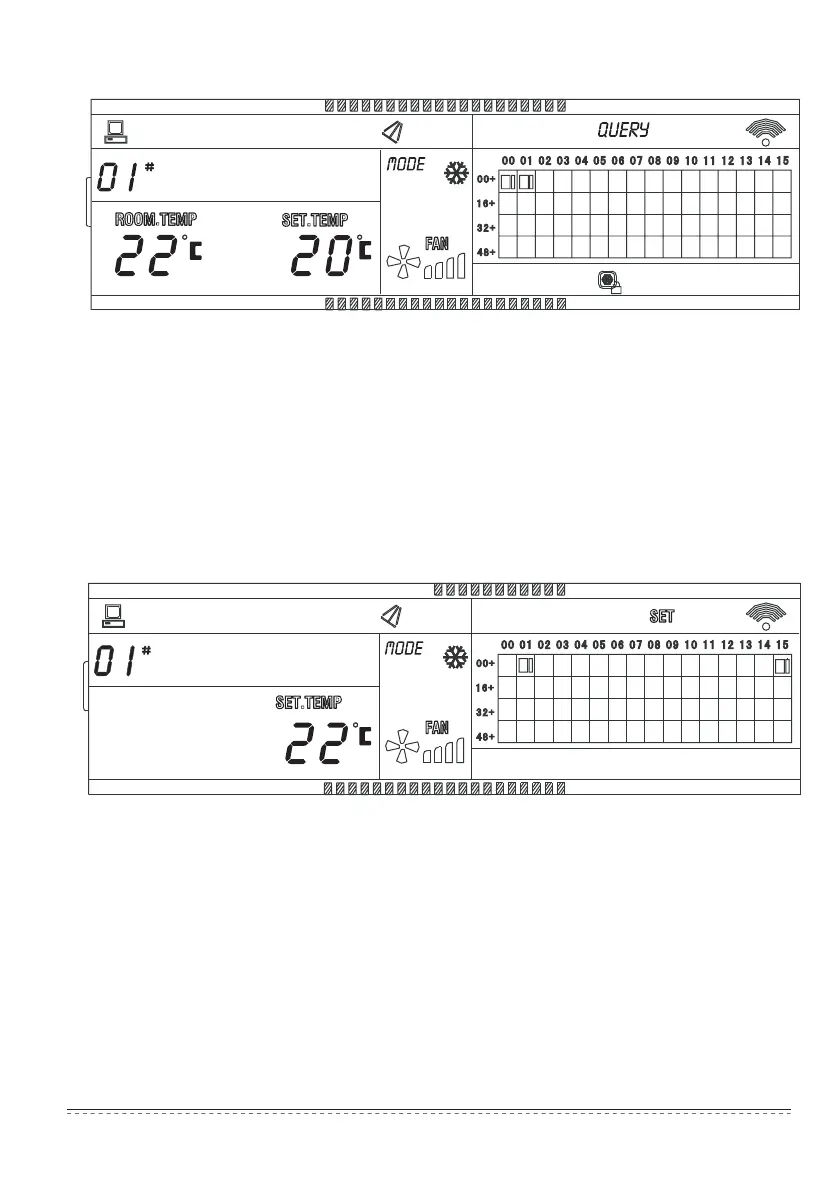

Fig 2.6 The example diagram of the query page
Fig 2.7 The example diagram of setting page
2)
Description of the query page
Installation & Owner‘s Manual
21
①The LCD display shows the query page, and the air conditioner with the address of
01 is being queried.
②Mode of the air conditioner with the address 01 is: Cooling, strong air, swing on,
indoor temperature 22°C,set temperature 20°C, cooling mode “lock”.
③In the array, only the big and small black dots at (00+,00) and (00+,01) are luminous .
It indicates the in-service and power-on status of the air conditioners with the addresses of
00 and 01.
④The centralized controller communicates with the computer normally.
3) Description of the setting page
①The LCD display shows the setting page, and queries the air conditioner with the
address of 01 .
②THe mode of the air conditioner with the address 01 is: Cooling, strong air, swing on,
set temperature 22°C, cooling.
③In the array,only the big black dots at (00+,01) to (00+,15) are luminous. It indicates
the air conditioners with the addresses 01 and 15 are in service.
④The centralized controller communicates with the computer normally.
