Midea CS11M-09HRFN1-MX0W User Manual

9

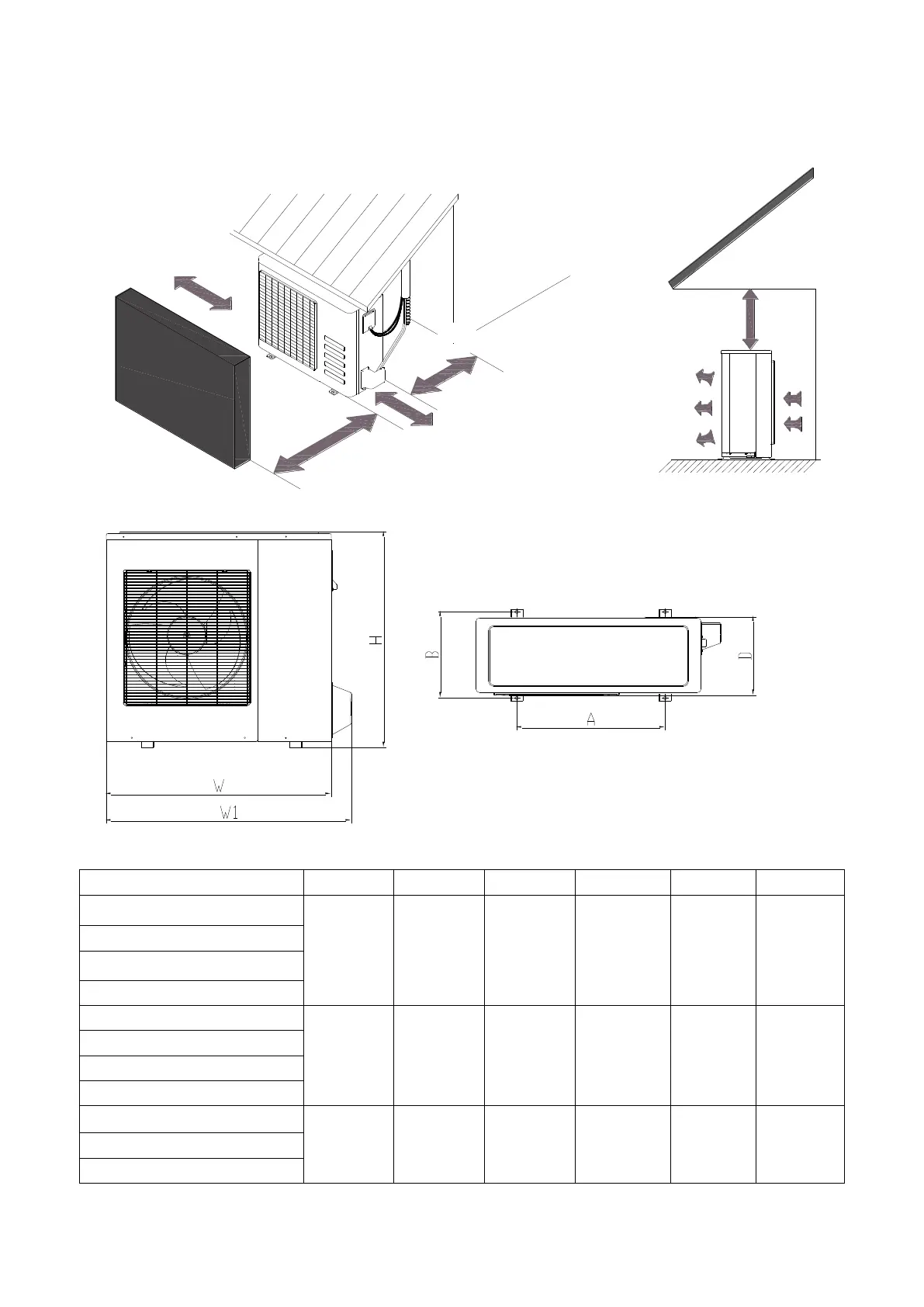

3.2 Outdoor Unit
Note: The above drawing is only for reference. The appearance of your units may be different.
Model
W in(mm)
D in(mm)
H in(mm)
W1 in(mm)
A in(mm)
B in(mm)
MOB30-09HFN1-BW0W
31.5(800)
13.11(333)
21.81(554)
34.25(870)
20.24(514)
13.39(340)
MOB30-12HFN1-BV0W
MOB30-09HFN1-MX0W
MOB30-12HFN1-MV0W
MOCA30-09HFN1-MZ65W
33.27(845)
14.29(363)
27.64(702)
35.98(914)
21.26(540)
13.78(350)
MOCA30-12HFN1-MZ10W
MCA30-17HFN1-MW0W
MOCA30-18HFN1-MT0W
MOD30-24HFN1-MT0W
37.24(946)
16.14(410)
31.89(810)
40.55(1030)
26.50(673)
15.87(403)
MOD30-30HFN1-MR0W
MOD30-36HFN1-MP0W
M o re th a n 6 0 c m (2 3 .6 in )
M o re th a n 7 0 c m (2 7 .6 in )
M o re th a n 3 0 c m (1 1 .8 in )
M o re th a n 6 0 c m (2 3 .6 in )
(S e rv ic e s p a c e )
F e n c e o r
o b s ta c le s
M o re th a n 3 0 c m (1 1 .8 in )
