This electrical water heater shall be installed on a solid wall. If the strength of the wall
cannot bear the load equal to two times of the total weight of the heater filled fully with
water, it is then necessary to install a special support.
Incase of hollow bricks wall, ensure to fill it with cement concrete completely.
After selecting a proper location, determine the positions of the two install holes used for
expansion bolts with hook (determined according to the specification of the product you
select). Make two holes in the wall with the corresponding depth by using a chopping bit
with the size matching the expansion bolts attached with the machine, insert the screws,
make the hook upwards, tighten the nuts to fix firmly, and then hang the electric water
heater on it (see Fig.2).
3. Install the supply socket in the wall. The requirements for the socket are as
follows:250V/10A, single phase, three electrodes. It is recommended to placed the socket
on the right above the heater. The height of the socket to the ground shall not be less
than 1.8m (see Fig.3). If there is fault on power cable, it should be replaced by the
manufacturers, agencies or qualified person who is able to do this so as to ensure the
safety.
4. If the bathroom is too small, the heater can be installed at another place without
sun-scorched and rain-drenched. However, in order to reduce the pipeline heat losses, the
installation position of the heater shall be closed to the location shall be as near as
possible to the heater.
Installation Instruction
PRODUCT INSTALLATION

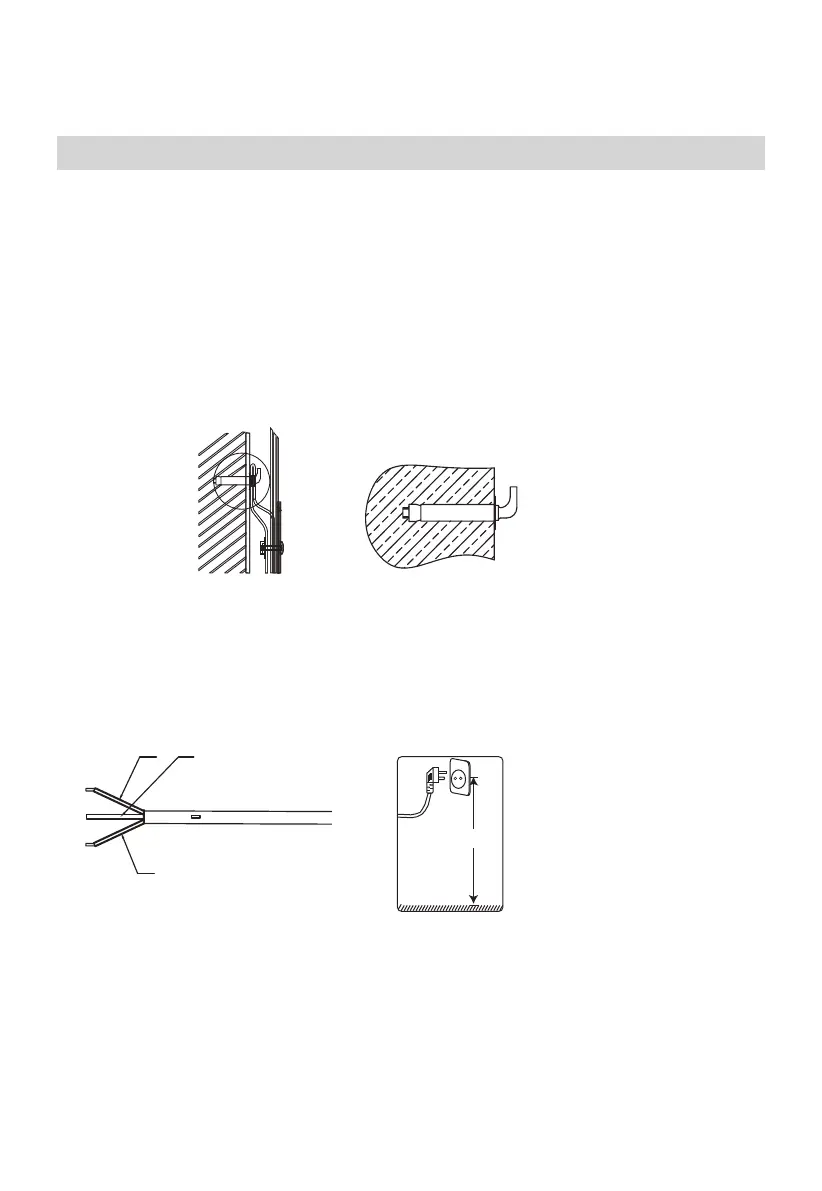

(Fig.3)
N (Blue)
L (Brown)
E (Yellow/Green)
Ground
≥1.8m
(Fig.2)
Expansion bolt
(with hook)
