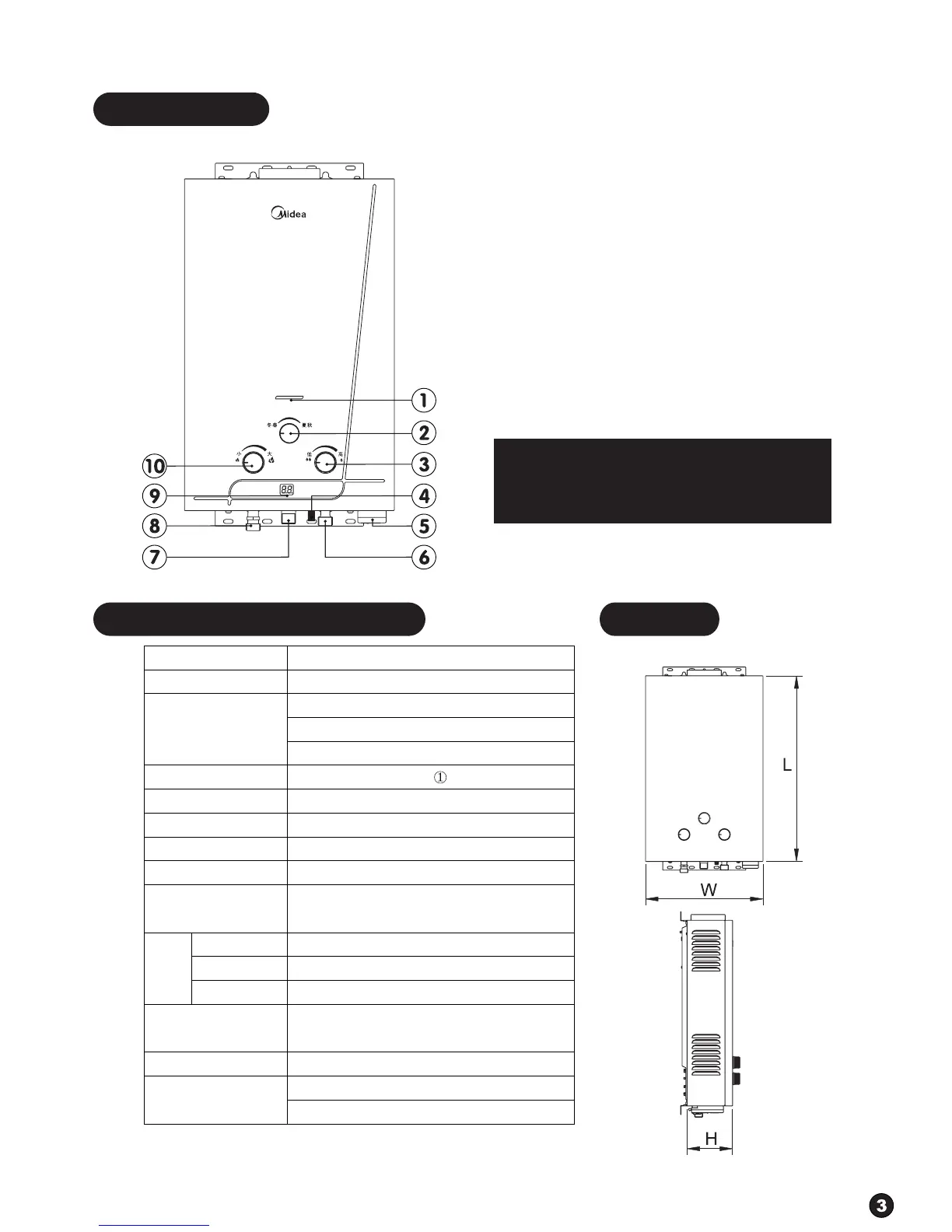

External Structure:
① Viewport
② Season Change Knob
③ Water Temperature Regulation Knob
④ Drain Valve
⑤ Battery Case
⑥ Cold Water Inlet
⑦ Hot Water Outlet
⑧ Gas Inlet
*⑨ Temperature Display
⑩ Firepower Regulation Knob
* is peculiar to certain models.
Note: All the diagrams displayed in this manual are based
on the appearance of the standard gas water heater, just
for illustration. The actual appearance is subject to the
purchased model.
Model
Gas Type
Rated Gas Pressure
Rated Thermal Load
Control Mode
Exhaust Mode
Ignition Mode
Applicable Water Pressure
(
Rated Yield Capacity of
the Hot Water
Temperature Rise: 25k)
Gas Inlet
Cold Water Inlet
Hot Water Inlet
Dimensions
(L×W×H)
Net Weight
Diameter of the
Smoke Vent
JSQ ①- ②* Series
Liquefied Petroleum Gas, Natural Gas and
Manufactured Gas
Liquefied Petroleum Gas: 2800Pa
Natural Gas: 2000Pa
Manufactured Gas: 1000Pa
kW
Outlet Control
Flue-type
Water Control Automatic Continuous Pulse Ignition
See the rating plate on the water heater for details
② kg/min
G 1/2
G 1/2
G 1/2
See the paper pasted on the packing box for details
See the paper pasted on the packing box for details
Con-
nector
Specifi-
cations
Note: ① can be 12\14\16\20\22\24\... for different models.
② can be 6\7\8\9\10\11\12\... for different models.
6 litre: Φ90mm 8 litre or above: Φ 110mm
7 litre: Φ 90mm or Φ110mm
