5. Wiring

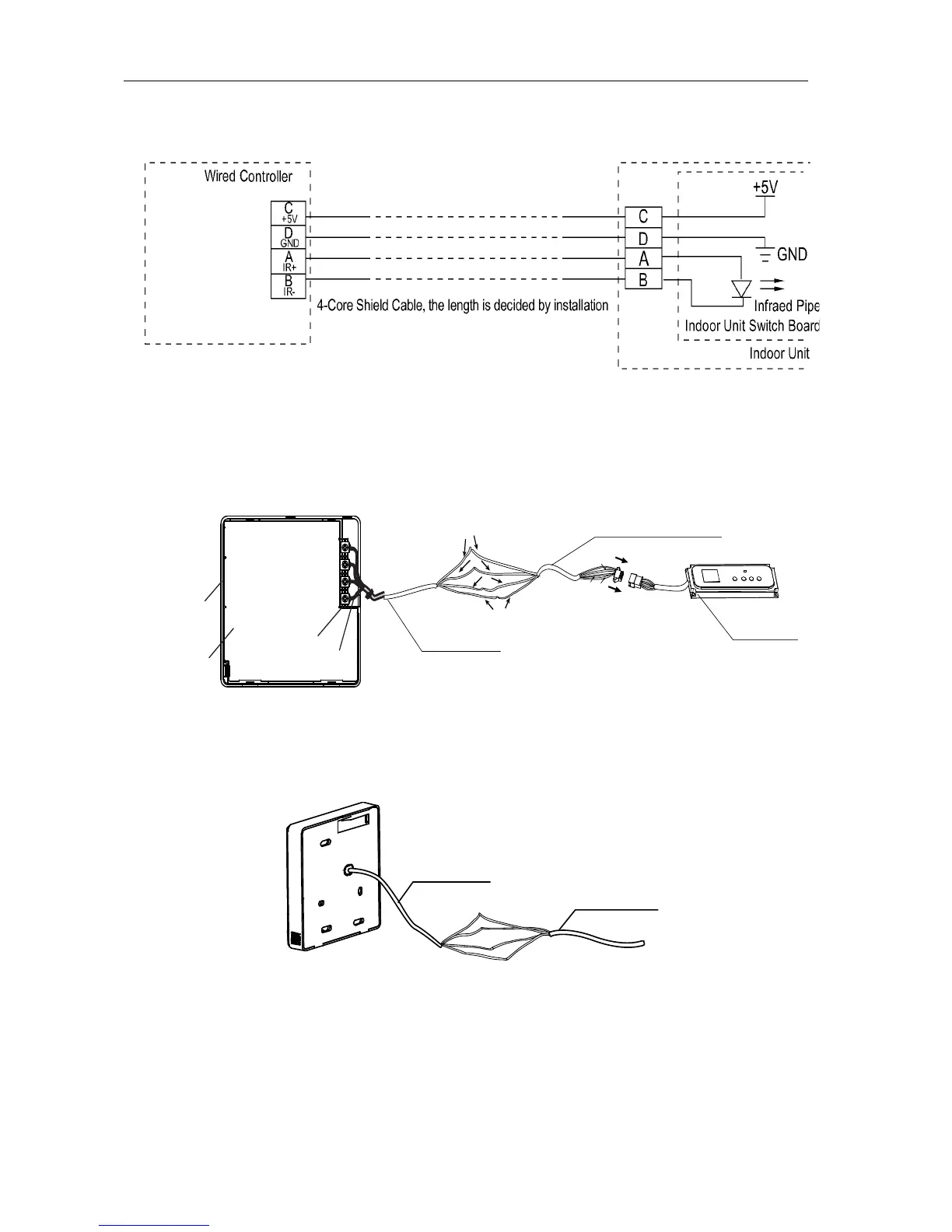

※ Wiring principle sketch:
※ Wiring figure:
1) Connect two terminals of embedded 4-core shielding wire with the switching wires of wired
remote controller and signal receiving board. Make sure the sequence of 4 terminals (A/B/C/D)
should correspond to the wire sequence of signal switching wires (A/B/C/D).
2) If embedded 4-core shielding wire cannot go through the wired controller, it can use signal
switching for connection and make sure the wires are reliable and firm. The tightening torque
range of the screw is0.8~1.2N .m (8~12 kgf . cm).
※ Back cover installation
1) Use straight head screwdriver to insert into the buckling position in the bottom of a wired
controller, and spin the screwdriver to take down the back cover. (Pay attention to spinning
direction, if not you maybe damage the back cover.)
C
D
A
B
C
D
A
B
C
D
A
B
+5V
GND
IR+
IR-
4-core shielding wire embedded in the wall
Attached connecting wires for the signal receiving panel
Signal receiving panel
Front cover
Cont r ol panel
Screw
Signal switching wire
4-core shielding wire
embedded in the wall
Attached connecting wires for
the signal receiving panel
