OPERATION MANUAL KJR-29B/BKE-E
9
4. Installation
※ Preparation before Installation:
Make sure the following pasts has been prepared.
NO.
Name
QTY.
Remarks
1
Wired Controller
1
/
2
Cross round heat wood
Mounting Screw
3
M4×20(For mounting on the wall)
3
Cross round heat
mounting Screw
2
M4×25(For mounting on the electrical switch box)
4
Installation Manual
1
/
5
Owner's Manual
1
/
6
Plastic expansion pipe
3
For mounting on the Wall
7
Plastic screw bar
1
For fixing on the 86 electrician box
8
Switching wires for
signal receiving board
1
For connecting the signal receiving board
and 4-core shielding wire
9
Switching wires for wired
controller signal
1
(If needed) For connecting the main control
panel and 4-core shielding wire
※ Prepare for the following at installation site.
NO.
Name
Qty.(embedded
into wall)
Specification remarks
(only for reference)
Remarks
1
4-core Shield Cable
1
RVVP-0.5 mm
2
×4
0.05 mm
2
×5 cable
no more than 12M
2
86 electrician box
1
/
/
3
Wiring Tube(Insulating
Sleeve and Tightening
Screw)
1
/
/
※ Dimensions:120*120*20mm

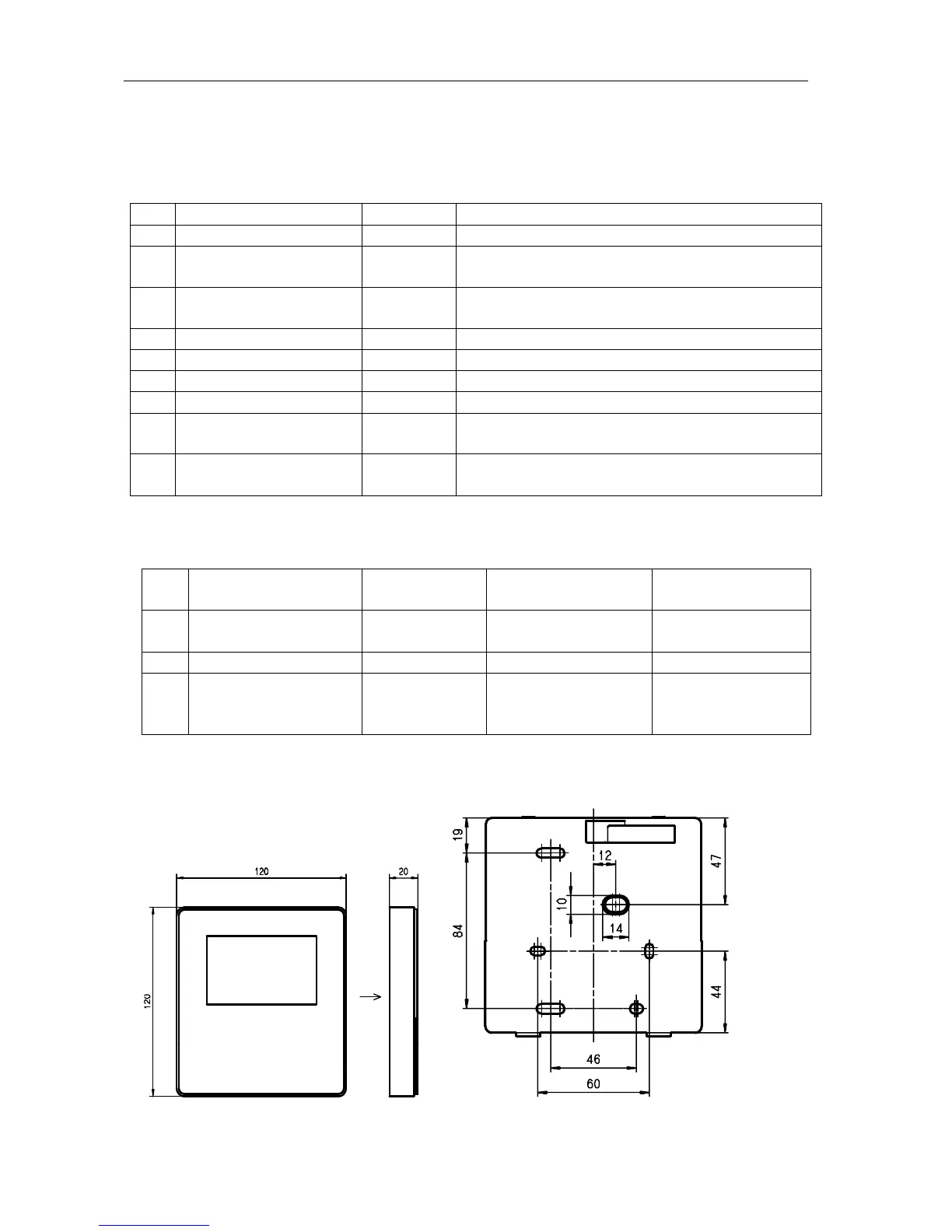

Figure A
