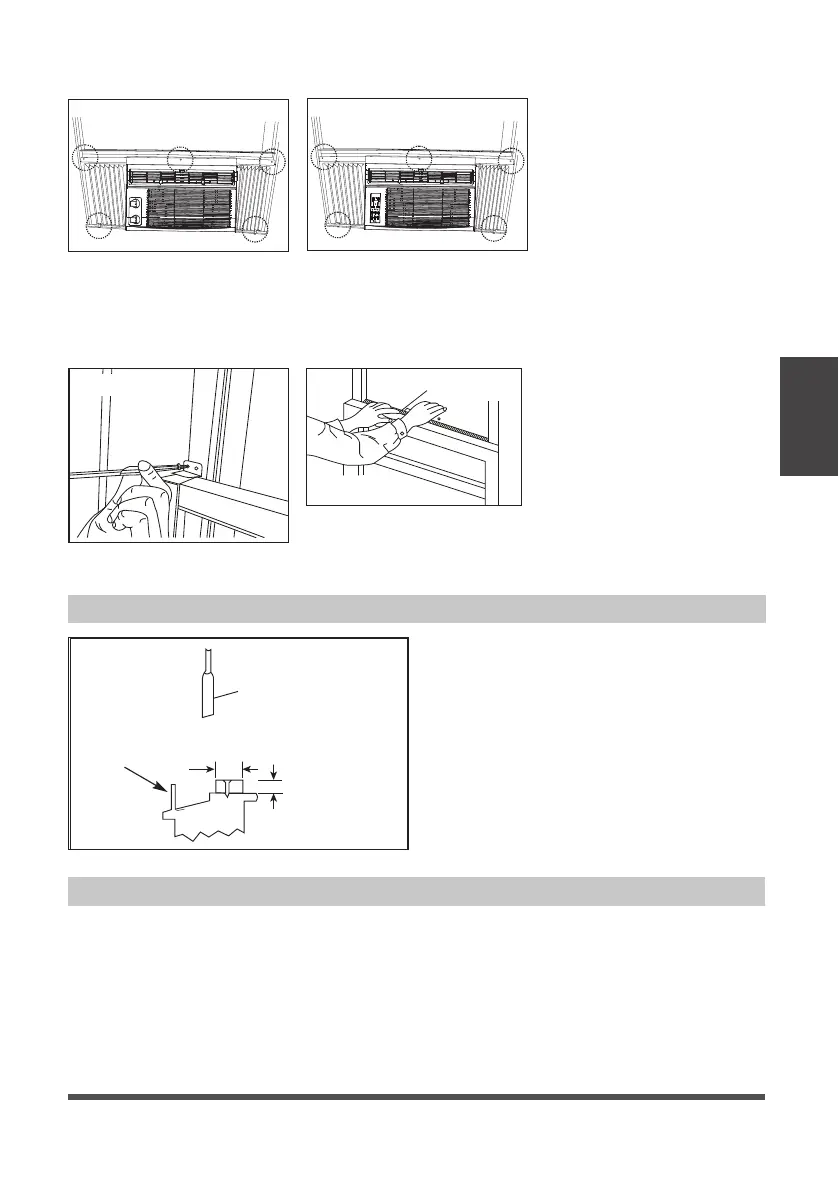

Page 19
Installation
Instructions
Fig. 9
FOAM SEAL
Fig. 10
If AC is Blocked by Storm Window
Add wood as shown in Fig. 11, or remove
storm window before air conditioner is
installed.
If storm window frame must remain,
be sure the drain holes or slots are not
caulked or painted shut. Accumulated
rain water or condensation must be
allowed to drain out.
Fig. 11
SASH
1-1/2"min
(38 mm)
Board thickness
as required, for
proper pitch to rear,
along entire
sill. Fasten with nails
or screws.
Storm window
frame or other
obstruction.
Removing AC From Window
• Turn AC off, and disconnect power cord.
• Remove sash seal from between windows, and unscrew sash lock.
• Remove screws installed through top rail and side panel frames.
• Close (slide) the side panels into the rails.
• Keeping a firm grip on the air conditioner, raise the sash and carefully remove.
• Be careful not to spill any condensate while lifting unit form window. Store parts
WITH air conditioner.
MAW05R/MAW06R Models
Fig. 8C
MAW05M Model
Fig. 8B
B2: For Vinyl-Clad windows:
Drive 1/2” (12.7 mm)
locking screws through
the top rail and into
the window sash (Fig.
8B/8C).
NOTE: Before driving
the screws, drill 5 holes
into the window through
the holes of the top rail
and side panel frames
as shown (Fig. 8B/8C).
C. Secure lower sash in
place by attaching the
sash lock with the 3/4”
(19 mm) or 1/2” (12.7 mm)
screw as shown (Fig. 9).
D. Cut Window sash seal
foam and insert it in
the space between the
upper and lower sashes
(Fig. 10).
