5

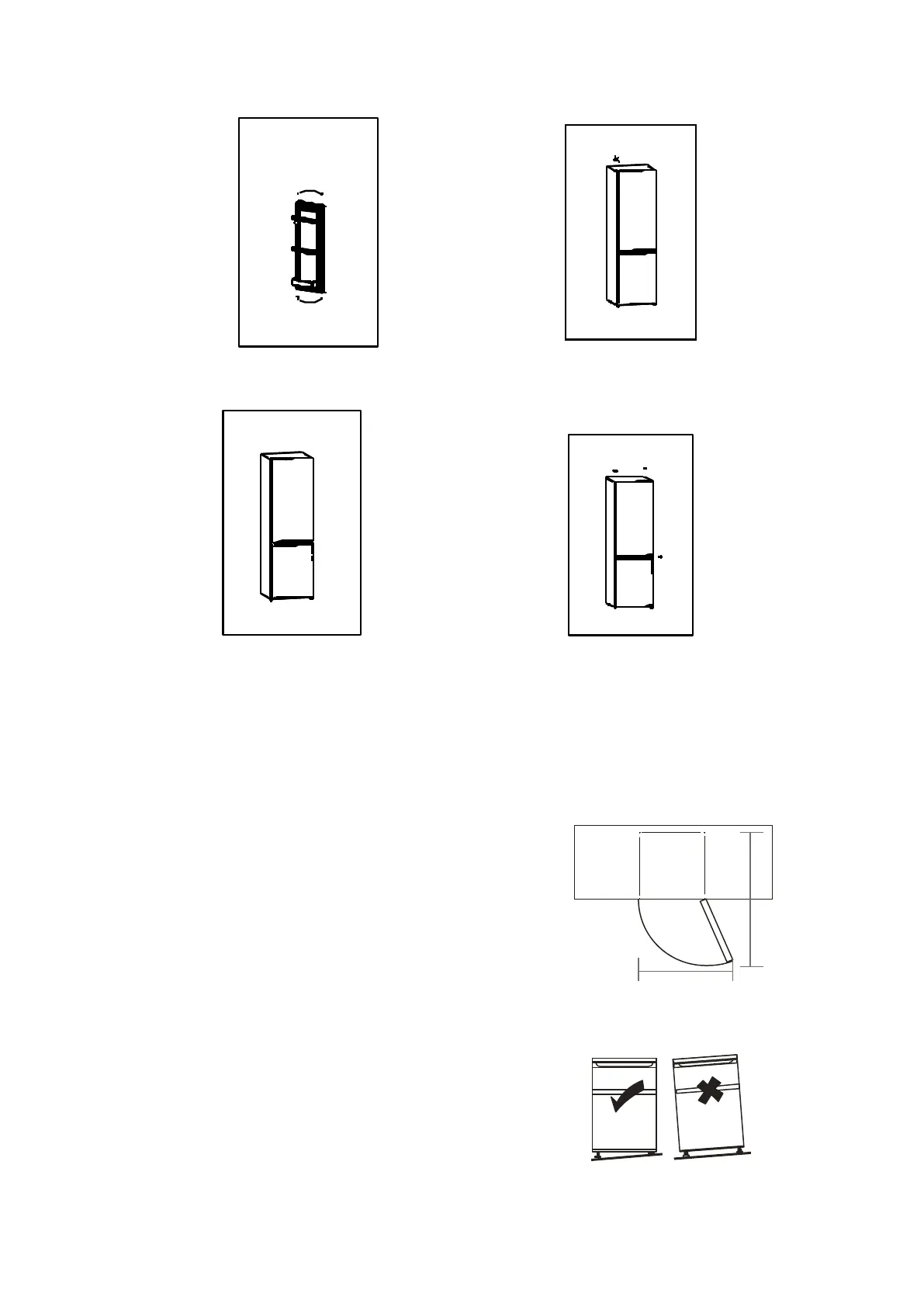

15)Assemble the door of freezing chamber on
the middle hinge
16)Assemble top hinge to the left side of the
cabinet with a screw driver
17)Assemble knuckle guard, top hinge stopple
and middle hinge stopple to the relative
positions on the other side
2.3 Door Space Requirements
The unit's door must be able to open fully as shown.
W×D≥820×1070mm
2.4 Levelling the Unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the door and magnec seal alignments
will not be covered properly.
Make sure that the foot touches the ground before use.
