6. External view and display
6.1 Parts names
This unit consists of indoor unit and outdoor unit.
Note:
All the pictures in this manual are for explanation purpose only. They may be slightl
y different from the air conditioner you purchased(depend on model). The actual sh
ape shall prevail.

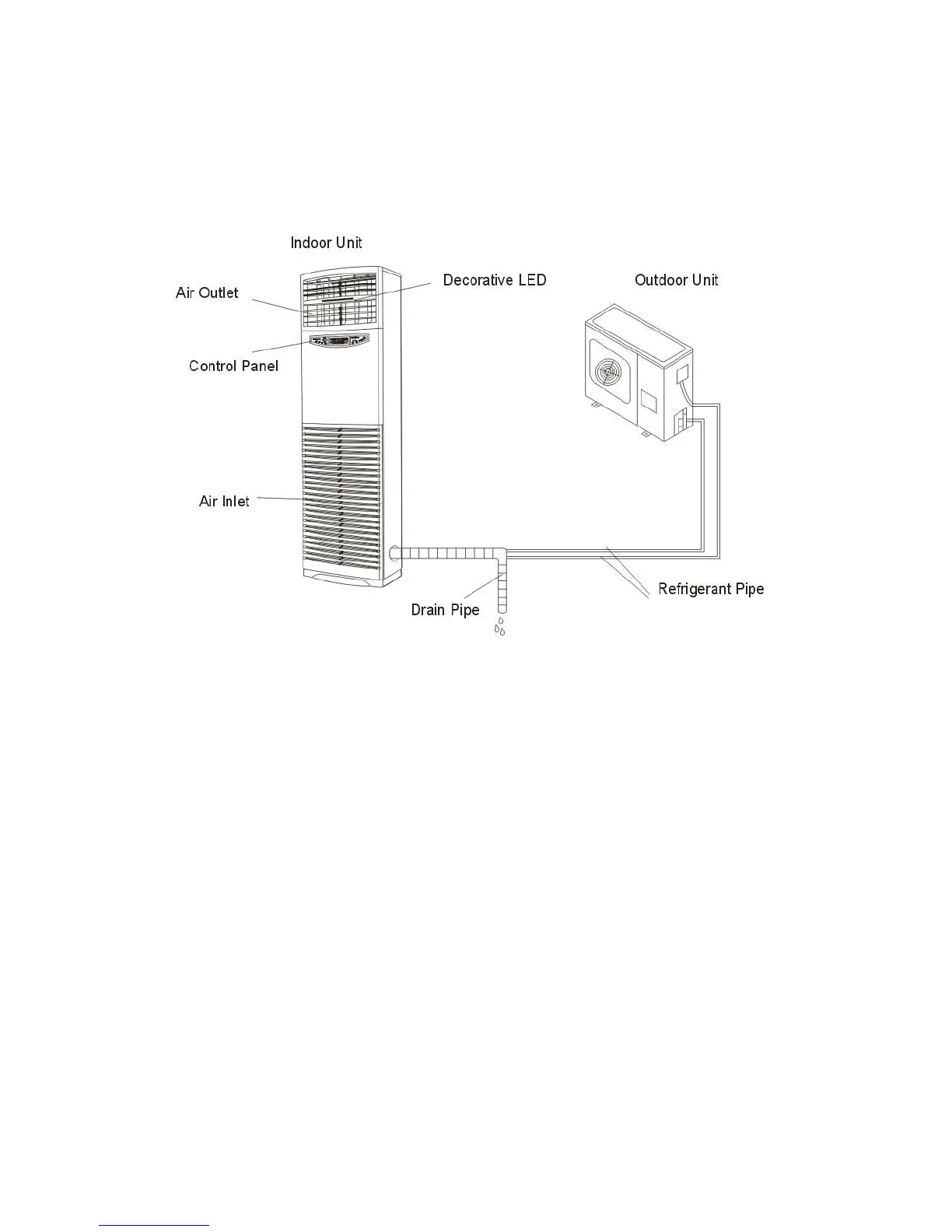

Air Outlet Let the conditioned air go out from it.
Control Panel (inserted) Consists of indicators and control buttons.
Air Inlet Where a filter is settled, absorbing the air in the room
and clean it.
Drain Pipe From which the condensed water is drained.
Refrigerant Pipe In which the refrigerant passes through, connects the
outdoor unit with the indoor unit.
Outdoor(condensing)Unit Consists of compressor, fan motor, heat-exchanger and
other electric parts.
Decorative LED Displays green or red lights according to running
mode.
