R410A
Mini S
plit
Chiller 50Hz
MCAC-A
TSM-
20
14-01
12
7.

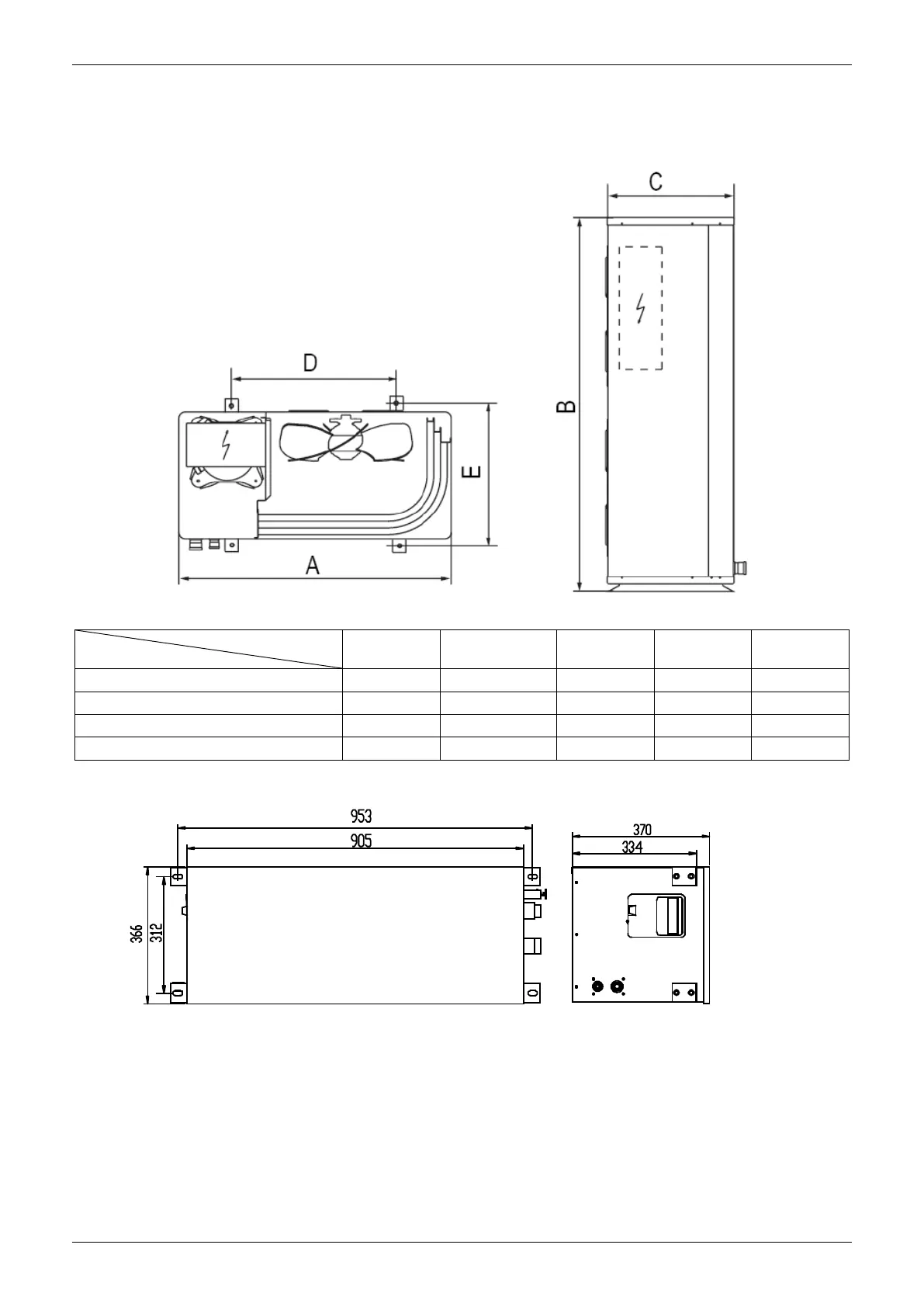

Dimensions
7.1
Out
door unit
Unit: mm
Dimensions
Model
A
B
C
D
E
MGA-D10/N1
990
966
340
624
366
MGA-D12/N1
940
1250
340
600
376
MGA-D14/SN1
940
1250
340
600
376
M
GA
-D16/SN1
940
1250
340
600
376
7.2
W
ater pump b
ox
11
13
