20. Controller
20.1 Standard wired controller: KJRM-120D/BMK-E
20.1.1 Operating instructions of buttons
14
13
3
1
2
4
16
11
15
5
6
7
8
9
10
11
12
○
1 . Operation icon : Indicate the ON and OFF status; when it is ON, it will display; when it is OFF, it
will disappear;
○
2 . Mode area: Indicate the main unit operating mode;
○
3 . Setting temperature: 2 status can be displayed: ;
○
4 .Timing ON/OFF indication : Indicate the timing information;
○
5 .Function icon：
1) Computer: Display when connects to computer;
2) Maintenance: When the icon is lighted on it means should arrange professionals to do the cleaning
maintenance; long press “CONSTRAINT” for 3 seconds then this icon will be off, until the next maintenance;
3) E-heating: Display when the electric auxiliary heating water function is operated;
4) Check: Display when check function is operated;
5) Anti-freezing: Display when the main unit ambient temperature is below 2℃, to remind the main unit
should be do the anti-freezing measurement;
6) Lock: When the icon is lighted on, it means the button has been locked (no keys operation for 2 minutes),
long press “OK” key for 3 seconds to unlock;
7) Error: When the main unit has error or protection, this icon will be displayed. The unit needs to be
maintained by professionals.
○
6 . On-line unit quantity indication: Under normal status display the quantity of the units connected to
the wired controller; under check status display the device serial number;

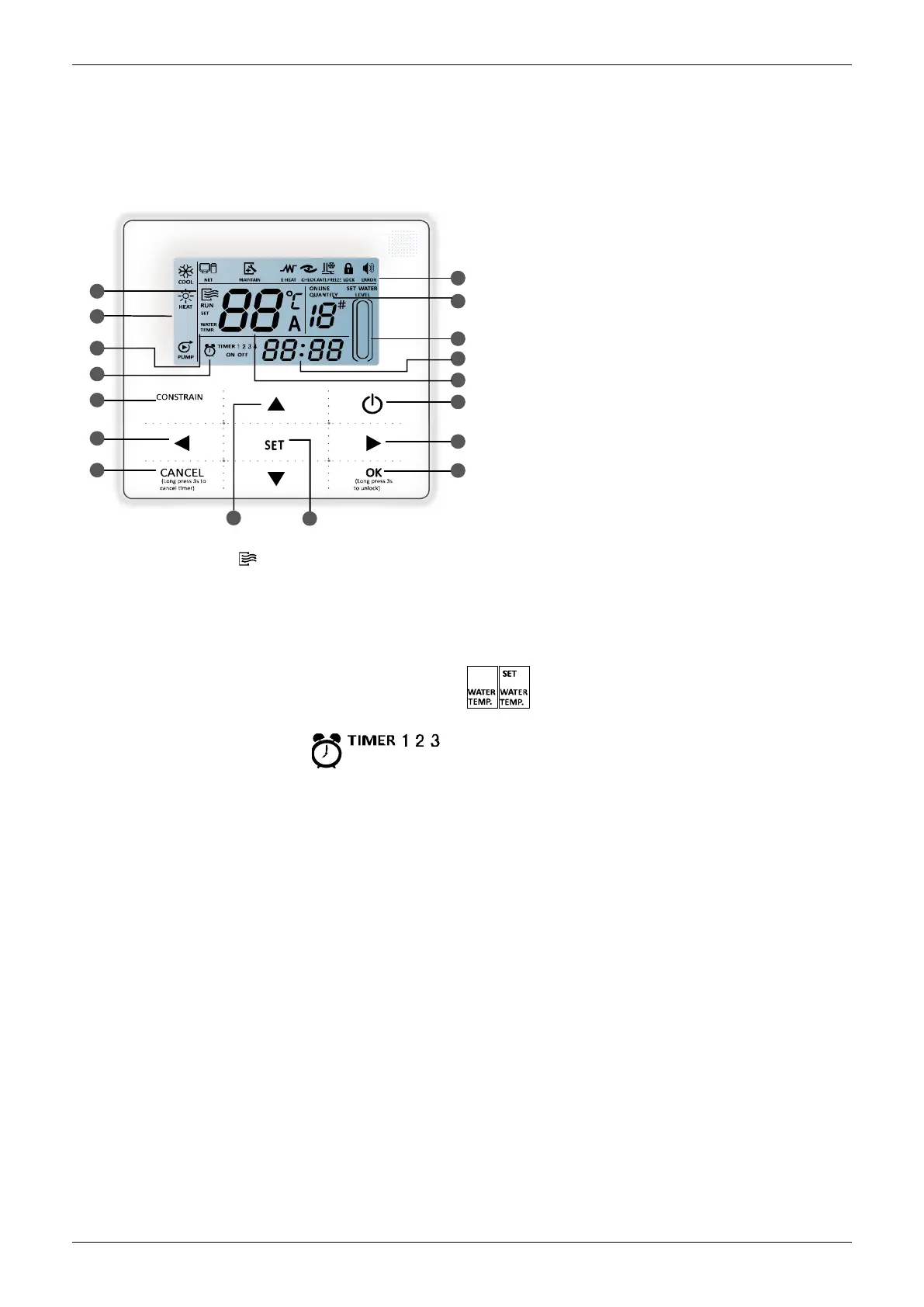

1. Operation icon
2. Mode area
3. Setting temperature
4. Timing On/Off
5. Function icon
6. On-line unit qt y.
7. Reserved
8. Clock
9. Water temp.
10.ON/OFF key
11.Right, Left key
12.OK key
13. Setting key
14. Add, reduce key
15. Cancel key
16. Reserved key
