MCAC-2008-11 Air-cooled Modular Chiller
15

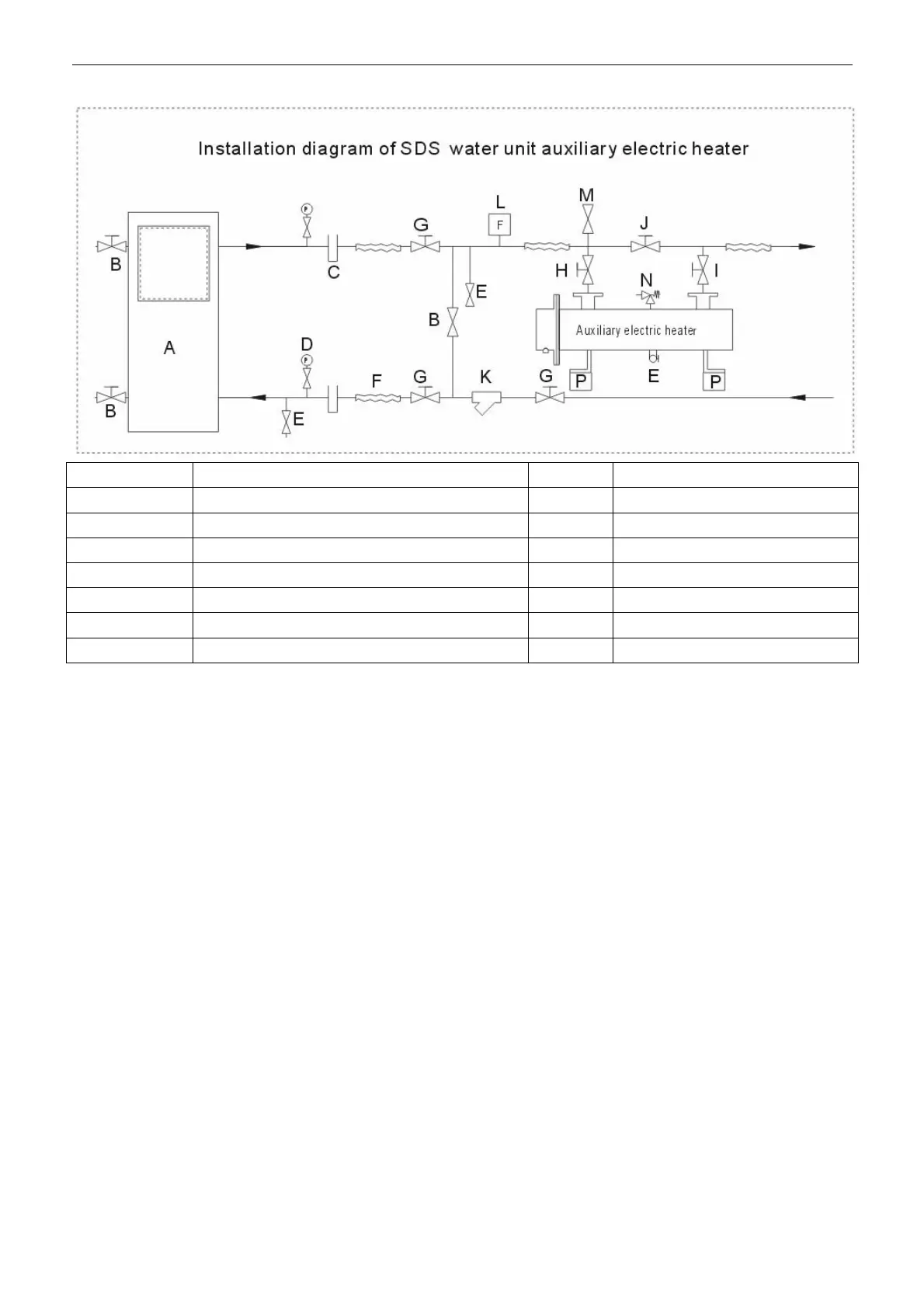

6.6 Sketch drawing of auxiliary electric heater installation
A
Water heater/chiller unit
I
Gate valve 2
B
Back flush valve
J
Gate valve 3
C
Temperature-testing tube
K
Filter
D
Pressure gauge
L
Flow switch
E
Drain valve
M
Exhaust valve
F
Absorbing pipe fittings
N
Safety valve
G
Gate valve
P
Foundation
H
Gate valve 1
